Overview

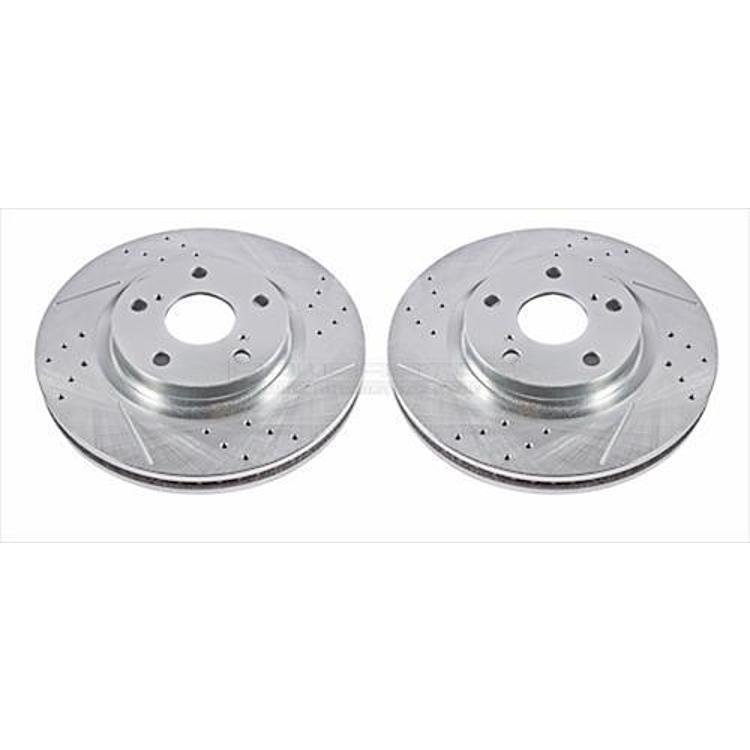

The Power Stop JBR1127XPR is a front slotted and cross-drilled brake rotor for the 2006–2018 Toyota RAV4. The coated finish is meant to resist rust during normal operation, and the slots keep the pad contact patch clear.
It is for owners of the 2006–2018 Toyota RAV4 who want a front rotor with a slotted and cross-drilled face rather than a plain disc.
Owners look at drilled and slotted rotors when they want a surface that clears water and dust more readily than a plain disc.
Key features
- Slotted and cross-drilled front rotor
- Direct fit for the listed vehicles
- G3000 grade cast
- Slots keep a clear contact patch between pad and rotor
- Rotor run-out within 0.0015 and DTV tolerance within 0.005
- Coated rotor
- Rounded slots that sweep water, gas and dust from the pad contact patch
- Silver zinc plated to shield against rust during normal operation
- Cross-drilled holes that Power Stop says keep rotors up to 180°F cooler
Wet and dusty conditions
Drivers of compact crossovers often meet rain, road salt and gravel, all of which build up on the brake surfaces. Slotted faces help clear water and dust from the pad contact area, which can keep braking more predictable in wet weather. Regular cleaning of the wheel area helps the rotor face stay clear.
Rust on a rotor face is common after wet or salty periods and usually disappears after a few firm stops. Heavy rust on the hub, though, can keep the rotor from seating flat. Clean contact surfaces during every pad change, and replace the rotor if it shows cracks, deep grooves or uneven wear.
- Rinse road salt off the wheels periodically
- Clean the hub face before mounting the rotor
- Keep brake fluid away from the friction surface
Specifications
| Brand | Power Stop |
|---|---|
| Part number | JBR1127XPR |
| UPC | 792088557872 |
| Product type | Slotted and cross-drilled disc brake rotor |
| Position | Front |
| Fit type | Direct fit |
| Coating | Rotors coated |
| Casting | G3000 grade cast |
| Plating | Silver zinc |
| Machining | Tru-Cast precision machined |
| Rotor run-out | Within 0.0015 |
| DTV tolerance | Within 0.005 |
| Balance | Mill balanced |
Vehicle fitment
It fits the 2006–2015 and 2017–2018 Toyota RAV4 in Adventure, Base, EV, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, Sport and XLE trims.
Record the old rotor’s diameter, thickness and bolt pattern, then confirm the weight against it.
Only the RAV4 applies, and the 2016 model year falls outside 2006–2015 and 2017–2018. Other Toyota models do not fit this part number. Make sure your year, model and trim are covered before buying.
Installation notes
Keep brake fluid and grease off the rotor surface during installation.
What’s included
The package is a single front brake rotor.
Not included: Nothing besides the rotor is listed, so pads, hardware and tools are separate.
