Overview

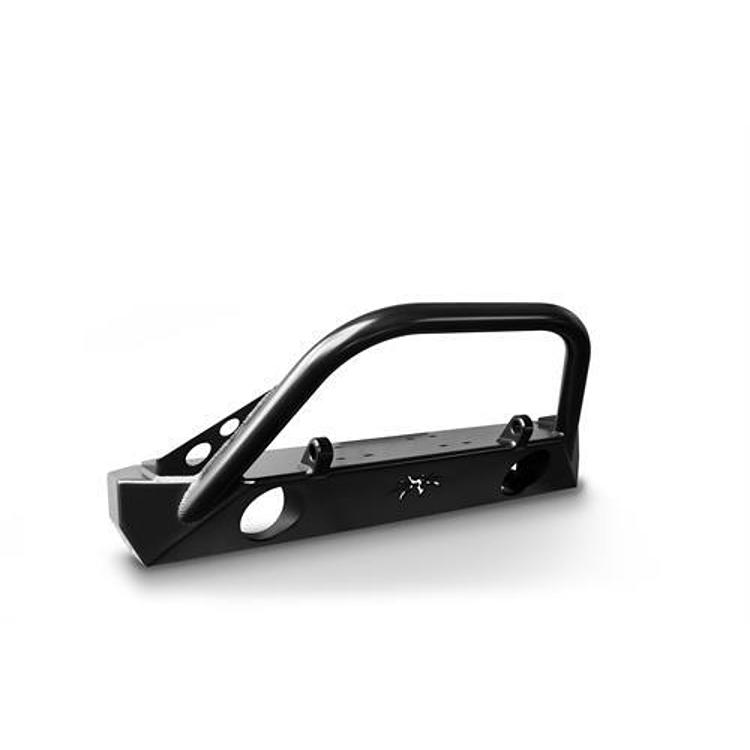

The Poison Spyder PSC17-16-021-DBP1 is a BFH II front bumper with a Brawler Bar for the Jeep Wrangler JK (2007-2018), finished in semi-gloss black SpyderShell Armor Coat. It is a lightweight, high clearance “stubby” design cut from 3/16″ plate steel.
The bumper is just slightly wider than the Jeep’s frame rails and has an integrated winch mount with two bolt patterns: a 10 X 4.5 pattern and a narrower 6 X 4.5 pattern for the Warn 9.0Rc. Recessed fog lamp buckets accept stock fog lamps or Rigid Industries Dually lights with an adapter plate. The stock fog lamps from the Wrangler 10th Anniversary Rubicon do not fit those buckets.
Key features
- Lightweight, high clearance stubby design
- Brawler Bar from 1.5″ X .120 wall DOM tubing with 3/16″ plate steel gussets
- SpyderShell Armor Coat, a 6-stage process ending in a semi-gloss black top coat
- Integrated winch mount with 10″ X 4.5 and 6 X 4.5 bolt patterns
- Recessed light buckets for OE fog lamps or Rigid Dually lights with an adapter plate
- High clearance recovery shackle tabs CNC machined from 1″ thick plate steel
- 5-year warranty on materials and workmanship for the SpyderShell finish
Planning a frame-cut install
Because this bumper requires cutting the frame, the fit depends on careful measuring and a clean cut. Mark the frame, check that the new cut lines are square, and treat any exposed steel before the bumper is bolted in. This is a job where patience and a second set of hands make a difference.
A winch mount is only as good as the frame it bolts to, so choose the winch before fabricating. Compare the winch’s bolt pattern with the 10 X 4.5 or 6 X 4.5 mount, and plan the fairlead position so the cable runs straight to the recovery point.
Recovery shackle tabs carry a lot of load in a pull, so inspect the welds and mounting bolts after each recovery. Lights and wiring should be routed away from the bumper edges where rocks and branches hit.
- Measure and mark the frame before cutting
- Match the winch to the mount bolt pattern
- Inspect shackle tabs and welds after each recovery
Specifications
| Brand | Poison Spyder |
|---|---|
| Part number | PSC17-16-021-DBP1 |
| UPC | 614901764901 |
| Type | BFH II front bumper with Brawler Bar |
| Material | 3/16″ plate steel |
| Finish | SpyderShell Armor Coat, semi-gloss black |
| Brawler Bar tubing | 1.5″ X .120 wall DOM, with 3/16″ gussets |
| Winch patterns | 10″ X 4.5 and 6 X 4.5 |
| Shackle tab stock | 1″ thick plate steel, for 3/4″ shackles |
| Frame | Requires cutting the frame |
Vehicle fitment

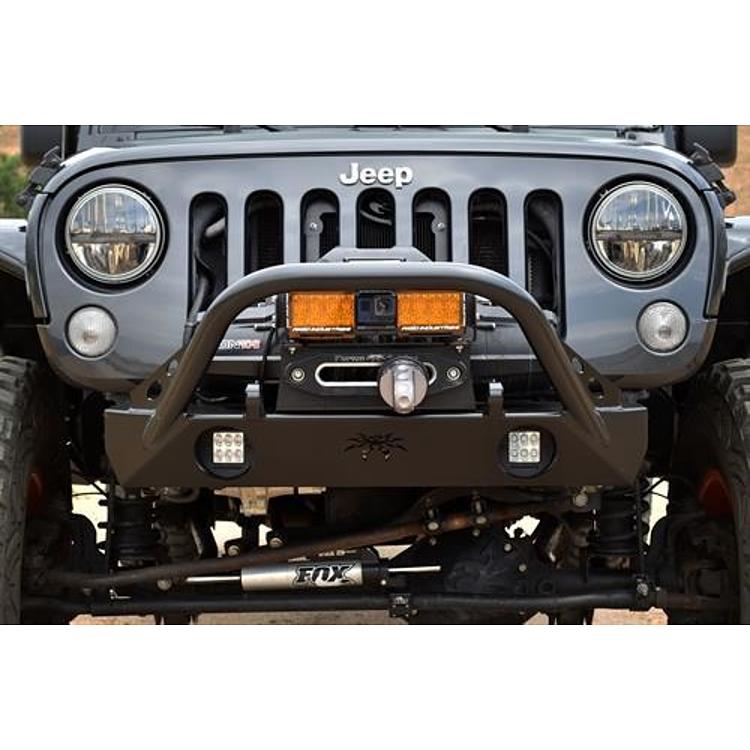

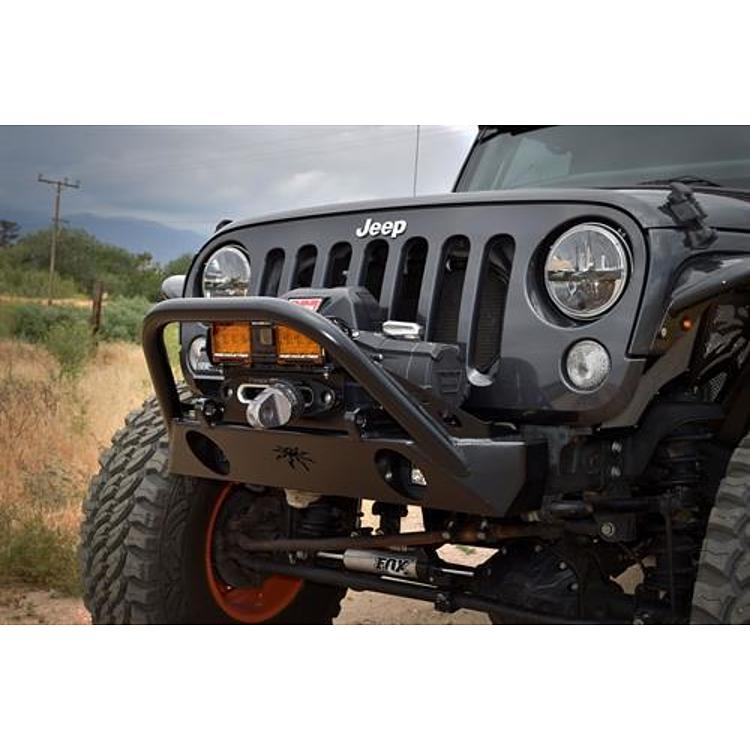

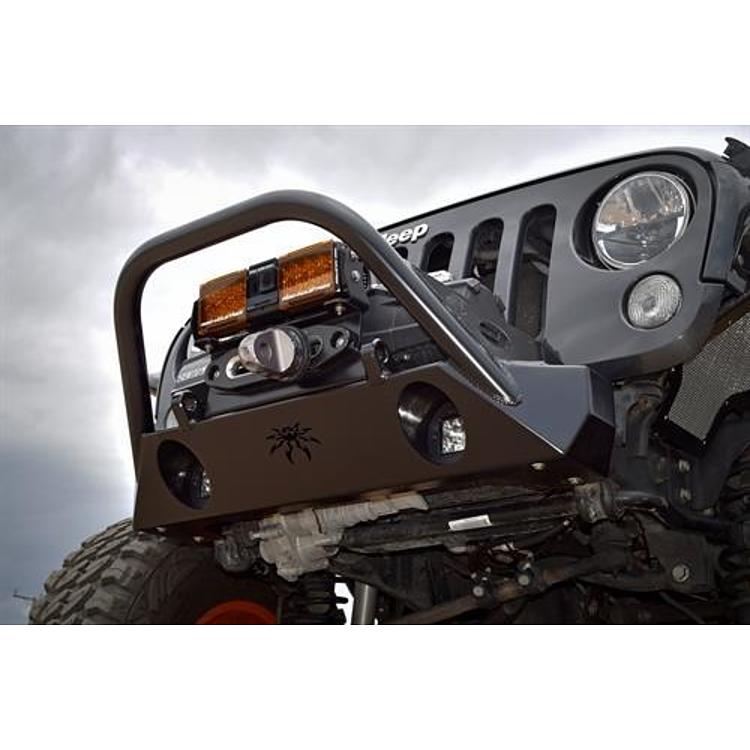

It is a BFH II front bumper with Brawler Bar for the Jeep Wrangler JK, 2007-2018.
The stock fog lamps used on the Wrangler 10th Anniversary Rubicon do not fit the fog lamp buckets. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installing this bumper requires cutting the frame, so it suits someone ready to make that cut. A winch fairlead and fairlead mount are needed separately. The optional JK BFH II Disco Skid protects the factory electric swaybar disconnect motor.
What’s included
- BFH II front bumper with Brawler Bar
- Recovery shackle tabs
- Recessed fog lamp buckets
Not included: a winch, fairlead and fairlead mount, adapter plate for Dually lights, and the optional Disco Skid.
