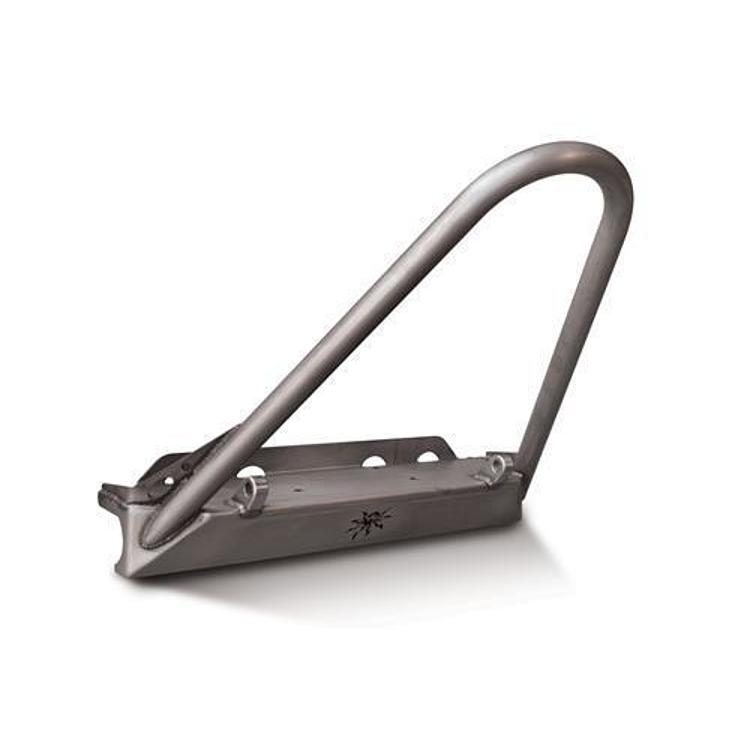

Poison Spyder BFH Front Bumper with Shackle Tabs and Comp Stinger (Bare)- 14-16-020-DC

Poison Spyder Customs

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Poison Spyder BFH front bumper with shackle tabs and Comp Stinger, bare steel, 14-16-020-DC
  • Stinger extends 17.6″ forward and is 21.9″ high
  • One piece of 3/16″ plate steel, no wider than the frame rails
  • Integrated winch mount; shackle tabs from 1″ thick plate

Description

Overview

The Poison Spyder 14-16-020-DC is a BFH front bumper with a Comp Stinger and recovery shackle tabs, in bare 3/16-inch plate steel. The BFH name stands for Built For the Hammers, and the design aims for strong ground clearance, tire clearance and approach angle.

The Comp Stinger suits owners moving into harder off-road use. It improves forward-roll prevention and adds protection for the radiator area and engine compartment in a rollover. It extends 17.6 inches forward from the front edge of the bumper and stands 21.9 inches high above the top surface. The bumper is cut from one piece of plate, has an integrated winch mount and is no wider than the frame rails.

Poison Spyder machines the Recovery Shackle Tabs from 1″ thick plate steel as a secure attachment point for 3/4″ recovery shackles. They are engineered to match the angles of the BFH bumper, which results in zero loss in approach angle, and the bumper is cut from high strength plate and brake-formed for an exact fit.

Key features

  • Cut from a single piece of high strength 3/16″ plate steel
  • Integrated winch mount and one-piece design
  • Comp Stinger for forward-roll prevention and radiator protection
  • Stinger extends 17.6″ forward and is 21.9″ high
  • Angled facets help the bumper slide over rocks
  • Recovery shackle tabs machined from 1″ thick plate steel for 3/4″ shackles

Built for trail protection

A front bumper does more than look aggressive. On the trail it takes the first impact from rocks, stumps and ledges, and it protects the grille, lights and radiator from direct contact. The angle of the bumper face and the height of its lower edge both affect how the vehicle approaches an obstacle, so a bumper that slides over rock is often preferred over one with sharp corners.

Bare steel suits owners who plan to paint or powder coat the bumper to their own spec. Prepare the metal by removing mill scale and oil, then prime it before the topcoat. Mounting a winch and fairlead is a separate job, so plan the wiring and the winch’s weight at the same time as the bumper install.

  • Check the winch and fairlead fit before drilling
  • Inspect the shackle tabs for cracks after hard recoveries
  • Recheck bolts after the first few trail runs

Specifications

Brand Poison Spyder
Part number 14-16-020-DC
UPC 614901725797
Type BFH front bumper with Comp Stinger and shackle tabs
Material 3/16″ plate steel
Finish Bare steel
Width No wider than the frame rails
Stinger projection 17.6″ forward, 21.9″ high
Winch mount Integrated
Shackle tab stock 1″ thick plate steel, for 3/4″ shackles

Vehicle fitment

Confirm the Jeep model, year and trim this bumper is intended for before you order.

Compare the bumper’s mounting points with your frame before installing.

Installation notes

The tabs are engineered to match the bumper’s angles, which Poison Spyder says results in zero loss in approach angle. The bumper is bare steel and needs paint or powder coat, and a winch fairlead is a separate part.

What’s included

  • BFH front bumper with Comp Stinger
  • Recovery shackle tabs

Not included: a winch, a fairlead and paint or powder coat.

SKU: PSC14-16-020-DC Category:

Specification

Shipping weight 47.00 lbs
Package dimensions 35.00 × 34.00 × 12.00 in
brands

Questions & Answers

How big is the Comp Stinger on the 14-16-020-DC?

The Comp Stinger extends 17.6" forward from the front edge of the bumper and is 21.9" high from the bumper's top surface.

What does a Comp Stinger do?

It improves forward-roll prevention and adds protection for the radiator area and engine compartment if the vehicle rolls over. It is built for owners taking on harder trails and more demanding off-road use.

Does the 14-16-020-DC have a winch mount?

Yes. It has an integrated winch mount in a one-piece design. The winch and fairlead are separate items that you add. Plan for both before installing.

Is the 14-16-020-DC bare steel?

Yes. It comes in bare steel, so it needs to be painted or powder coated if you want a finish on it.

How should I care for a bare steel bumper?

Wipe off mud and salt after trail use and touch up any bare spots before rust forms. Once the bumper is painted or powder coated, inspect the finish each season for chips and damage, and repair them promptly.
