Poison Spyder Brawler Mid Front Bumper with D-Ring Mounts (Bare) – 17-63-010-D

Poison Spyder Customs

Shop Jeep Wrangler JK Front Bumpers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Brawler Mid bumper with D-ring mounts for the 2007–2016 Wrangler JK
  • Ends extend to about half the width of the tires
  • Fog lamp buckets and winch gusseting
  • Bare steel, needs paint or powder coat

Description

Overview

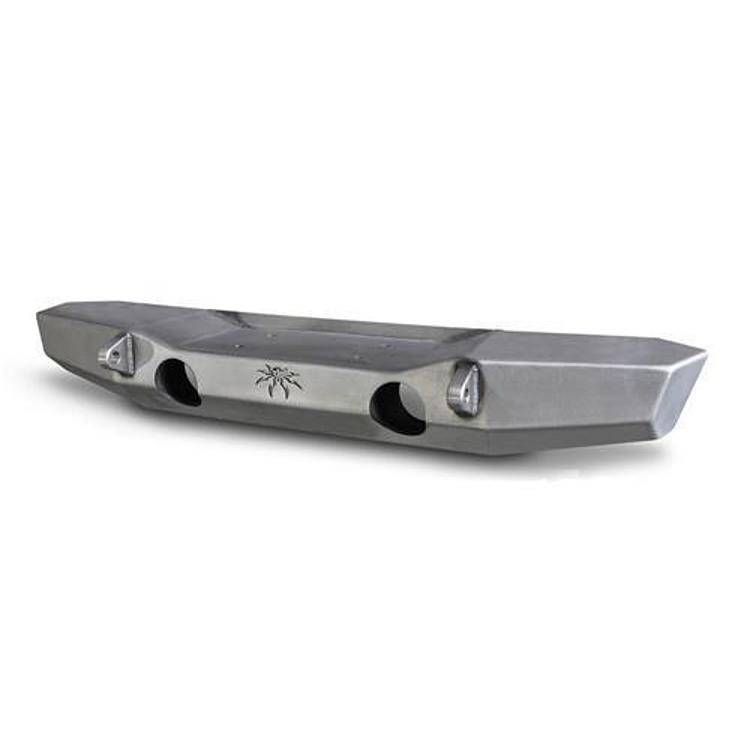

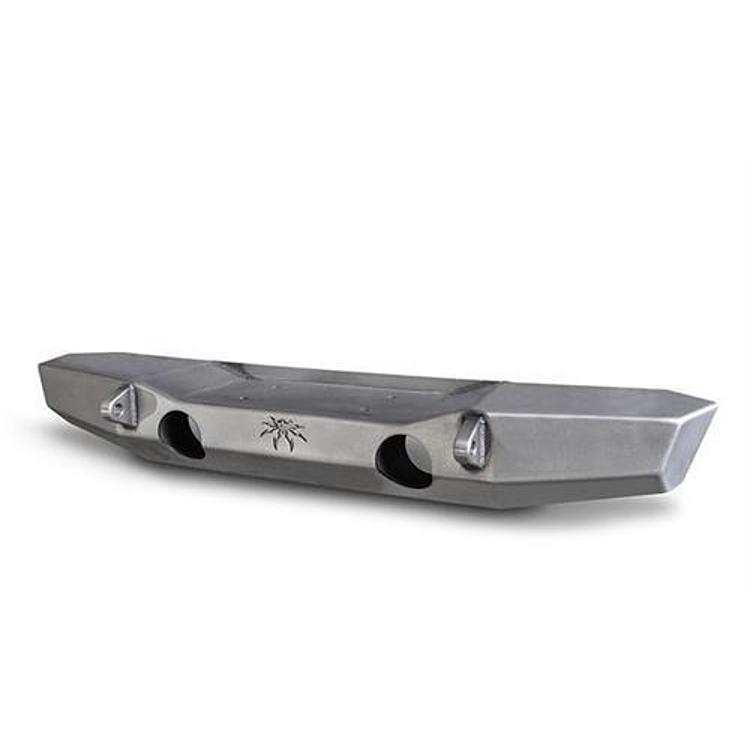

The Poison Spyder Brawler Mid front bumper with D-ring mounts, part number 17-63-010-D, is a bare steel mid-width high clearance bumper for the 2007–2016 Jeep Wrangler JK. Its ends reach roughly half the tire width, wider than the Brawler Lite, which adds brush protection at the grille corners.

Recessed fog lamp buckets of CNC laser cut tubing take the factory fog lamps, and the bumper accepts most Warn winches. D-ring mounts are included, modeled on the high clearance tabs of the BFH series.

The recess and all-steel buckets help protect the factory fog lamps from rocks. The winch sits in a slight depression on top of the bumper, and CNC laser cut plate steel gussets inside the shell sit directly beneath it for strength.

The D-ring tabs are modeled after the high clearance tabs designed for the BFH series bumpers and are angled for maximum approach angle.

The bumper is a mid-width, high clearance design that combines off-road performance with full features, fabricated from CNC laser-cut and precision brake-formed 3/16 inch plate steel.

Key features

  • D-ring mounts for 3/4″ recovery shackles
  • Recessed all-steel fog lamp buckets
  • Designed for most Warn winches and Warn-pattern winches
  • Gusseting under the winch
  • Winch Fairlead Mount sold separately
  • Bare steel

D-ring mounts and recovery gear

D-ring mounts are the connection point for recovery, so they take the full force of a pull. Use shackles rated for the load and keep the recovery line in line with the mount to avoid side loading the tab. Before and after each recovery, look over the tabs, welds and bolts, since a single hard pull can start a crack that grows with each use.

Mounts that have been overloaded often show bending, cracked welds or elongated bolt holes. Paint that flakes around a mount is also a sign that the metal has moved. Keep the pins clean and lightly lubricated so that shackles seat correctly and the mount is not forced into a bad angle during a recovery.

  • Use shackles rated for the load
  • Inspect D-ring tabs for cracks after each recovery
  • Check the mounting bolts after a recovery
  • Keep D-ring pins clean and lubricated

Specifications

Brand Poison Spyder Customs
Part number 17-63-010-D
UPC 614901727395
Product type Front bumper with D-ring mounts
Position Front
Material Steel, 3/16 inch plate
Finish Bare, to be painted or powder coated before installation
Width Mid
D-ring mounts Included, 1 inch thick steel billet, for 3/4 inch recovery shackles
Body styles 2-door and 4-door

Vehicle fitment

It fits the 2007–2016 Jeep Wrangler (JK).

It is not intended for the 2017–2018 JK years or the TJ, LJ and JL Wranglers. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Paint or powder coat the bare steel before final installation. Add the Winch Fairlead Mount separately if you run a winch.

What’s included

  • Brawler Mid front bumper
  • D-ring mounts
  • Recessed fog lamp buckets

Not included: Winch Fairlead Mount, winch, recovery shackles and any coating.

SKU: PSC17-63-010-D Category:

Specification

Shipping weight 92.00 lbs
Package dimensions 58.00 × 21.00 × 15.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201670th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Poison Spyder 17-63-010-D include D-ring mounts?

Yes. The D-ring mounts are included, and the tabs are made to accept Poison Spyder's heavy duty 3/4" Recovery Shackles.

Which winches does the Brawler Mid accept?

It is designed to accept most Warn winches and winches from other makers that follow Warn's standardized mounting dimensions. The winch sits in a slight depression on top.

Is a fairlead mount included with the 17-63-010-D?

No. The Winch Fairlead Mount is sold separately, so owners who skip a winch keep a clean top surface on the 17-63-010-D bumper.

How do I tell if a D-ring mount has been overloaded?

Look for bending, cracked welds, elongated bolt holes or paint that has flaked around the mount. Any of these means the mount should be inspected before further recovery. Replace damaged mounts or hardware rather than straightening them.
