Overview

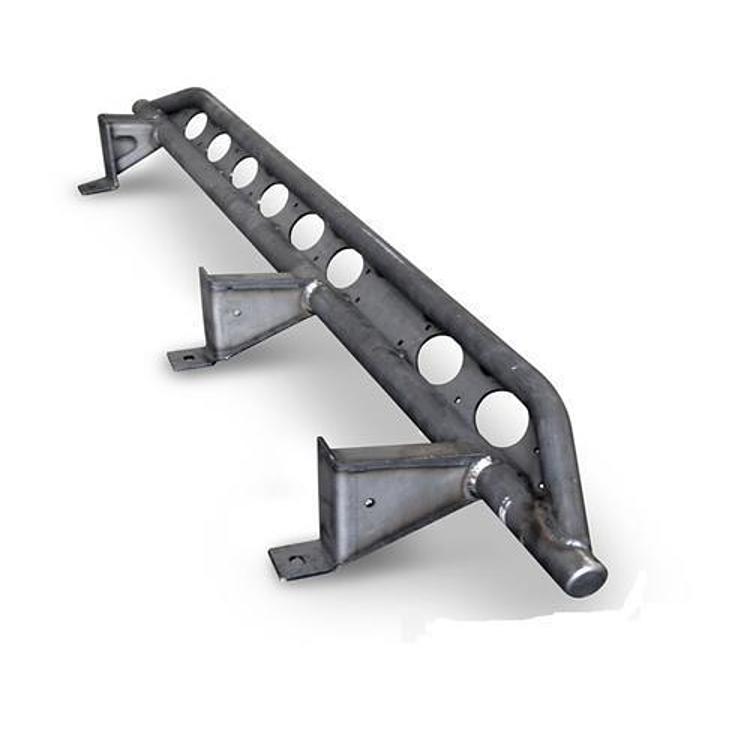

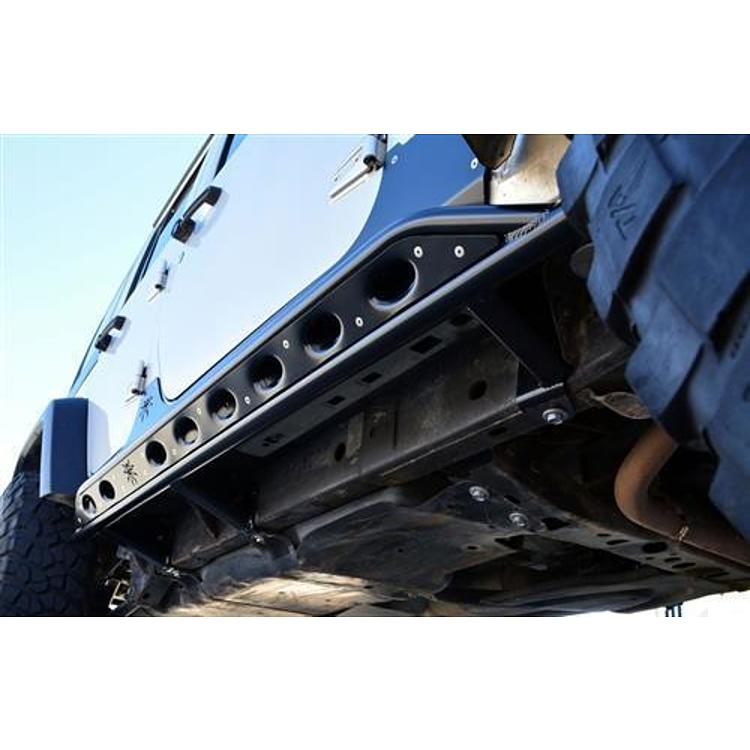

The Poison Spyder Frame-Mounted Rocker Knockers, bare steel, part number 18-08-030, are rocker panel guards with a tubular slider, written for the Jeep JK in 4-door models. The tubular rocker rail is 1.75 inch by .120 wall DOM tubing, and the slider rail is 1.5 inch by .120 wall DOM tubing. The guard attaches to the frame rails rather than the body tub.
The rocker panels are the most exposed part of a JK’s body, and they take hits from underneath and from the sides when the Jeep works through tight obstacles. The Frame-Mounted Rocker Knockers are the same design as Poison Spyder’s body-mounted version, and the choice between them depends on how the Jeep is used.
Key features
- Rocker rail of 1.75 inch by .120 wall DOM structural tubing
- Slider rail of CNC-bent 1.5 inch by .120 wall DOM tubing
- Removable outer slider skid of 1/8 inch steel on a 3/16 inch base plate
- Oval dimples in the skid for strength
- Slider and skid angled away from the body for boatside-style protection

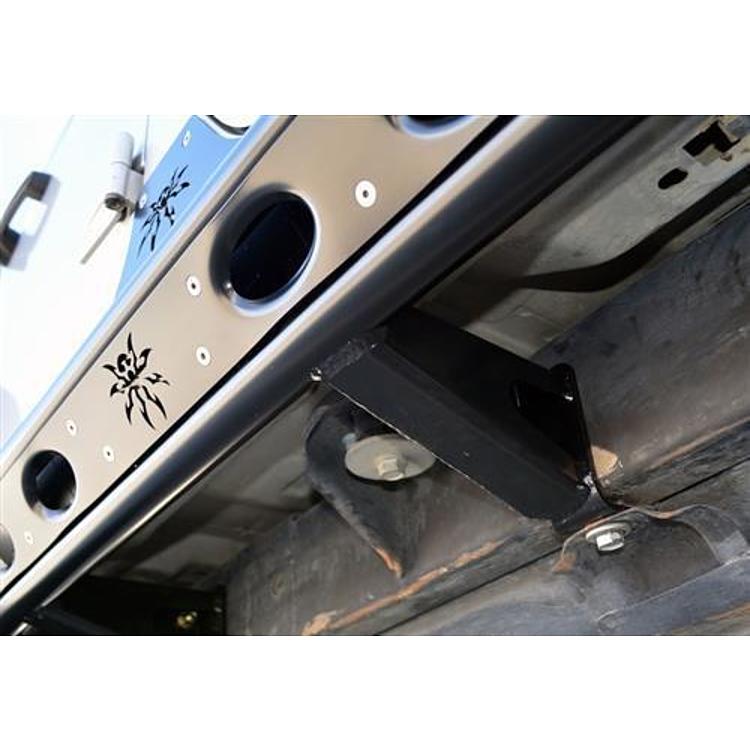

- Three triangular outriggers per side anchor the guard to the frame
Before you buy
Rocker guards take the first contact on rocks and stumps, so the mounting method matters as much as the tube size. Frame-mounted guards load the frame rails through outriggers, which keeps the body tub out of the load path. Before drilling, confirm the frame has clean, straight rails at each outrigger position and that the guard clears the exhaust, brake lines and fuel lines.
Steel tubing with a removable outer skid lets an owner replace the skid after rock contact without replacing the whole guard. Outriggers and bolts should be checked after the first few trail runs, since loose hardware is the most common early problem. A bare steel finish will show surface rust, so a coat of paint or a rust-inhibiting primer is a common step after fitting.
Specifications
| Brand | Poison Spyder Customs |
|---|---|
| Part number | 18-08-030 |
| UPC | 614901727562 |
| Type | Tubular guard with tubular standoff |
| Finish | Bare steel |
| Mounting | Frame-mounted, three outriggers per side |
| Plate thickness | 3/16 inch steel |
| Rocker rail | 1.75 inch by .120 wall DOM tubing |
| Slider rail | 1.5 inch by .120 wall DOM tubing |
| Outer skid | 1/8 inch steel, removable |
| Installation | Cutting or drilling required |
Vehicle fitment
These rocker knockers are written for the Jeep JK in 4-door models. The JK is the Wrangler (JK) from 2007 to 2018, and the guards bolt to the existing mounting holes on the frame. Confirm your Jeep is a 4-door JK before ordering, and check the frame mounting points before drilling.
Confirm your vehicle’s year, model and trim before ordering. The body-mounted version of this guard lifts with a body lift, which the frame-mounted version does not.
Installation notes
The guard bolts on using some of the existing frame holes, but extra holes must be drilled and tapped. Poison Spyder supplies the tap, though the tap handle is not included. Installers can also weld the guard in place. Because the outer skid is harder to reach once the guard is installed, test the skid removal with the guard bolted on before any weld goes in.
What’s included
Frame-mounted rocker knockers with slider, removable outer skid, outriggers, instructions and hardware. The tap handle is not included.
