Overview

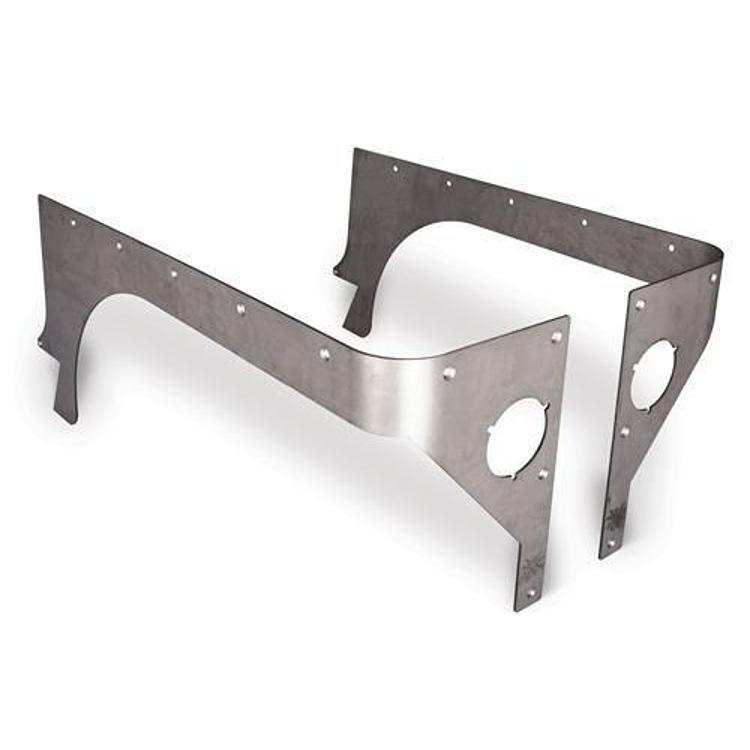

The Poison Spyder 14-04-040-ALUM is a set of comp cut crusher corners in bare aluminum for the 1997–2006 Jeep Wrangler (TJ), in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims. The comp cut shape uses a competition-style wheel opening that Poison Spyder says gives clearance for the largest tires and for articulation.
The wheel well is open toward the rear, which allows for wheelbase stretches and wide clearance for trail wheeling. The corners have provisions for flush-mounted LED taillights. The aluminum comp cut corners are lighter than the standard crusher corners.
The corners are laser cut from high strength 3/16-inch plate aluminum and roll-formed to fit the TJ’s body lines. The bolt holes are countersunk, and the supplied stainless steel flat head cap screws leave a smooth, flat surface that slides over rocks.
Key features
- Competition-style wheel opening for large tires
- Open toward the rear for wheelbase stretches
- Provisions for flush-mounted LED taillights
- 3/16-inch plate aluminum, CNC laser cut
- Countersunk bolt holes with stainless steel flat head cap screws
- Significant weight saving over standard corners
Tire and wheel fit

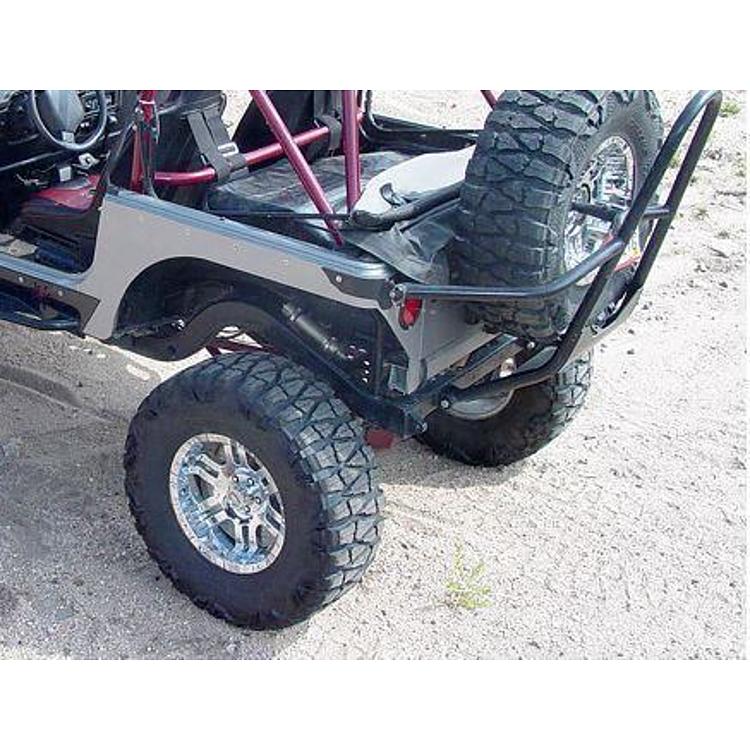

Comp cut corners are shaped to give more room around the rear wheel, which matters once the tires get larger or the suspension is raised. The opening is open toward the rear, so wheelbase changes and rear bumper choices can affect how the corner sits. Plan the wheel and tire setup before drilling so the corner is not trimmed later to clear.
Articulation and tire rub are linked, so test the fit with the Jeep at full steering lock and at full suspension travel. Mark the drill spots only after the corner is set in place. Taillight mounts sit close to the corner, so route any LED wiring before final mounting.
- Test fit at full steering lock
- Check articulation at full travel
- Route taillight wiring before final mounting
Specifications
| Brand | Poison Spyder Customs |
|---|---|
| Part number | 14-04-040-ALUM |
| UPC | 614901725179 |
| Corner type | Full |
| Material | 3/16-inch plate aluminum |
| Hardware | Stainless steel flat head cap screws |
| Finish | Bare aluminum |
| Installation type | Cutting or drilling required |
| Fitment type | Direct fit |
Vehicle fitment
Poison Spyder lists these comp cut aluminum corners as a direct fit for the 1997–2006 Jeep Wrangler (TJ), including the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X models.
The list does not cover the LJ, the JK or the JL. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installation requires cutting or drilling. Check the taillight provisions and the rear wheel opening before drilling. Bare aluminum can be finished or left raw.
What’s included
A set of bare aluminum comp cut crusher corners with stainless steel flat head cap screws.
Not included: the flush-mounted LED taillights, which are sold separately.
