Poison Spyder BFH Front Bumper with Shackle Tabs and Comp Stinger (Bare)- 11-16-020-DC

Poison Spyder Customs

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Poison Spyder BFH front bumper in bare steel with shackle tabs and Comp Stinger
  • 3/16 inch plate steel, no wider than the frame rails
  • Integrated winch mount; D-ring mounts included
  • Light mounts are not included

Description

Overview

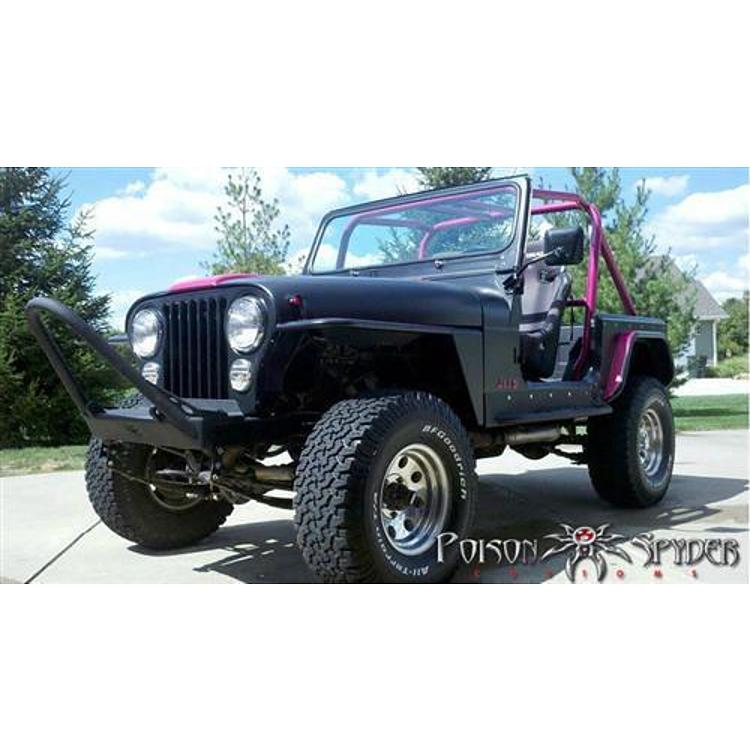

The Poison Spyder 11-16-020-DC is a BFH front bumper in bare steel with recovery shackle tabs and a Comp Stinger. BFH stands for Built For the Hammers, and the bumper is designed for hardcore four-wheelers who want strength, simplicity and function, with a focus on ground clearance, tire clearance and approach angle.

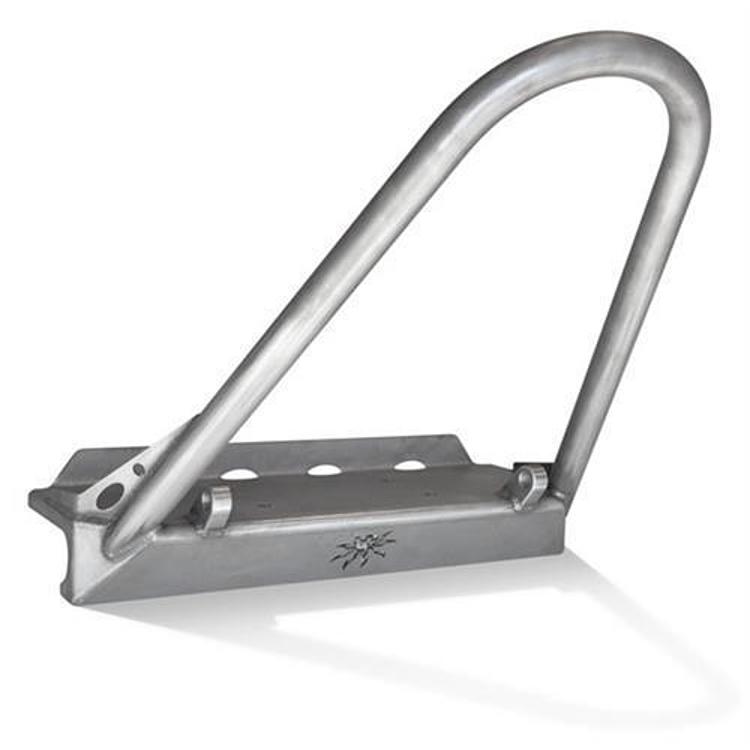

The BFH front bumper is cut by CNC laser from a single piece of 3/16 inch plate steel and brake-formed for an exact fit. It is no wider than the Jeep’s frame rails and has angled facets that help it slide over rocks. The Comp Stinger adds forward-roll prevention and protects the radiator area and engine compartment in a rollover.

Key features

  • Bare steel finish, ready for paint or powder coat
  • CNC laser-cut from a single piece of 3/16 inch plate steel
  • Stubby width, no wider than the frame rails
  • Integrated winch mount in a one-piece design
  • Comp Stinger for forward-roll prevention and radiator protection

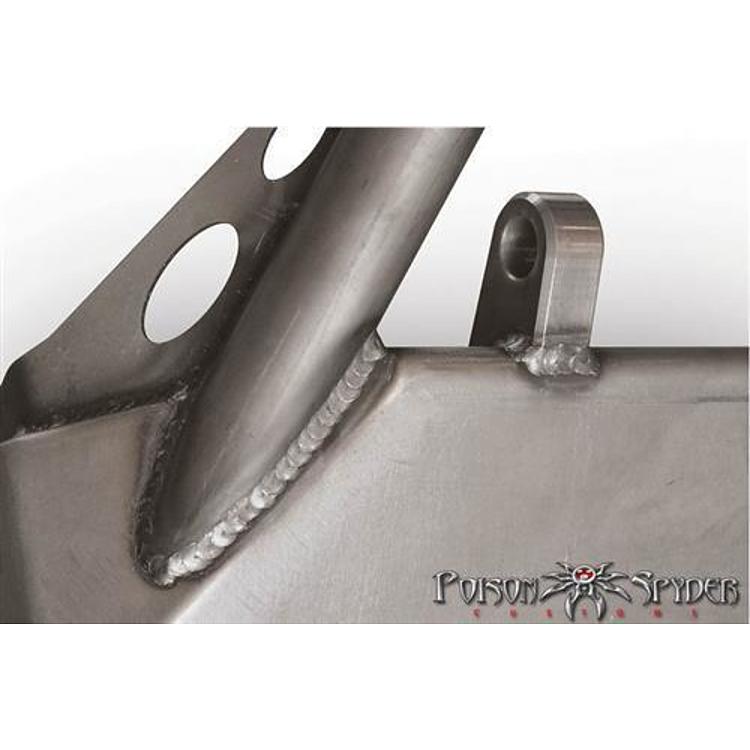

  • Recovery shackle tabs machined from 1 inch thick plate steel for 3/4 inch recovery shackles
  • Shackle tabs matched to the bumper angles for no loss of approach angle
  • D-ring mounts included

Building a recovery setup

A front bumper with shackle tabs and a winch mount is the anchor of a recovery setup, not the whole system. The winch, the line, the recovery shackles and the D-ring mounts all have to match one another. Check that the winch’s mounting plate and line capacity suit the loads you expect, and that every shackle is rated for the tab it attaches to.

Recovery points take shock loads, so inspect the tabs, welds and mounting bolts after heavy use. Look for cracks around the tab base, loose hardware and paint that has chipped from the bare steel. Bare steel rusts quickly in wet or salted conditions, so a coat of paint or powder coat soon after installation is a practical step.

  • Winch sized to the bumper’s winch mount
  • Rated recovery shackles for 3/4 inch shackle tabs
  • Synthetic rope or steel cable matched to the winch drum

Specifications

Brand Poison Spyder Customs
Part number 11-16-020-DC
UPC 614901723564
Product type Front bumper with shackle tabs and Comp Stinger
Position Front
Material Steel
Finish Bare
Plate thickness 3/16 inch
Width Stubby
Winch mount Included
D-ring mount Included
Light mounts Not included
Shackle tab stock 1 inch thick plate steel, for 3/4 inch recovery shackles
Fit type Direct fit

Vehicle fitment

The bumper is no wider than the Jeep’s frame rails. Confirm fit for your vehicle’s year, model and trim before ordering.

Compare the bumper’s width and mounting points with your Jeep’s frame rails before buying.

Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

Bumpers add significant weight to the front of a vehicle, so use a helper or lifting equipment during installation. Tighten all hardware to the torque values for the mounting points and use every fastener included.

Re-check the mounting bolts after the first miles of driving. Confirm clearance around sensors, lighting and the winch or recovery equipment you plan to use, and check local regulations on bumper height and lighting.

The Comp Stinger’s forward reach and height vary between measurements, so check a drawing or measure your setup if clearance matters.

What’s included

  • BFH front bumper in bare steel
  • Recovery shackle tabs
  • Comp Stinger
  • Integrated winch mount
  • D-ring mount

Not included: Light mounts are not included. Plan for a winch, shackles and finishing materials separately.

SKU: PSC11-16-020-DC Category:

Specification

Shipping weight 45.00 lbs
Package dimensions 35.00 × 30.00 × 13.00 in
brands

Questions & Answers

What is the Poison Spyder 11-16-020-DC?

The 11-16-020-DC is a BFH front bumper in bare steel with recovery shackle tabs and a Comp Stinger from Poison Spyder Customs. It is made from 3/16 inch plate steel.

Does the BFH bumper have a winch mount?

Yes. The bumper has an integrated winch mount in a one-piece design. A winch is not included, so it must be supplied separately.

Are light mounts included with the 11-16-020-DC?

No. Light mounts are not included with the bumper. D-ring mounts are included, and the bumper comes in a bare steel finish that is ready for paint or powder coat.

What are the shackle tabs made of?

The recovery shackle tabs are machined from 1 inch thick plate steel and are made to hold 3/4 inch recovery shackles. They are matched to the bumper angles, so there is no loss of approach angle.

How should I maintain a bare steel bumper?

Wash off mud and road salt regularly and touch up any bare spots before they spread rust. Once painted or powder coated, check the finish each season for chips. Re-check the mounting bolts after the first few trail runs and periodically after that.
