Oracle Lighting H7 – V-Series LED Headlight Bulb Conversion Kit – V5232-001

Oracle Lighting

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Oracle Lighting H7 V-Series LED headlight bulb conversion kit, part number ORCV5232-001
  • Universal fit; the H7 base in your headlight is the fit check
  • Integrated constant current LED driver, 6V to 24V input, up to 1 Amp output
  • SmartDrive thermal regulation paired with thermal foldback

Description

Overview

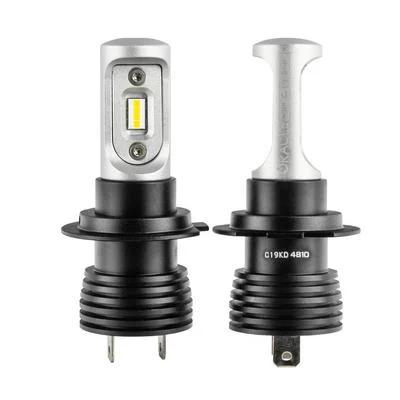

The Oracle Lighting H7 V-Series LED Headlight Bulb Conversion Kit, part number ORCV5232-001, is an LED headlight bulb with an H7 base. It is universal fit: no vehicle year, make or model is attached, so the H7 base in your headlight is the thing to check first.

Oracle’s V-Series design uses SmartDrive Active Thermal Regulation (ATR) to manage heat within the bulb. A constant current linear LED driver is integrated into the bulb body, with a 6V to 24V input and up to 1 Amp of constant current output. Above the bulb’s optimal working temperature, the driver steps current down through PWM duty cycle control, a behavior Oracle calls thermal foldback, and holds the reduction only until temperature stabilizes.

Oracle’s reasoning is that active thermal control lets the package stay small, while passive measures alone would shorten LED lifetime. The company argues that the luminosity drop caused by foldback is kept below what a typical viewer can detect, given how poorly the human eye tracks small changes in high-brightness lights.

Key features

  • SmartDrive ATR temperature management
  • Integrated constant current linear LED driver
  • 6V to 24V input range
  • Up to 1 Amp constant current output
  • Thermal foldback through PWM duty cycle
  • Small bulb package balanced by passive and active thermal control
  • H7 bulb base type

Heat, brightness and bulb life

LED headlight bulbs depend on heat management more than halogen bulbs do. The LED chips produce little radiant heat, but the driver electronics and chip junction still need a path to shed warmth. Inside a compact bulb body that path is limited, so active control helps keep the bulb within its working range. A bulb that runs hot for long periods can lose output or wear out sooner than expected.

Current limiting and temperature-based step-down protect the chips and driver when conditions get hot, and the change is usually gradual enough that most drivers never notice it at night. Keeping the headlight housing clean and the vents clear lets the bulb shed heat naturally between drives. Replacing both sides at the same time keeps output and color even across the beam.

  • Check the socket and bulb base for corrosion before each install
  • Let the bulb cool before handling it after a long drive
  • Watch for flicker or a beam that changes brightness as an early warning

Specifications

Brand Oracle Lighting
Part number ORCV5232-001
Bulb base type H7
Product type LED headlight bulb conversion kit, V-Series
Driver input 6V to 24V
Driver output Constant current, up to 1 Amp
Thermal management SmartDrive Active Thermal Regulation (ATR)
Fitment Universal fit

Vehicle fitment

This H7 V-Series kit is classed as universal fit, so Oracle Lighting does not assign it to specific vehicles. The H7 base and headlight housing are the match points.

H7 is one of several base types in the V-Series line; a 9006, H1 or H11 bulb is a different part number. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Once the H7 bulb is seated, reassemble the headlight and recheck aim. Local road-use lighting regulations vary, so confirm the setup is legal where the vehicle is driven.

What’s included

The kit is an H7 LED headlight bulb conversion kit. Check the package contents against your installation before starting.

Not included: The driver is built into the bulb body. Check the package contents against your installation before starting.

Questions & Answers

Is the V5232-001 a universal fit H7 bulb?

Yes. It is a universal fit kit, so no specific vehicle is assigned. The H7 base is the connection to match in your headlight. Confirm the socket accepts an H7 bulb before installing, since fit is decided by the base and housing.

Does the bulb have a built-in driver?

Yes. It has an integrated constant current linear LED driver that accepts 6V to 24V and provides up to 1 Amp of constant current output. Heat is managed by SmartDrive ATR and thermal foldback.

What does SmartDrive ATR do?

SmartDrive Active Thermal Regulation is Oracle's temperature management for these bulbs. It works with passive heat handling so the bulb can stay compact, and the driver lowers current through PWM duty cycle changes when the bulb runs hot.

How can I tell if the bulb is overheating?

Dimming, flickering or a beam that changes brightness over time can point to heat trouble. Make sure the bulb is seated fully and that the housing vents are clear. If the problem continues after the bulb has cooled, inspect the bulb base and socket for damage before reusing it.
