Oracle Lighting 9005 – V-Series LED Headlight Bulb Conversion Kit – V5239-001

Oracle Lighting

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Oracle Lighting 9005 V-Series LED headlight bulb conversion kit, part number V5239-001
  • Built-in constant current driver with 6V to 24V input and up to 1 Amp output
  • SmartDrive Active Thermal Regulation with thermal foldback to manage heat
  • Universal fit with a 9005 base type

Description

Overview

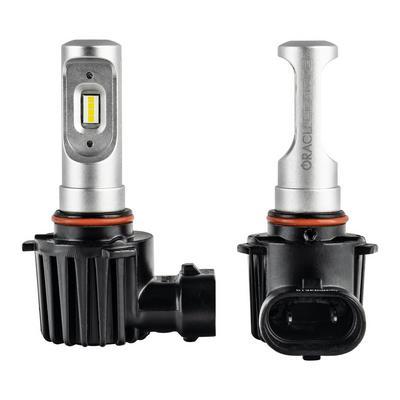

The Oracle Lighting 9005 V-Series LED headlight bulb conversion kit, part number V5239-001, is a 9005 base LED bulb with an integrated constant current driver. It is a universal-fit kit, not built for one vehicle, so confirm that your headlight housing takes a 9005 bulb before installing.

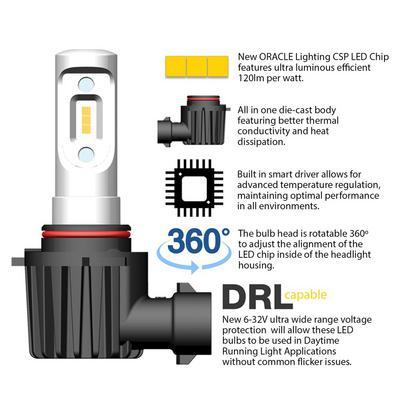

The V-Series design relies on SmartDrive Active Thermal Regulation (ATR) to manage heat. A linear LED driver sits inside the bulb and accepts a 6V to 24V input, delivering constant current at up to 1 Amp. When the bulb runs past its optimal working temperature, the driver lowers current by changing the PWM duty cycle until the temperature stabilizes.

This process is called thermal foldback. It protects the LEDs and bulb components while keeping a compact package, and the drop in brightness is small enough to fall below what a person can detect. Active management of this kind lets the LED keep a long life in a small bulb.

Key features

  • SmartDrive Active Thermal Regulation (ATR) temperature management
  • Thermal foldback reduces current when the bulb runs hot
  • Integrated constant current linear LED driver inside the bulb
  • Driver input range of 6V to 24V
  • Constant current output up to 1 Amp
  • Compact bulb package with a 9005 base

Heat and headlight life

LED headlights make heat at the bulb base rather than the glowing tip, so the way heat leaves the housing matters. A bulb with built-in thermal management is designed to run within a set temperature range, but a headlight housing that traps heat, has damaged seals or is covered in grime can still push the bulb past that range. Keep the rear of the headlight clean and dry, and check the seal where the cover meets the housing.

Because the driver sits inside the bulb, dimming during a hot period is normal behavior rather than a fault on its own. A bulb that keeps dimming in cool conditions, flickers or stops should be checked for a poor connection at the base or a failing driver.

  • Check the headlight seal and housing for moisture
  • Keep the base connector clean and fully seated
  • Replace a bulb that flickers in cool conditions
  • Allow a hot bulb to cool before handling

Specifications

Brand Oracle Lighting
Part number V5239-001
Product type V-Series LED headlight bulb conversion kit
Bulb base type 9005
Driver input 6V to 24V
Driver output Constant current, up to 1 Amp
Thermal management SmartDrive Active Thermal Regulation (ATR), thermal foldback
Fitment Universal Fit

Vehicle fitment

This kit is a universal-fit part, so it is not built for one vehicle. The 9005 base is the deciding factor, so check your headlight socket before installing.

Confirm your vehicle’s year, model and trim before ordering. A universal listing does not replace a check of the socket type.

Installation notes

Because the driver is built into the bulb, the thermal behavior described above happens inside the bulb itself. A bulb that has been running hot will dim slightly as the driver backs off current, so allow it to cool before handling.

Turn the headlights off and let the housing cool before removing the old bulb.

What’s included

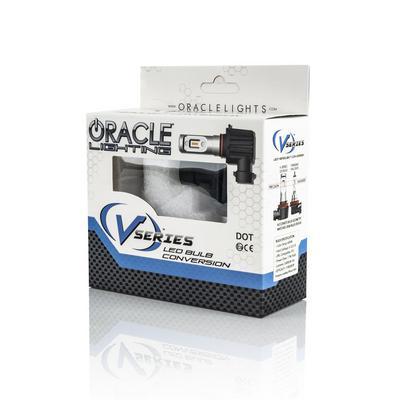

The kit is a single V-Series bulb with an integrated driver.

Questions & Answers

Will the Oracle 9005 V-Series kit fit my headlights?

It is a universal-fit kit with no specific vehicle year, make or model. It uses a 9005 base, so check that your headlight housing takes a 9005 bulb and confirm your vehicle's year, model and trim before ordering.

What does the built-in driver do?

The integrated constant current driver accepts 6V to 24V and outputs up to 1 Amp. If the bulb gets too hot, it lowers current through PWM duty cycle control until the temperature stabilizes.

What is thermal foldback?

Thermal foldback is the name for reducing LED current when the bulb passes its best working temperature. The dimming that results stays below what a person can detect, and it protects the LEDs and bulb components.

Does thermal foldback mean the headlight is faulty?

No. Foldback is a normal response when the bulb runs hotter than its best operating temperature. A bulb that dims in cool conditions, flickers or stops working should be checked for a poor base connection or driver fault.
