Oracle Lighting 9006 – V-Series LED Headlight Bulb Conversion Kit – V5240-001

Oracle Lighting

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Oracle Lighting 9006 V-Series LED headlight bulb conversion kit, part number ORCV5240-001
  • Universal fit, matched by the 9006 bulb base rather than a vehicle list
  • Integrated constant current LED driver, 6V to 24V input, up to 1 Amp output
  • SmartDrive Active Thermal Regulation with thermal foldback for temperature control

Description

Overview

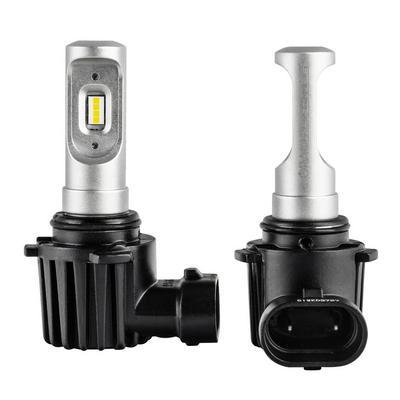

The Oracle Lighting 9006 V-Series LED Headlight Bulb Conversion Kit, part number ORCV5240-001, is an LED replacement headlight bulb with a 9006 bulb base. It is universal fit and is not assigned to particular vehicles, so matching the 9006 base to your headlight housing is the main compatibility check.

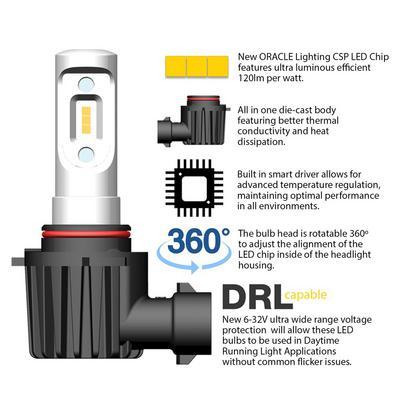

Oracle builds its V-Series bulbs around SmartDrive Active Thermal Regulation (ATR), its name for temperature management inside the bulb. An integrated constant current linear LED driver sits within the bulb body, accepts a 6V to 24V input and delivers constant current output at up to 1 Amp. When the bulb runs hotter than its optimal working temperature, the driver reduces current by changing the PWM duty cycle until the temperature levels off. This behavior is called thermal foldback, and it protects both the LEDs and the other bulb components.

Active control allows the bulb to keep a very small package without heat shortening LED life. The current reduction is small, so the drop in brightness stays below what most people would notice, since the eye is poor at spotting small luminosity changes in high-brightness lights.

Key features

  • SmartDrive Active Thermal Regulation (ATR) temperature management built into the bulb
  • Integrated constant current linear LED driver operating from a 6V to 24V input
  • Constant current output of up to 1 Amp
  • Thermal foldback lowers current through PWM duty cycle changes when the bulb runs hot
  • Compact bulb package that relies on active plus passive thermal management
  • 9006 bulb base type

Choosing headlight bulb fit

A conversion bulb puts LEDs into a space that was built around a halogen filament, so heat has to go somewhere. Before buying, look at how the housing vents air and whether the bulb body sits clear of the reflector and any dust cover. A bulb that seats on the base but crowds the housing can stop the cover from closing and trap heat around the driver.

Thermal foldback can make the beam dim slightly in hot conditions, such as a warm engine bay or a long run with the lights on. This is protective behavior, not a sign of a fault. If the light is weaker only when cold, the cause is more likely the lens or reflector than the bulb, so inspect those before replacing anything.

  • Seat the bulb base fully before closing the housing
  • Keep the dust cover sealed to limit moisture
  • Inspect the lens for clouding, which cuts light output
  • Recheck beam aim after the first few drives

Specifications

Brand Oracle Lighting
Part number ORCV5240-001
Bulb base type 9006
Product type LED headlight bulb conversion kit, V-Series
Driver input 6V to 24V
Driver output Constant current, up to 1 Amp
Thermal management SmartDrive Active Thermal Regulation (ATR)
Fitment Universal fit

Vehicle fitment

It is universal fit, so it is not tied to a specific year, make or model. Fit is decided by the 9006 bulb base and the headlight housing it goes into.

Other V-Series bulb bases such as H1, H7 or H11 are separate part numbers and will not replace a 9006. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The driver is inside the bulb, so no separate driver box needs mounting. Seat the 9006 base fully before closing the headlight housing, and check beam aim after installation. Lighting requirements vary by region, so confirm the setup meets local road-use rules.

What’s included

The kit is a single LED headlight bulb conversion with a 9006 bulb base and no other accessories.

Not included: Check the package contents against your installation before starting, including any mounting hardware or wiring you may need.

Questions & Answers

Will the ORCV5240-001 fit my vehicle?

It is universal fit, so no specific vehicle year, make or model is assigned. Check that your headlight uses a 9006 bulb base and confirm the bulb suits your housing before installing.

What does thermal foldback do in this bulb?

Thermal foldback is Oracle's term for lowering driver current when the bulb gets hotter than its optimal working temperature. The driver adjusts the PWM duty cycle until temperature stabilizes, which protects the LEDs and bulb components.

What voltage and current does the built-in driver use?

The integrated constant current linear LED driver accepts a 6V to 24V input and provides constant current output of up to 1 Amp. The driver is inside the bulb, so no separate driver box is needed for this kit.

How should I care for an LED conversion bulb?

Keep the rear dust cover sealed and the connector dry, since moisture is a common cause of trouble. Clean the outside of the lens with mild soap and water, and avoid touching the LED surface. If one side is dimmer than the other, check the bulb seating before replacing it.

Can this bulb be combined with other lighting upgrades?

Yes, but the housing matters as much as the bulb. A bright bulb can strain existing wiring and switches, and a clouded lens or worn reflector limits any gain. Check local road-use rules for brightness and color before combining upgrades.
