Overview
The Oracle Lighting 9005 LED headlight bulb pair, part number ORC5239-001, is a set of two high-output LED headlight bulbs with 4,000+ Lm of light output. It is a universal-fit pair, not built for one vehicle. Confirm whether your headlight socket takes a 9005 or 9007 base before installing.
The bulbs use Philips Luxeon ZES chips for the higher lumen output while drawing less than half the power of the factory headlight bulb. The smaller chips dissipate heat well, which supports reliability in harsh environments. The internal driver components were designed by Samsung.
The adjustable heat sink is removable, so the bulb can be installed in reverse or mounted outside the headlight back cap. Oracle presents this as a way to handle tight housings and fitment differences.

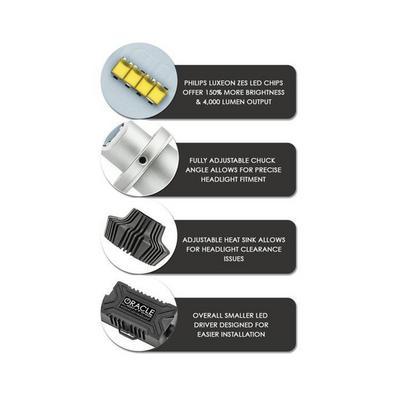

Key features
- Philips Luxeon ZES LED chips
- Rated at 4,000+ Lm of light output
- Uses less than half the power of the factory headlight bulb.
- Samsung-designed internal driver components
- Removable adjustable heat sink for reverse install or outside mounting
- Sold as a pair with two connectors and two compact LED drivers
Heat sink placement and fitting
Pairs of LED bulbs with separate drivers need room for the heat sink, the driver and the connector. A removable, adjustable heat sink helps in tight housings, but placement still needs airflow so the chips do not overheat. Mounting the heat sink outside the back cap can free up space, provided the cable run stays clear of hot engine parts and moving components.
Before fitting, lay out the connectors and drivers, then confirm the base type on both sides. Plan the wiring route so it cannot rub on the housing. Once the pair is in, check beam aim and light pattern, because a bulb seated at the wrong angle can throw light where it should not go.
- Test both bulbs together before final assembly
- Route the driver cables away from hot surfaces
- Check the beam pattern after the first drive
- Keep the heat sink free of dust and debris
Specifications
| Brand | Oracle Lighting |
|---|---|
| Part number | ORC5239-001 |
| Bulb type | LED |
| Single or pair | Pair |
| Bulb base type | |
| Light output | 4,000+ Lm |
| LED chips | Philips Luxeon ZES |
| Included | 2 bulbs, 2 connectors, 2 compact LED drivers |
| Fitment | Universal Fit |
Vehicle fitment
These bulbs are universal fit, so no specific vehicle is named. Fit depends on the headlight housing and base type, so check the base against your current bulb.
Confirm your vehicle’s year, model and trim before ordering, and check the base type against your current bulb.
Installation notes
The heat sink is adjustable and removable, so you can reverse install the bulb or mount the heat sink outside the back cap if the housing is tight. Resolve the 9005 or 9007 base question before fitting the connectors and drivers.
Disconnect the headlight power before working on the connector.

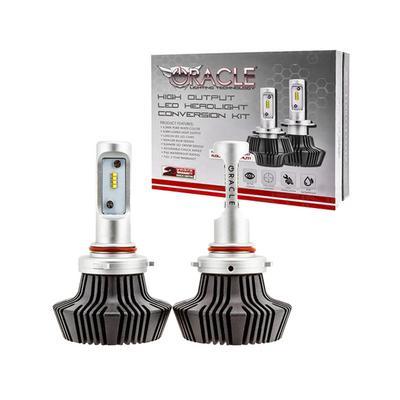

What’s included
Two 9005 LED headlight bulbs, two 9005 connectors and two 9005 compact LED drivers.
