Oracle Lighting H1 – V-Series LED Headlight Bulb Conversion Kit – V5243-001

Oracle Lighting

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Oracle Lighting H1 V-Series LED headlight bulb conversion kit, part number ORCV5243-001
  • Universal fit with an H1 bulb base; no specific vehicles are named
  • Integrated constant current LED driver, 6V to 24V input, up to 1 Amp output
  • SmartDrive ATR temperature management with thermal foldback

Description

Overview

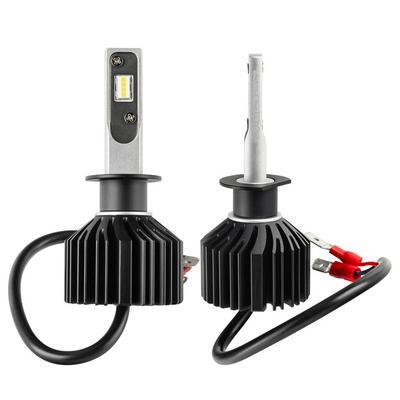

The Oracle Lighting H1 V-Series LED Headlight Bulb Conversion Kit, part number ORCV5243-001, is an LED headlight bulb built on the H1 base. It is classed as universal fit, so Oracle does not tie it to particular vehicles; the H1 base and your headlight housing are the deciding factors.

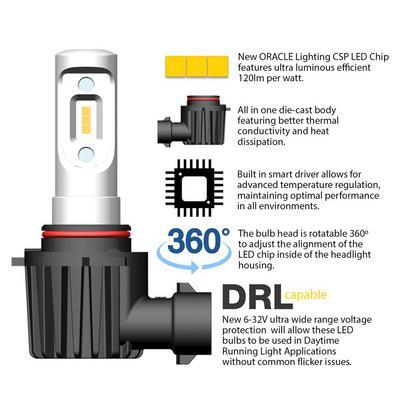

Each V-Series bulb in this line carries SmartDrive Active Thermal Regulation (ATR), Oracle’s temperature management system. Inside the bulb is an integrated constant current linear LED driver that runs from 6V to 24V and supplies up to 1 Amp of constant current. If the bulb heats beyond its optimal range, the driver lowers current by adjusting the PWM duty cycle, a process Oracle names thermal foldback, until temperature evens out.

Passive heat management paired with this active control allows a small bulb body without shortening LED life through heat. The dimming from foldback is designed to stay under the level most people would detect, since human vision is not very sensitive to small changes in very bright light.

Key features

  • SmartDrive ATR temperature management in V-Series bulbs
  • Integrated linear LED driver with constant current output
  • Operating input of 6V to 24V
  • Up to 1 Amp constant current output
  • Thermal foldback through PWM duty cycle control
  • Small package sized around combined passive and active cooling
  • H1 bulb base type

Seating and aim after swapping

Headlight bulb changes are often about seating rather than the bulb itself. With an H1 base, the locking tabs and socket orientation decide whether the bulb sits square in the reflector, so a bulb that looks seated can still throw light off target. Turn the bulb to check the seat before closing the housing.

Once the bulb is in, check the aim on a flat wall and confirm both sides look the same. A slightly crooked bulb can cause glare for oncoming drivers and poor road lighting. If the cover was removed, inspect the seal and clean the lens before reinstalling it, since moisture behind the lens is a common cause of dim headlights.

  • Check both headlights side by side
  • Inspect the cover seal before refitting
  • Keep fingers off the glass of the bulb
  • Re-check aim after the first few drives

Specifications

Brand Oracle Lighting
Part number ORCV5243-001
Bulb base type H1
Product type LED headlight bulb conversion kit, V-Series
Driver input 6V to 24V
Driver output Constant current, up to 1 Amp
Thermal management SmartDrive Active Thermal Regulation (ATR)
Fitment Universal fit

Vehicle fitment

No specific vehicles are named for this H1 kit, since it is classed as universal fit. The H1 base in your headlight socket is the match point to verify, not a model year.

H1 is one base type in the V-Series line; a 9006, H7 or H11 bulb is a different part number. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Seat the H1 base fully in the socket, reinstall any headlight cover you removed, and check aim afterward. Because the driver sits inside the bulb, the work centers on the base seating correctly. Lighting rules differ by region, so confirm the bulb meets local road-use requirements.

What’s included

The kit is an H1 LED headlight bulb conversion kit with the driver built into the bulb.

Not included: Check the package contents against your installation before starting, including any brackets or harness pieces you need.

Questions & Answers

Does the H1 V5243-001 fit my car?

Only if your headlight socket takes an H1 base. The kit is universal fit, so it carries no specific year, make or model. Check the base in your housing, then confirm the bulb matches before installing it.

Is the driver inside the bulb or a separate unit?

The LED driver is integrated inside the bulb. It is a constant current linear driver with a 6V to 24V input and up to 1 Amp output, with no separate driver unit.

What is SmartDrive Active Thermal Regulation?

SmartDrive Active Thermal Regulation, or ATR, is Oracle's temperature management for these V-Series bulbs. When heat rises above optimal, the driver lowers current through PWM duty cycle changes, which protects the LEDs and bulb components.

Can an H1 LED bulb be used in a halogen housing?

It depends on the reflector and housing design. Confirm the H1 base seats fully, then check the beam pattern and aim after fitting. If the beam looks scattered or causes glare, the housing may not suit an LED bulb.
