Overview

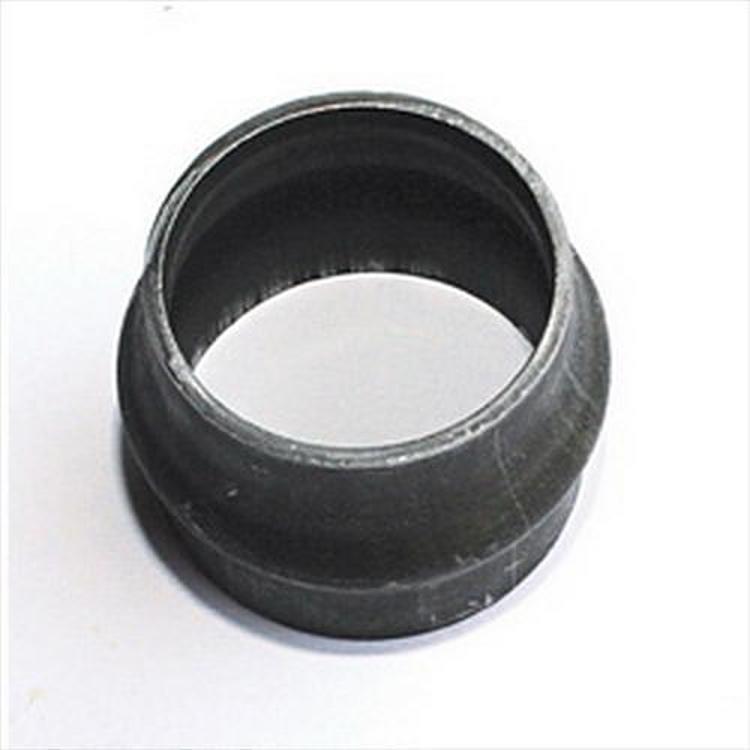

The 16512.65 is a pinion bearing crush sleeve for Dana 30 JK and Dana 44 JK front axles. It fits the 2002-2012 Jeep Liberty (KJ), the 2015 Jeep Wrangler (JK) and the 2003-2006 Jeep Wrangler (TJ) Rubicon.
A crush sleeve sits on the pinion shaft between the pinion bearings. It is compressed to set bearing preload, so it is replaced rather than reused each time the pinion is set up.
Key features
- Pinion bearing crush sleeve
- Made for Dana 30 JK and Dana 44 JK axles
- Front axle position
- Direct fit, Omix-Ada part number 16512.65
Crush sleeve preload basics
A crush sleeve is a metal spacer that is compressed when the pinion nut is tightened, and that compression sets the preload on the pinion bearings. Because the sleeve deforms, its length is fixed after one use, and the nut must be tightened in small steps while the bearing drag is checked. Setting preload correctly protects the bearings and keeps the pinion from moving under load.
Many setups that use a crush sleeve also rely on a separate depth shim pack, so measure both before final assembly. Keep the new sleeve, nut and washers together during the job, and do not reuse the old sleeve even if it looks undamaged. Recheck bearing drag and gear mesh after the first few trail runs, since loosened preload shows up as play and noise.
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 16512.65 |
| UPC | 804314134105 |
| Axle types | Dana 30 JK; Dana 44 JK |
| Position | Front |
| Axle location | Front or rear |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2002-2012 Jeep Liberty (KJ) in 65th Anniversary, Jet, Limited, Renegade, Rocky Mountain and Sport versions, the 2015 Jeep Wrangler (JK) Rubicon, Sahara and Sport, and the 2003-2006 Wrangler (TJ) Rubicon.
The JK entry is for 2015 only, so other Wrangler JK years are not in the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use a new sleeve whenever the pinion bearings are set, because the sleeve is crushed to set preload.
What’s included
This part is a single pinion bearing crush sleeve.
