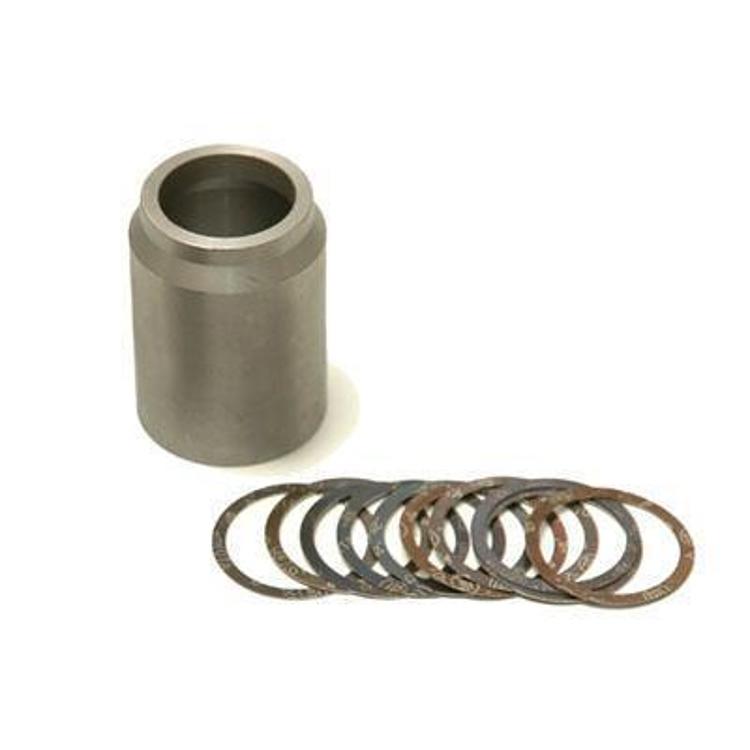

G2 Toyota 8 Inch V6Pinion Bearing Solid Spacer – 10-2043SS

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 10-2043SS solid pinion bearing spacer
  • For Toyota 8 inch V6 axles
  • Maintains proper pinion bearing preload
  • Preferred in high performance applications

Description

Overview

The G2 Axle and Gear 10-2043SS is a solid pinion bearing spacer for Toyota 8 inch V6 axles. It takes the place of a crush sleeve and maintains pinion bearing preload. G2 Axle and Gear designed it for high performance engines and oversize tires, where crush sleeves can fail.

Key features

  • Solid spacer designed to replace a crush sleeve
  • Maintains proper pinion bearing preload
  • Preferred in high performance applications
  • Designed for Toyota 8 inch V6 axles
  • Front and rear axle locations listed

Preload and pinion setup

A crush sleeve is compressed once to set pinion bearing preload and is then discarded. A solid spacer keeps that preload fixed by length, so the pinion depth and bearing preload must be set during assembly. This is why the swap is handled as a setup job rather than a simple bolt-in change.

Engines with more torque and tires that change the effective gearing put more load through the pinion bearings. A solid spacer is often chosen in those builds to avoid crush sleeve failure. Check the pinion bearings, pinion seal and pinion nut for wear whenever the spacer is changed, and replace any worn part before reassembly.

  • Measure pinion preload with a proper gauge
  • Replace the pinion nut when the spacer changes
  • Inspect pinion bearing cups and cones

Specifications

Brand G2 Axle and Gear
Part number 10-2043SS
UPC 682034312986
Type Solid pinion bearing spacer
Axle type Toyota 8 inches, V6
Axle location Front and rear
Fitment listed Universal fit

Vehicle fitment

No specific vehicle is confirmed for this spacer. The Toyota 8 inch V6 axle is the match point, so check your axle housing against that design. Confirm your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Replacing a crush sleeve with a solid spacer changes how pinion preload is set, so the pinion setup should be checked by a qualified shop rather than treated as a simple drop-in part.

What’s included

Only the pinion bearing solid spacer is described.

Not included: the pinion bearings and the pinion nut are not part of this spacer.

SKU: G/210-2043SS Category:

Specification

Shipping weight 0.55 lbs
Package dimensions 4.00 × 4.00 × 2.30 in
brands

Questions & Answers

Is the G2 10-2043SS a crush sleeve or a solid spacer?

It is a solid pinion bearing spacer. G2 Axle and Gear designed it to replace a crush sleeve, which helps prevent crush sleeve failure in high performance setups and with oversize tires.

Does this spacer fit Toyota 8 inch V6 axles?

Yes, it is designed for Toyota 8 inch V6 axles and carries universal fit. No vehicle is confirmed, so match your axle housing to the 8 inch V6 design before ordering.

What part number is the G2 pinion bearing spacer?

The part number is 10-2043SS. It is a solid pinion bearing spacer from G2 Axle and Gear for Toyota 8 inch V6 axles, and it is set up for both front and rear locations.

Should the pinion nut be replaced when the spacer is changed?

Usually, yes. The nut is tightened to set preload, and reusing an old nut can lead to loosening or uneven preload. Replacing it during the spacer change helps the new setup hold its setting.
