Overview

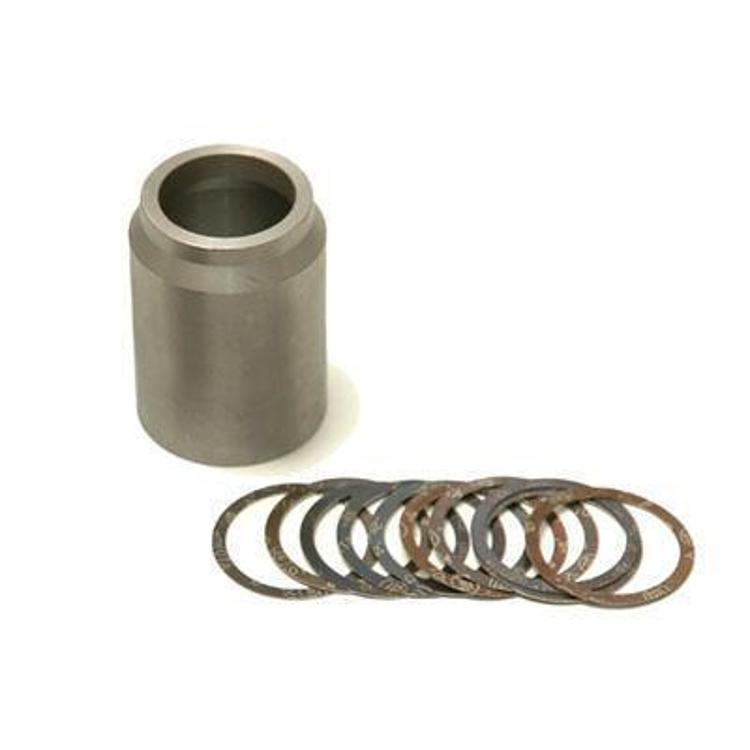

The G2 Axle and Gear G/210-2041SS is a solid pinion bearing spacer for Toyota 8 Inch axles, for front and rear locations. It takes the place of a crush sleeve, and it is designed to help avoid crush sleeve failure in high performance builds and with oversize tires.
No vehicle year, model or trim is named, so the axle type is the main point to match.
Key features
- Solid spacer used in place of a crush sleeve
- Stated aim of avoiding crush sleeve failure in high performance builds
- Stated suitability for oversize tires
- Front and rear axle locations
Solid spacers and pinion setup
A solid spacer does not collapse, so pinion bearing preload is set by the pinion nut and the bearing faces rather than by sleeve height. That makes setup more exacting. Pinion depth and bearing fit must be checked before the carrier is closed up, since there is no sleeve to absorb small errors.
Toyota 8 Inch axles are often used in builds with bigger tires, where the drivetrain sees more load and the pinion bearings work harder. A solid spacer may suit such a build, but gear mesh, carrier bearings and pinion seal condition still need to be checked as one job. Replacing the pinion nut at the same time is a common practice.
- Verify pinion depth before final assembly
- Inspect carrier bearings for heat marks or pitting
- Recheck pinion preload after the first drives
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | G/210-2041SS |
| UPC | 631410092622 |
| Product type | Solid pinion bearing spacer |
| Axle location | Front and Rear |
| Axle type | Toyota 8 Inch |
Vehicle fitment
No vehicle is named for this spacer. It fits by axle type, Toyota 8 Inch in front and rear positions, and is universal fit. Match your axle label to that type before fitting.
The only stated axle type is Toyota 8 Inch, so other housings are not covered by the stated fitment.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A solid spacer changes how pinion preload is set compared with a crush sleeve, so have the setup checked by a shop experienced with Toyota 8 Inch axles.
What’s included
The product is the solid spacer itself. No other hardware is named.
