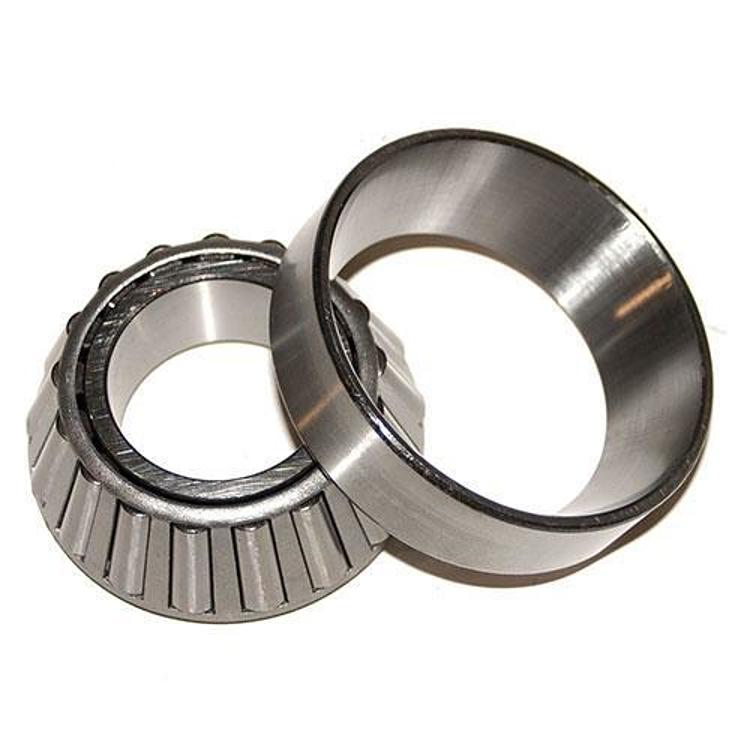

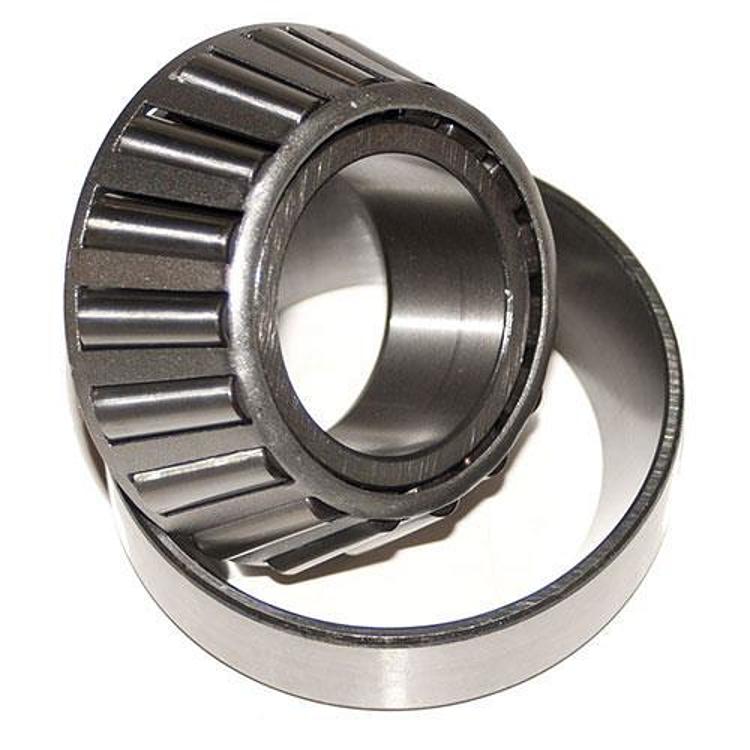

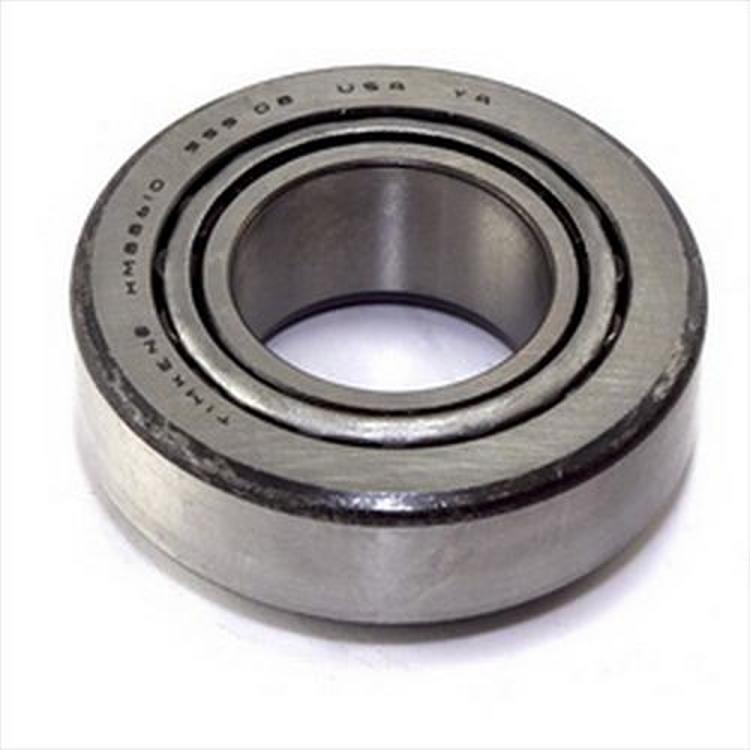

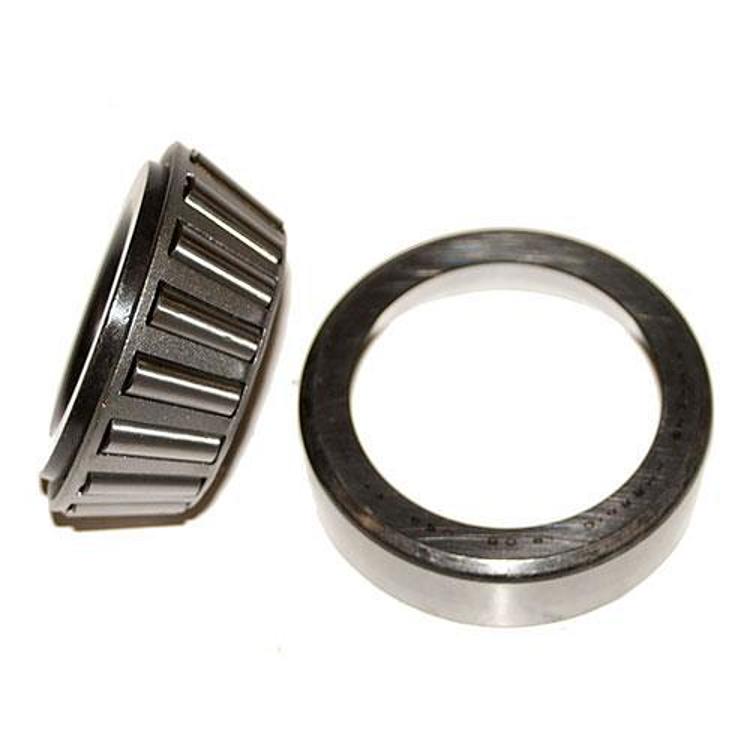

Omix-ADA D35 Inner Pinion Bearing Set – 16515.15

Omix-Ada

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Omix-Ada inner pinion bearing set, part number 16515.15
  • Direct OE replacement Jeep differential pinion bearing, built to original specifications
  • Direct OE replacement for the D35 pinion position
  • UPC 804314033217

Description

Overview

The Omix-Ada 16515.15 is an inner pinion bearing set for the D35 differential used in Jeep applications, sold as a direct OE replacement part. Omix-Ada built it to the original specifications and backs it with a limited five year manufacturer warranty.

Match your original bearing to part number 16515.15 before ordering, and check the Jeep year, model and trim first.

Pinion bearing preload basics

The inner pinion bearing carries the load of the pinion gear and keeps its position steady under torque. Preload set by the crush sleeve or shims matters as much as the bearing itself, so a new set should always be paired with correct setup procedures. Rough or uneven rotation is a sign to stop and inspect.

When replacing bearings, inspect the pinion yoke, seal surface and carrier bore for wear or pitting. Pinion depth and backlash may need rechecking after a bearing swap, because shim changes shift the gear mesh. Old races left in the carrier should be checked, since mismatched races cause early failure.

  • Check preload with an inch-pound torque reading
  • Inspect the pinion seal surface for grooves
  • Verify gear mesh and backlash after assembly

Specifications

Brand Omix-Ada
Part number 16515.15
UPC 804314033217
Part type Inner pinion bearing set
Warranty Limited five year manufacturer warranty

Vehicle fitment

Compare the bearing with your D35 carrier and your Jeep’s year, model and trim before buying.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

Check the piece count and whether pinion races are included against your installation before starting.

SKU: OAI16515.15 Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 5.00 × 5.00 × 2.00 in
brands

Questions & Answers

What is the Omix-Ada 16515.15?

The Omix-Ada 16515.15 is an inner pinion bearing set for a Jeep D35 differential, sold as a direct OE replacement part with part number 16515.15. Omix-Ada built it to the original specifications, and it carries a limited five year manufacturer warranty.

Will the 16515.15 fit my Jeep?

It is a direct OE replacement for the D35 pinion position, so fit depends on the Jeep's year, model and trim. Match your original bearing before buying.

Does the set include a pinion race or outer bearing?

Check the piece count and whether pinion races are included by comparing the parts against your original bearing before installing. Part number 16515.15 is the reference to use.

What is the UPC for this bearing set?

The UPC is 804314033217. Use it together with Omix-Ada part number 16515.15 when comparing this inner pinion bearing set with other differential pinion bearing options.

Should the pinion seal be replaced when changing the bearings?

Usually, yes. The seal is disturbed when the pinion nut is removed, and an old seal can leak once the bearings are reset. Inspect the yoke sealing surface and replace the seal if it shows wear, grooves or a leak.

Why does pinion preload matter after a bearing change?

Preload keeps the pinion steady under load and affects bearing life. Too little causes play, and too much creates heat and early wear. Set preload to your setup's procedure and recheck it once the carrier is assembled.
