Overview

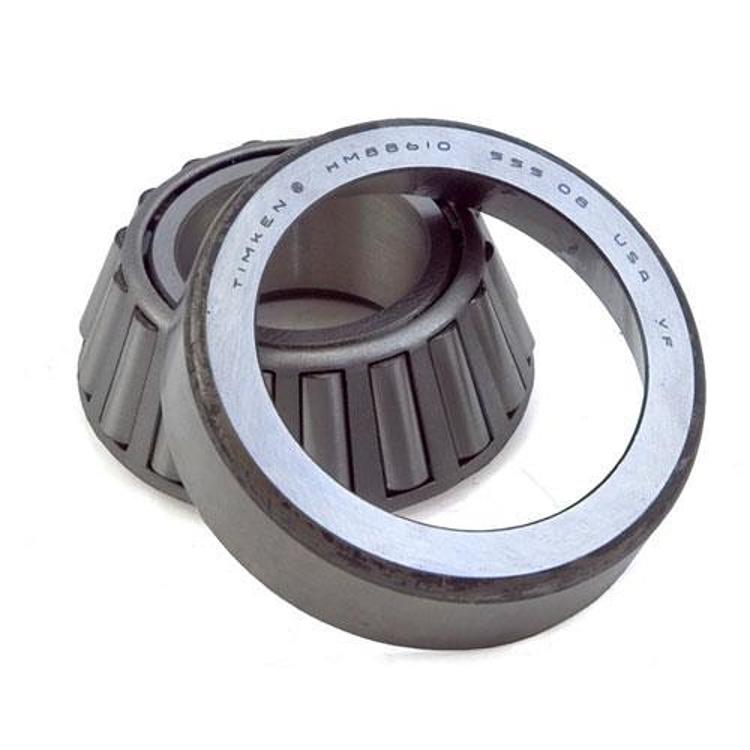

It is a bearing and cup set made for Dana 30 axles, with one bearing and one cup per set.
It fits the 1984–2001 Jeep Cherokee (XJ), 1976–1983 CJ-5, 1976–1986 CJ-7, 2002–2012 Liberty (KJ), 1981–1985 Scrambler, 2007–2018 Wrangler (JK), 2005–2006 Wrangler (LJ) Unlimited Rubicon, 2003–2006 Wrangler (TJ) Rubicon and 1987–1995 Wrangler (YJ).
Key features
- Bearing and cup set
- Made for the Dana 30 axle
- Fits a wide range of Jeep models
Why preload matters
A pinion bearing is set against a specific preload, which holds the pinion steady so the ring gear teeth mesh correctly under load. Too little preload lets the pinion move and can produce noise or early tooth wear, while too much heats the bearings and shortens their life. Because preload depends on the crush sleeve or shim pack and on the carrier setup, the bearing alone does not determine whether the gear set runs well.
Bearing and cup sets are best replaced as matched pairs, and the cup should seat fully against its bore before the cone is assembled. Check the carrier and pinion for scoring, and keep the parts clean and dry during the job. Recording the preload reading makes it easier to repeat the setup later.
- Replace bearing and cup as a matched set
- Check the crush sleeve or shim pack when preload is reset
- Inspect the carrier bore for scoring before seating the cup
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J8126499 |
| UPC | 848399079616 |
| Axle | Dana 30 |
| Set contents | Bearing and cup |
Vehicle fitment
It fits the Jeep Cherokee (XJ) 1984–2001, CJ-5 1976–1983, CJ-7 1976–1986, Liberty (KJ) 2002–2012, Scrambler 1981–1985, Wrangler (JK) 2007–2018, Wrangler (LJ) 2005–2006 Unlimited Rubicon, Wrangler (TJ) 2003–2006 Rubicon and Wrangler (YJ) 1987–1995.
For other Wrangler (TJ) and (LJ) trims, confirm fit before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Pinion bearing preload is set during gear setup, so a professional should install this set.
What’s included
One bearing and one cup.
