Overview

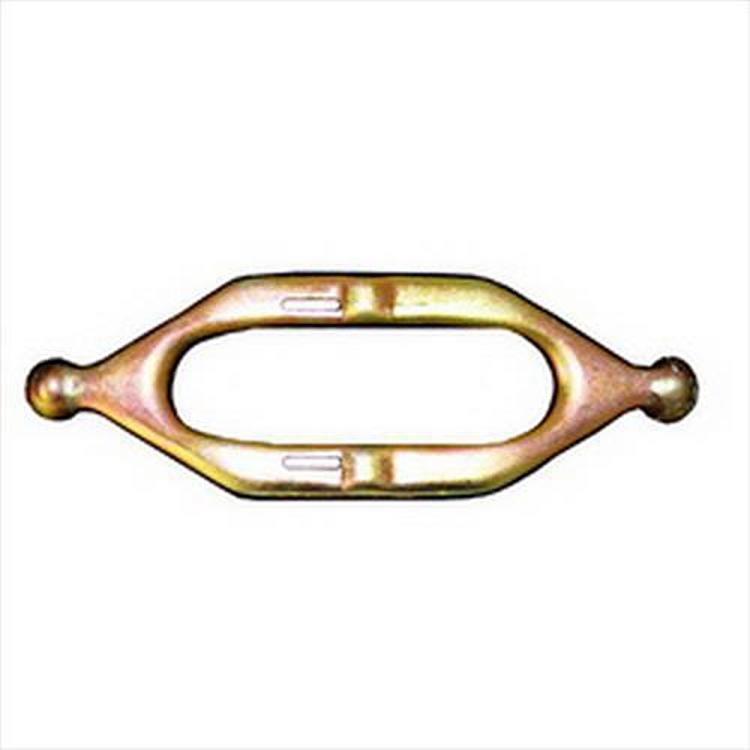

The Omix-ADA 16914.07 is a clutch fork for the 2002 to 2007 Jeep Liberty (KJ). The clutch fork is the lever that moves the clutch release bearing when the clutch pedal is pressed, so a worn fork can affect clutch engagement. Omix-ADA builds it as a direct OE replacement to original specifications.
Clutch linkage check
The clutch fork sits in the bellhousing and pivots on a ball stud, pushing the release bearing forward when the pedal is pressed. Its fingers and pivot points take constant load, so wear there changes how the clutch engages and how far the pedal travels before the clutch grabs. Because the fork sits in a shared assembly, it is worth looking at the bearing and pivot ball whenever it comes out.
Inspection is straightforward once the transmission is off. Check the fork fingers for cracks, look for grooves where the release bearing rides, and make sure the pivot ball is not loose or polished smooth. Replacing the release bearing together with the fork avoids a second teardown, and a fresh pivot ball helps the fork stay aligned.
- Check the fork fingers for cracks
- Look for grooves where the bearing rides
- Inspect the pivot ball for play or polish
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 16914.07 |
| UPC | 804314053611 |
| Vehicle years | 2002 to 2007 |
| Vehicle model | Jeep Liberty (KJ) |
| Warranty | Limited five year warranty from Omix-ADA |
Vehicle fitment
Fits the 2002 to 2007 Jeep Liberty (KJ).
Other Jeep models, including the Wrangler and Grand Cherokee, are not covered. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Clips, bearings and hardware are not confirmed. Check the package contents against your installation before starting.
