Overview

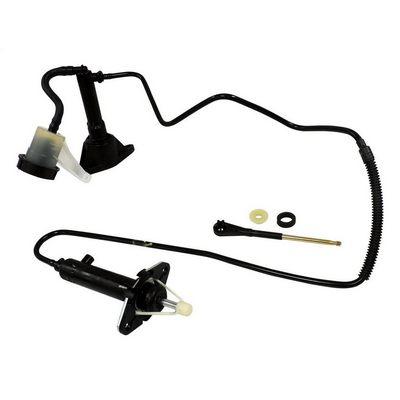

The Crown Automotive clutch hydraulic assembly, part number CRO52107662AC, includes a master cylinder with hose and a slave cylinder. It is built for a 2.5L diesel engine, with Europe and left-hand drive (LHD) use.
Confirm fit for your vehicle’s year, model and trim before choosing this assembly.
Key features
- Clutch hydraulic assembly from Crown Automotive
- Includes master cylinder with hose
- Includes slave cylinder
- Built for 2.5L diesel engines, Europe and left-hand drive (LHD) use
Bleeding and fluid handling
A hydraulic clutch uses fluid pressure from the master cylinder to move the slave cylinder, so air in the lines makes the pedal feel soft or the clutch fail to release. After a cylinder or hose is replaced, bleed the system to remove trapped air. Use the fluid type that suits your vehicle, and keep the reservoir sealed when not in use since the fluid absorbs moisture.
Inspect the hose and fittings for seepage or swelling before fitting new parts. Check the slave cylinder body and dust boot for leaks, because a leaking slave often shows up as low fluid in the reservoir. Wipe up any spilled fluid promptly, since it can damage paint and rubber parts.
- Bleed the system after any cylinder or hose change
- Use the fluid type that suits your vehicle
- Keep the reservoir sealed
- Inspect hoses for swelling or seepage
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | CRO52107662AC |
| Included | Master cylinder with hose, slave cylinder |
| Engine (described) | 2.5L diesel |
| Region | Europe |
| Drive configuration | Left-hand drive (LHD) |
Vehicle fitment
Fit depends on your vehicle’s year, model and trim. Confirm those before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Hydraulic clutch systems generally need to be bled after a master cylinder or slave cylinder is replaced, so plan for that step when fitting this assembly. Wear eye protection when handling hydraulic fluid.
What’s included
The assembly includes a master cylinder with hose and a slave cylinder.
