Overview

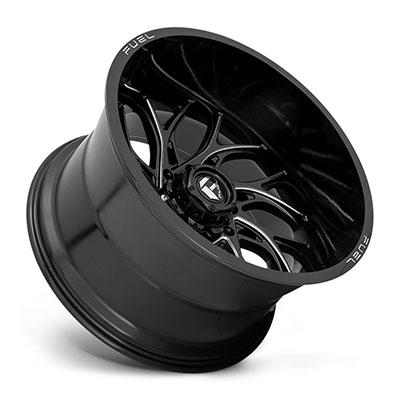

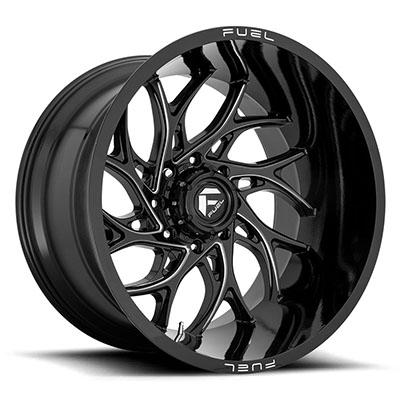

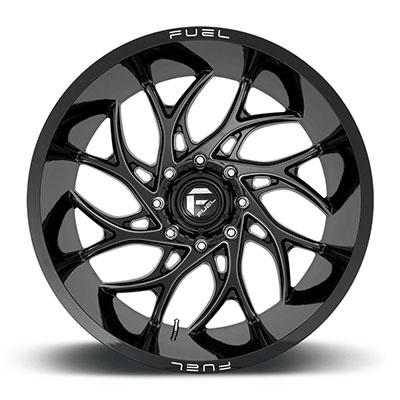

The FUEL Off-Road D741 Runner 22×12 with an 8 on 180 bolt pattern is a 22-inch aluminum wheel in gloss black milled finish, part number MHTD74122201847. It is 12 inches wide with a 124 center bore, an offset of -44 and backspacing of 4.77.
At -44, the mounting face sits well outboard of the wheel’s centerline, so width and offset should be checked together. The 8 on 180 pattern is the first figure to confirm against your hub.
Key features
- 22-inch diameter and 12-inch width
- 8 on 180 bolt pattern
- 124 center bore
- Offset of -44, backspacing of 4.77
- Aluminum construction
- Directional style, gloss black milled finish
Fender and steering clearance
A 12-inch wide wheel with a -44 offset puts the tire further out from the hub. That can change how the tire sits against the fender lip, especially at full steering lock and when the suspension compresses. Measure the gap at the front and rear, both at rest and with the steering turned, before committing to this size.
Clearance can also change with tire width and sidewall height. A wider tire on the same wheel needs more room, and a taller tire can rub the inner fender or the frame. Look at brake caliper clearance through the spokes, since a wide offset can reduce the room between the caliper and the wheel face.
- Measure fender gap at full steering lock
- Check caliper clearance through the spokes
- Recheck clearance after suspension changes
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD74122201847 |
| Series | D741 Runner |
| Wheel diameter | 22 inches |
| Wheel width | 12 inches |
| Bolt pattern | 8 on 180 |
| Center bore | 124 |
| Offset | -44 |
| Backspacing | 4.77 |
| Construction | Aluminum |
| Finish | Gloss Black Milled |
| Style | Directional |
Vehicle fitment
No vehicle is named for this 22×12 wheel. Its only fitment entry is the Universal Fit label, so bolt pattern, center bore and offset must be checked against your hub.
The -44 offset and 12-inch width together change how far the wheel sits outboard, so measure clearance before buying. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check clearance with the -44 offset and 12-inch width against the fender and suspension before mounting. Tires, lug nuts and centering rings should be confirmed before installation.
What’s included
Review what comes in the box before the install begins.
Not included: Tires, lug nuts and centering rings, to confirm before installation
