Method Race Wheels 704 Trail Series, 17x8.5 with 8 on 6.5 Bolt Pattern – Matte Titanium – MR70478580800

Method Race Wheels

Shop Method Race Wheels 17x8.5 8x6.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 704 Trail Series, 17×8.5, 8 on 6.5 bolt pattern, part MRWMR70478580800
  • Matte titanium finish, windowed style, cast 356 aluminum
  • Offset 0, center bore 131, backspacing 4.75
  • MR704 Bead Grip for tire grip at lower air pressures
  • Universal fit; no single vehicle covered, so confirm the hub match before ordering

Description

Overview

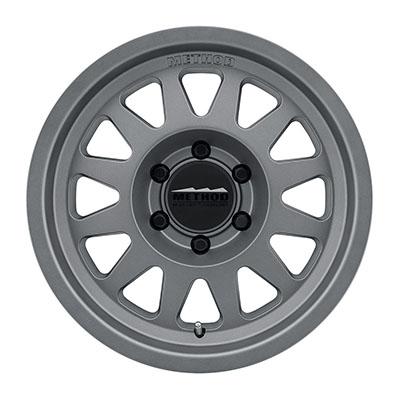

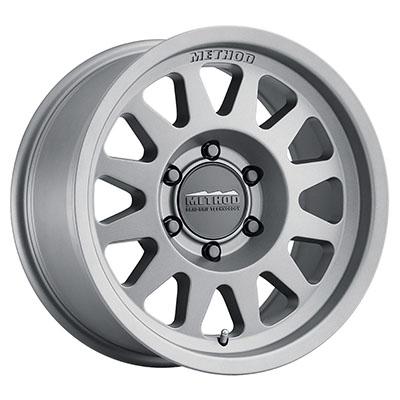

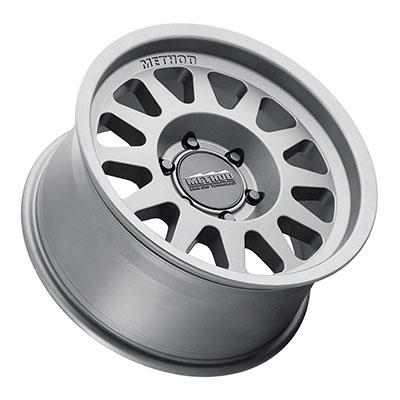

Part MRWMR70478580800 is the Method Race Wheels 704 Trail Series in 17×8.5 with an 8 on 6.5 bolt pattern and a matte titanium finish. It is built from one-piece cast 356 aluminum, with an offset of 0, a 131 center bore and a 4.75 backspacing. It is designed for trail and off-road use and is universal fit rather than built for a named vehicle.

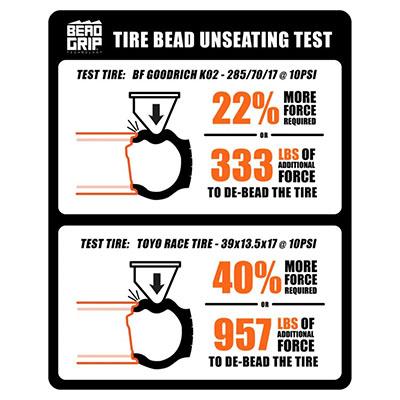

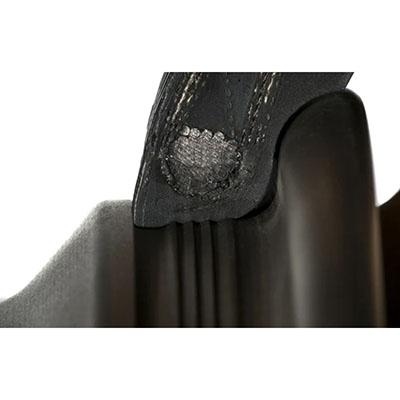

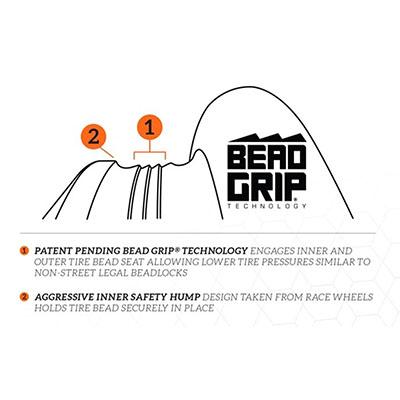

The Bead Grip design is the headline feature of this line. Its grip engages the tire bead seat, which helps when tires run at lower air pressures. A reinforced inner lip based on race wheel design supports the bead, and a safety hump on both bead seats helps keep the tire from de-beading. The wheels were developed with Finite Element Analysis and field testing, with a focus on less weight and more strength.

Key features

  • Patent pending MR704 Bead Grip, which grips the tire bead seat at lower air pressures
  • One-piece cast 356 aluminum with T6 heat treatment
  • Reinforced inner lip based on race wheel design
  • Aggressive safety hump on inner and outer bead seats
  • Matte titanium finish in a windowed style
  • Developed through Finite Element Analysis and field testing

Setup checks before the first trip

Before the first trail trip, mount the tire, seat the bead at normal inflation, then confirm the bead looks even all the way around. Uneven seating can leave a gap that lets air escape or lets the tire shift on the wheel. Spin the wheel slowly and watch for wobble, and re-check the seat after the first short drive.

Torque and clearance are the next checks. Tighten lug nuts evenly and recheck them after the first few miles. Look at the brake caliper, suspension arms and fender lip while turning the wheel to full lock. A rubbing tire can damage the sidewall and cause vibration that looks like a balance issue.

  • Check bead seating at normal pressure first
  • Spin the wheel and watch for wobble
  • Inspect clearance at full steering lock

Specifications

Brand Method Race Wheels
Part number MRWMR70478580800
Series MR704 Bead Grip
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 8 on 6.5
Offset 0
Center bore 131
Backspacing 4.75
Style Windowed
Finish Matte Titanium
Construction Cast 356 aluminum, T6 heat treated
Fitment field Universal Fit

Vehicle fitment

This is universal fit, so no particular vehicle is covered. Use the 17 inch diameter, 8.5 inch width, 8 on 6.5 bolt pattern, 0 offset and 131 center bore to check your hub before mounting. Confirm the fit against your own vehicle’s dimensions.

A wheel with a different bolt pattern or center bore will not seat correctly on this hub. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Bead Grip is for running lower air pressures, so set pressure within the range the tire is rated for. Backspacing and offset control how far the wheel sits inside the fender and against the brakes, so measure clearance before the wheel goes on a vehicle.

What’s included

Confirm the package contents against your installation before starting.

Not included: Tires and lug hardware are not part of this wheel’s data.

SKU: MRWMR70478580800 Categories: ,

Questions & Answers

What is Method Race Wheels MRWMR70478580800?

It is a 704 Trail Series wheel measuring 17x8.5 with an 8 on 6.5 bolt pattern and matte titanium finish. It has a 0 offset, 131 center bore, 4.75 backspacing and is made of cast 356 aluminum.

Which vehicles does this 704 wheel fit?

No specific vehicle is covered. Because the wheel is universal fit, check the 8 on 6.5 bolt pattern, offset and center bore against your own hub before fitting it.

Is the finish the only difference from other 704 colors?

Matte titanium is the finish of this part. Bolt pattern, offset and center bore are the measurements that decide fit, not the color.

Does Bead Grip work with any tire?

Bead Grip is a patent-pending feature that engages the tire bead seat for more grip at lower air pressures. Choose a tire rated for the pressure you plan to run, since the bead must stay seated.

How can I tell if the bead seat is damaged?

Look for dents, cracks or a rough ledge where the tire bead rests. Damage here can stop the tire sealing or let it slip under low pressure. Have a wheel shop inspect a damaged wheel before it goes back on the trail.
