Overview

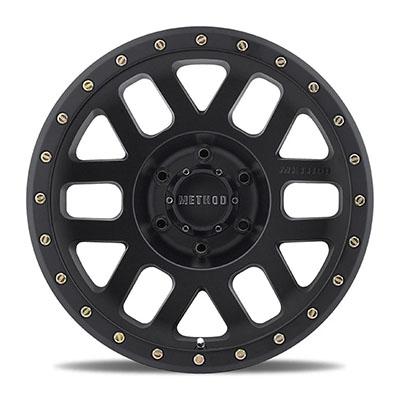

The Method Race Wheels 309 Grid is a 17×8.5 mesh wheel in matte black with a 6 on 5.5 bolt pattern and part number MRWMR30978560500. It is aluminum, with 0 offset, 4.75 backspacing and a 108 center bore.
Method Race Wheels builds its wheels for the off-road racing community. Each design is checked with finite element analysis and field testing. Fitment is universal, so no particular vehicle is named for this wheel.
Key features
- Mesh style from the 309 Grid series
- Matte black finish
- Aluminum construction
- 6 on 5.5 bolt pattern
- Center bore of 108
- Offset 0 with 4.75 backspacing
Mesh wheel care
Mesh wheels have many small openings where mud, sand and salt can collect. Rinse the face after off-road use and use a soft brush around the mesh, since packed debris can hold moisture against the aluminum and dull the matte finish over time.
When choosing a mesh design for trail work, consider how the openings handle brake heat and airflow. Check brake caliper clearance with the wheel mounted, and confirm that the tire clears the inner barrel at full steering lock.
Inspect the mesh and the spoke joints after hard impacts, and look for cracks near the center section. Tighten the lug nuts evenly and recheck them after the first few drives, since a loose wheel can wear the studs and the seat.
- Rinse mesh openings after trail use
- Check brake clearance behind the mesh
- Inspect joints after hard impacts
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30978560500 |
| Series | 309 Grid |
| Style | Mesh |
| Finish | Matte black. |
| Construction | Aluminum |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 4.75 |
| Fitment | Universal fit |
Vehicle fitment
No vehicle entries are attached to this wheel. Universal fit does not identify a model, so confirm the 6 on 5.5 pattern and 108 center bore on your hub before fitting.
Universal fit is not a clearance guarantee for any vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Mount the wheel only after confirming that the 108 center bore matches the hub, so it seats squarely without forcing.
What’s included
The item is one wheel.
Not included: Tires, valve stems and lug nuts should be sourced separately before mounting.
