Overview

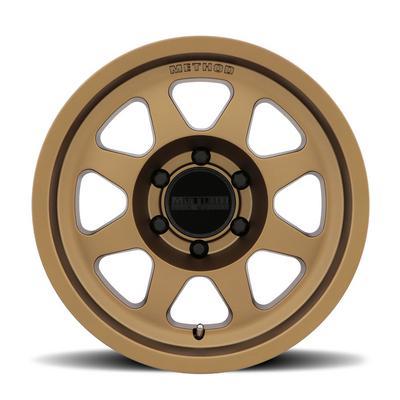

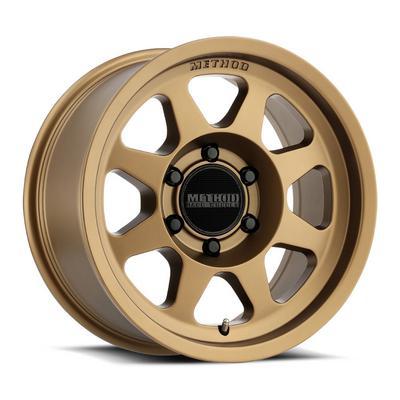

Bronze Method Race Wheels 701 Trail Series 17×8.5 wheel, part number MRWMR70178560900, is a one-piece cast aluminum off-road wheel with a 6 on 5.5 bolt pattern, a 106 center bore and an offset of 0. Method places the 701 in its Trail Series for off-road tires, and the wheel is labeled universal fit, so confirming the hub match matters more than any model name.

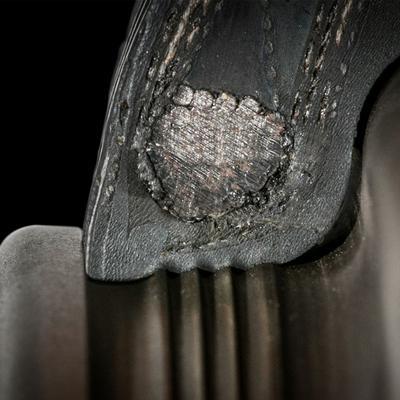

Bead Grip is the headline feature. The patent pending design is meant to hold the tire bead against the bead seat, improving grip when the tire runs at low air pressure. A reinforced inner lip borrowed from race wheel work and a safety hump on the inner and outer bead seat help stabilize the tire and guard against de-beading. The wheel was developed with finite element analysis and field testing, aiming for less weight and more strength.
Key features
- Bronze finish on a windowed style wheel.
- Cast 356 aluminum in one piece with T6 heat treatment.
- Patent pending Bead Grip design for grip at lower tire pressures.
- Reinforced inner lip taken from race wheel design.
- Safety hump on both bead seats to help prevent de-beading.
- Finite element analysis and field testing used during development.
Trail tire pressure basics
Running lower tire pressure on the trail is common because a softer tire conforms to rocks and ruts, which can improve traction. Lower pressure also changes how the tire sits on the bead seat, so the wheel’s bead design matters more than it would on pavement. Before a trip, set pressure for the tire size, load and terrain you expect, and recheck it after each change.
Off-road wheels take harsher impacts than street wheels. After rough runs, look at the bead seat area for scuffs, check the inner lip for bends, and confirm the valve stem is still tight. Re-torque the lug nuts after the first few trail runs and periodically after that.
- Inspect bead seats after each trail trip
- Check lug nut torque after the first runs
- Keep valve stems and caps in good condition
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70178560900 |
| Series | 701 Trail Series (MR701 Bead Grip) |
| Wheel diameter | 17 Inches |
| Wheel width | 8.5 Inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | 0 |
| Backspacing | 4.75 |
| Construction | One-piece cast 356 aluminum, T6 heat treatment |
| Style | Windowed |
| Finish | Bronze |
Vehicle fitment
No vehicle, year or chassis is named for this wheel. It is a universal fit wheel, so the usable match depends on the 6 on 5.5 bolt pattern and 106 center bore. Compare those two figures with your hub first.
Match the bolt pattern and center bore to your hub specifications, then confirm your vehicle’s year, model and trim before ordering.
Installation notes
Verify the 6 on 5.5 bolt pattern and the 106 center bore against the hub. Offset 0 and backspacing 4.75 affect where the wheel sits in the wheel well, so check clearance with the tire you plan to run.
What’s included
One Method Race Wheels 701 Trail Series wheel in Bronze.
Not included: You will need to add the tire, lug nuts, valve stems and center caps yourself.
