Overview

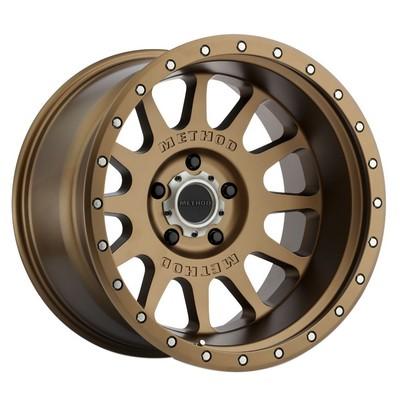

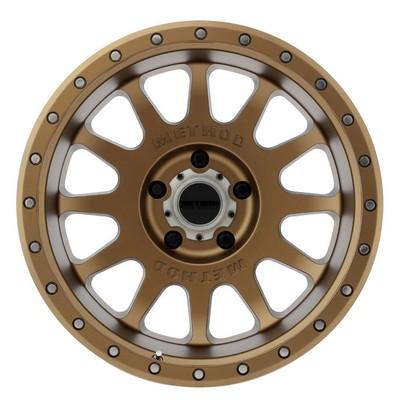

The 20×10 size in bronze is a one-piece aluminum wheel, part MRWMR60521080924N, with an 8 on 6.5 bolt pattern. It belongs to the MR605 NV line and is built for lifted trucks, Jeeps and SUVs.
This size has a 3 inch lip for the deep-dish look. Method’s Street-Loc lip is standard on the wheel, with removable stainless steel bolts around the lip. Two debossed Method logos sit around the bolt circle, and the 8 lug version is rated for 3640 lbs. The 20×12 version of the same model uses a 5.25 inch lip.
Key features
- One-piece aluminum construction in a windowed style
- Bronze finish with a 3 inch lip for a deep-dish look
- Street-Loc lip with removable stainless steel bolts around the lip
- Bolt-on aluminum center ring with a bolt-on cap for 8 lug applications
- Two debossed Method logos around the bolt circle
- Load rating of 3640 lbs for 8 lug applications and 2650 lbs for 5 and 6 lug
- Center bore 121 and backspacing 4.55 for hub fit checks
Center ring and cap care
The 8 lug version uses a bolt-on cap over the center ring. Keep the cap fasteners with the ring during mounting, since small parts are easy to lose on the shop floor. Clean the ring and cap area when the wheel is off, and check that the cap sits flush before the tire goes back on.
Inspect the ring and cap periodically for corrosion, loose fasteners and cracks at the mounting points. Off-road water, salt and mud can work into the seam between the ring and the wheel. Re-check fasteners after the first few drives, and replace any cap or ring part that is bent or no longer seats evenly.
- Keep cap fasteners with the ring during mounting
- Clean the seam between ring and wheel
- Re-check fasteners after the first drives
Specifications
| Brand | Method Race Wheels |
|---|---|
| Series | MR605 NV |
| Part number | MRWMR60521080924N |
| Wheel diameter | 20 inches |
| Wheel width | 10 inches |
| Bolt pattern | 8 on 6.5 |
| Offset | -24 |
| Center bore | 121 |
| Backspacing | 4.55 |
| Lip | 3 inch (20×10) |
| Style | Windowed |
| Finish | Bronze |
| Construction | Aluminum, one-piece |
| Load rating | 3640 lbs (8 lug); 2650 lbs (5 and 6 lug) |
Vehicle fitment
Without a vehicle tie-in, this wheel must be matched by hand: bolt pattern, offset, center bore and backspacing have to agree with your hub before mounting. Confirm your vehicle’s year, model and trim before ordering.
The 8 on 6.5 pattern and bolt-on cap described here belong to the 8 lug version; 5 and 6 lug applications use the snap-in cap instead.
Installation notes
The 8 lug center cap is bolt-on rather than snap-in, so keep its fasteners with the ring during mounting. Check fender and brake clearance with the tire installed, since a -24 offset and 4.55 backspacing set where the face sits relative to the hub. Have a shop that works with wheels this size mount and balance the tire.
What’s included
The wheel itself, with the bolt-on aluminum center ring, the 8 lug bolt-on cap and the removable stainless steel bolts for the Street-Loc lip.
Not included: tires.
