Overview

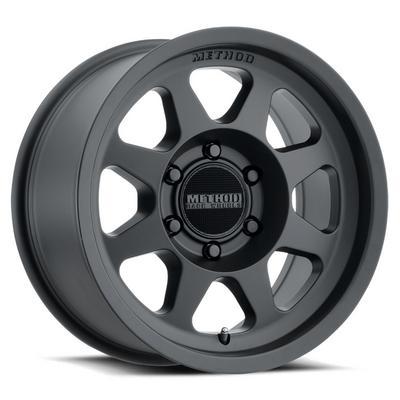

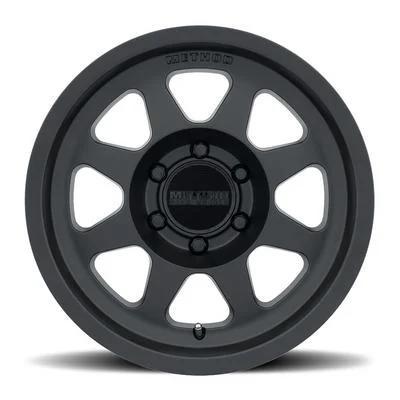

The Method Race Wheels 701 Trail Series wheel, part number MR70168052500, is a 16×8 one-piece cast aluminum wheel in matte black with a 5 on 120 bolt pattern.
The wheel is one-piece cast 356 aluminum with T6 heat treatment. It includes Bead Grip technology, which engages the tire bead seat for more grip at lower air pressures. A reinforced inner lip from race wheel design and a safety hump on the inner and outer bead seats help prevent de-beading.
No specific vehicles are listed, so check the bolt pattern, center bore and offset against your vehicle.
Key features
- One-piece cast 356 aluminum with T6 heat treatment
- Method Bead Grip technology, which Method says engages the tire bead seat for grip at lower air pressures
- Reinforced inner lip taken from race wheel design
- Safety hump on the inner and outer bead seat to help stabilize the tire and prevent de-beading
- Windowed style in matte black
- Built to reduce weight while increasing strength.
Running lower pressure safely
Lower tire pressure gives a larger contact patch on sand, mud and loose rock, but it also allows the tire to move on the wheel if the bead is not held firmly. Wheels with Bead Grip features are designed to resist that movement, though they still need a properly seated tire.
Before each trip, seat the bead, check pressure with a gauge and confirm the tire is centered on the rim. After rough runs, look at the bead seats for dents or scratches, since a damaged seat can reduce the grip the design is meant to give.
Lug nuts and seats deserve regular checks, especially after the first miles on a new wheel. Clean the mounting face and lug seats when remounting, and carry a torque wrench or the means to check torque when you head out.
- Check bead seats after rocky runs
- Re-torque lug nuts after new mounting
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MR70168052500 (alternate MRWMR70168052500) |
| Product type | Wheel |
| Series | MR701 Bead Grip (701 Trail Series) |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Bolt pattern | 5 on 120 |
| Center bore | 73 |
| Offset | 0 |
| Backspacing | 4.5 |
| Construction | Aluminum (one-piece cast 356 with T6 heat treatment) |
| Finish | Matte black |
| Style | Windowed |
Vehicle fitment
Compare the 5 on 120 bolt pattern, 73 center bore and offset of 0 with your vehicle before choosing this wheel.
A bolt pattern match alone does not confirm clearance for brakes, suspension or tires. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Make sure the bolt pattern, center bore, offset and backspacing suit your vehicle, and that the wheel clears the brake calipers, suspension and body. Torque the lug nuts to your vehicle’s specification in a star pattern, and re-check the torque after the first miles of driving.
What’s included
- One Method Race Wheels 701 Trail Series wheel in matte black
Not included: tires, lug nuts and center caps.
