Method Race Wheels 314, 17x8.5 Wheel 5 on 150 Bolt Pattern – Matte Black – MR31478558500

Method Race Wheels

Shop Method Race Wheels 17x8.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 314 spoke wheel, 17 Inches by 8.5 Inches, part number MRWMR31478558500
  • 5 on 150 bolt pattern with center bore 111, offset 0, backspacing 4.75
  • Matte Black finish, aluminum construction, MR314 series
  • Universal fit; confirm hub and clearance before mounting

Description

Overview

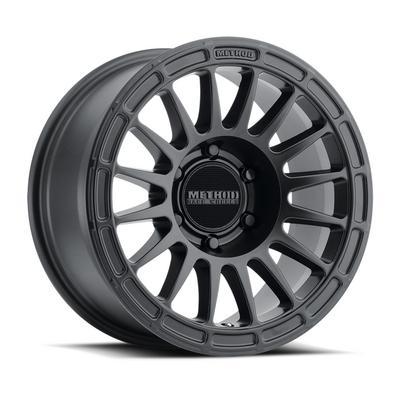

The Method Race Wheels 314 is a 17 Inches by 8.5 Inches aluminum spoke wheel for a 5 on 150 bolt pattern, finished in Matte Black. Part number MRWMR31478558500 places it in the MR314 series from Method Race Wheels, which builds wheels for off road racing.

The wheel is engineered for its intended use and tested with finite element analysis and field work. It is a universal fit design, so it is not built around one vehicle. The 111 center bore and zero offset decide whether it lines up with a given hub.

Key features

  • 17 Inches diameter with 8.5 Inches width
  • 5 on 150 bolt pattern
  • Center bore 111 and offset 0
  • Backspacing 4.75
  • Spoke style, Matte Black finish
  • Aluminum construction

Before you mount

A wheel’s position on the hub comes from three measurements working together: bolt pattern, center bore and offset. The bolt pattern has to match exactly, while the center bore seats the wheel on the hub so the lug nuts are not carrying the full load alone. Offset and backspacing move the wheel in or out relative to brake and suspension parts, so a small change can rub a caliper or fender even when the bolts line up.

Off-road builds often change tire size, and a larger tire can alter clearance at full steering lock and suspension travel. Re-check the space behind the wheel after new tires are fitted, and again after the first few trail runs, because flex can shift contact points. When the center bore is larger than the hub, a hub-centric ring is a common fix, and it should be sized to the hub before mounting.

  • Clean the hub face and wheel seating surface before mounting
  • Torque lug nuts in a star pattern and re-check after the first drive
  • Inspect the wheel face and lip for cracks after rough trail use

Specifications

Brand Method Race Wheels
Part number MRWMR31478558500
Series MR314
Style Spoke
Wheel diameter 17 Inches
Wheel width 8.5 Inches
Bolt pattern 5 on 150
Center bore 111
Offset 0
Backspacing 4.75
Finish Matte Black
Construction Aluminum
Fitment Universal Fit

Vehicle fitment

No year, make, model or trim applies to this wheel, since it is a universal fit design. Match the 5 on 150 bolt pattern and 111 center bore to your hub, then check offset and backspacing against the space behind the wheel.

Because no vehicle is named, this wheel should not be treated as a confirmed fit for any model.

Installation notes

Test the 111 center bore against your hub before tire work. The zero offset places the mounting face at the hub centerline, so check brake caliper and fender clearance first. Confirm the lug seat type against your lug hardware before mounting.

What’s included

One Matte Black spoke wheel is included.

Not included: Tires, valve stems and lug nuts are not part of this item.

SKU: MRWMR31478558500 Categories: ,

Questions & Answers

What is part number MRWMR31478558500?

It is the Method Race Wheels 314, a Matte Black spoke wheel measuring 17 Inches by 8.5 Inches. It has a 5 on 150 bolt pattern, center bore 111, offset 0 and backspacing 4.75.

Is this wheel designed for a specific vehicle?

No vehicle is named for this wheel because it is a universal fit design. Compare the bolt pattern, center bore and offset with your own hub before buying.

Does the wheel come with tires or lug nuts?

Tires, valve stems and lug nuts are not included with this wheel. It is a single wheel, so those items need to be chosen separately.

How can I tell if a wheel has been damaged?

Look for cracks, bends or flat spots on the face, spokes and lip, and check whether the tire holds air at the bead. Any bend or crack means the wheel should be inspected before further use, and a damaged wheel should not be welded or repaired at home.
