Overview

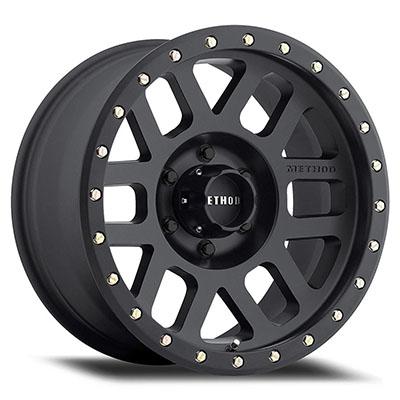

The Method Race Wheels 309 Grid is a 17×8.5 inch aluminum wheel with a 6 on 120 bolt pattern and part number MRWMR30978562500, finished in matte black. Its center bore is 83, its offset is 0, and its backspacing is 4.75. The grid face style identifies it within the MR309 Grid series.
Method Race Wheels develops its MR309 Grid wheels for off-road racing use and evaluates them with finite element analysis and field testing. The aim is a wheel that is lighter and stronger. Because it is a universal-fit model, the 6 on 120 pattern and 83 bore must be matched to the hub before mounting.
Key features
- Grid face style on a 17 by 8.5 inch aluminum wheel
- Six-lug 6 on 120 bolt pattern
- Matte black finish
- Center bore of 83
- Offset of 0 and backspacing of 4.75
- Engineering process described by Method Race Wheels as including finite element analysis
Hub-centric rings and bore fit
A center bore that is larger than the hub lets the wheel sit off-center, which can cause vibration. A hub-centric ring fills the gap so the wheel centers on the hub rather than on the lug studs. Rings are sized to the bore and hub diameter, so measure both before buying one, and check the fit before the wheel is torqued down.
Lug nut selection is part of the same job. The seat style has to match the wheel’s lug holes, and a loose lug can let a wheel work loose on the hub. After mounting, recheck torque after the first drives and again after tire rotation. Look for ring movement or vibration on the first road test.
- Measure hub diameter before buying a ring
- Match lug seats to the wheel holes
- Recheck torque after the first drives
- Inspect for vibration after mounting
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30978562500 |
| Series | MR309 Grid |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 6 on 120 |
| Center bore | 83 |
| Offset | 0 |
| Backspacing | 4.75 |
| Style | Grid |
| Finish | Black (title: Matte Black) |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
Universal Fit is the only fitment entry for this wheel. A 6 on 120 pattern is a fixed measurement, so the lug layout of the vehicle must be confirmed rather than assumed from the wheel name.
Verify the hub’s lug layout, center bore and offset against what the vehicle requires. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the 83 center bore against the hub diameter before mounting; if the hub is larger than the bore, a bore-matched hub-centric ring is the usual fix. Lug nuts should seat correctly against the wheel’s lug holes, because a loose lug can let a wheel work off the hub.
What’s included
Lug hardware, valve stems and tires are not part of this wheel.
