Method Race Wheels 704 Trail Series, 17x8.5 with 8 on 6.5 Bolt Pattern – Matte Black – MR70478580500

Method Race Wheels

$305.13In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 11:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 704 Trail Series, 17×8.5, 8 on 6.5 bolt pattern, part MRWMR70478580500
  • Matte black finish, windowed style, cast 356 aluminum
  • Offset 0, center bore 131, backspacing 4.75
  • Patent pending Bead Grip design
  • Universal Fit with no vehicle named; confirm fit for your year, model and trim

Description

Overview

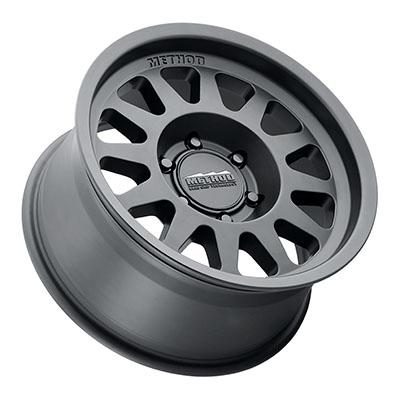

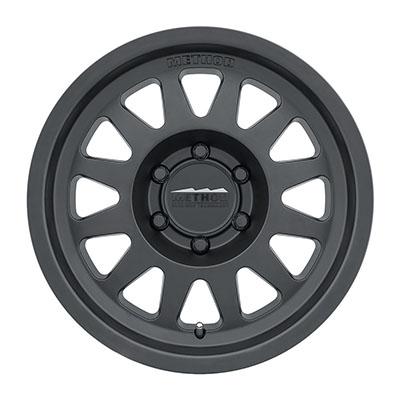

The Method Race Wheels 704 Trail Series 17×8.5 in matte black, with an 8 on 6.5 bolt pattern, is part MRWMR70478580500, a one-piece cast aluminum wheel for off-road trail use. It has 0 offset, a 131 center bore and 4.75 backspacing, with a windowed style. No vehicle is named for this wheel.

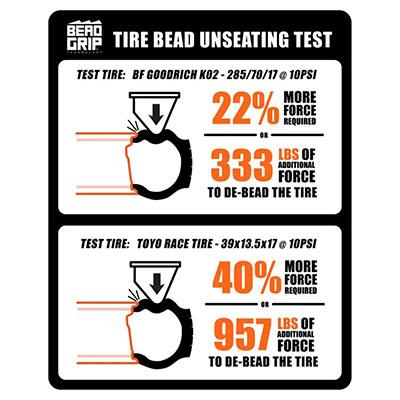

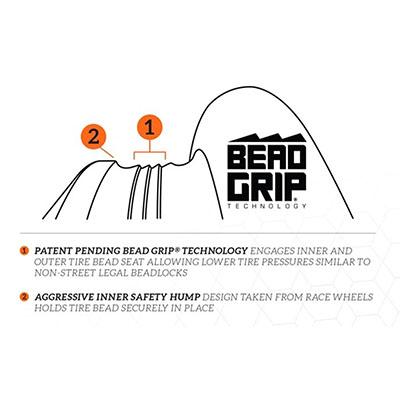

The 704 is built around MR704 Bead Grip, patent-pending technology that engages the tire bead seat to add grip at lower pressures. It has a reinforced inner lip from race wheel design and a safety hump on each bead seat to help resist de-beading. Each wheel was refined with Finite Element Analysis and field testing.

Key features

  • Cast 356 aluminum, one piece, with T6 heat treatment
  • Patent pending Bead Grip design for more tire grip when running lower air pressures
  • Reinforced inner lip from race wheel design
  • Safety hump on inner and outer bead seats to help stabilize the tire and reduce de-beading risk
  • Matte black finish with a windowed style
  • Finite element analysis and field-tested design.

Lower pressure and trail driving

Lower pressures change how the tire loads the rim, so bead grip matters more on trail setups. The tire bead rides on a seat that the wheel shapes, and at low pressure the tire can roll off that seat under hard cornering. The reinforced inner lip and the safety hump on each bead seat help keep the tire in place when that happens, though they do not replace a properly seated bead.

Eight-lug patterns are less common than five- or six-lug layouts, so the hub is the first thing to measure. Confirm the bolt pattern, center bore and offset against the hub before ordering. Once mounted, check lug torque after the first few trail runs and inspect the tire bead after any hard landing or rock contact.

  • Match 8 on 6.5 to the hub before ordering
  • Set trail pressure only after the bead seats
  • Inspect the lip and bead seat after rock contact
  • Plan tires and lug hardware as separate purchases

Specifications

Brand Method Race Wheels
Part number MRWMR70478580500
Series MR704 Bead Grip
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 8 on 6.5
Offset 0
Center bore 131
Backspacing 4.75
Style Windowed
Finish Matte Black
Construction Cast 356 aluminum, T6 heat treated
Fitment field Universal Fit

Vehicle fitment

The wheel is Universal Fit, so no single vehicle is named. Match the 8 on 6.5 bolt pattern, 17 inch diameter, 8.5 inch width, 0 offset and 131 center bore to your vehicle’s hub and clearance, and confirm your vehicle’s year, model and trim before ordering.

An 8 on 6.5 pattern is not interchangeable with a 6 on 5.5 hub, so the bolt pattern is the first thing to compare. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Bead Grip suits lower tire pressures, so set pressure using the guidance printed for the specific tire. The 0 offset and 4.75 backspacing set where the wheel sits relative to the hub, so check brake and suspension clearance before mounting.

What’s included

The wheel itself, with tires, lug hardware and caps planned as separate items.

Not included: Tires, lug nuts and other mounting hardware are separate parts.

SKU: MRWMR70478580500 Categories: ,

Questions & Answers

What is part MRWMR70478580500?

It is a Method Race Wheels 704 Trail Series wheel, 17x8.5 with an 8 on 6.5 bolt pattern in matte black. Method's data gives offset 0, center bore 131 and backspacing 4.75 for this part number.

Will this 8 on 6.5 wheel fit a 6 on 5.5 hub?

No. An 8 on 6.5 wheel will not bolt to a 6 on 5.5 hub, because the bolt patterns differ. Confirm fit for your vehicle's year, model and trim before mounting.

Does the 704 use Bead Grip?

Yes. The 704 line uses MR704 Bead Grip. It adds tire grip at lower air pressures and pairs with a reinforced inner lip and a safety hump on both bead seats.

Does the wheel include tires or lug hardware?

The wheel is the item described here, so tires, lug hardware and caps should be planned as separate items. Check the package contents against your installation before ordering.

What should I check if the tire slips on the bead at low pressure?

Let the tire down only to the pressure you used for seating, then re-inflate to a safe level and inspect the bead seat for dirt or damage. Clean the rim and tire bead, reseat the tire, and reduce pressure in small steps once it holds.
