Overview

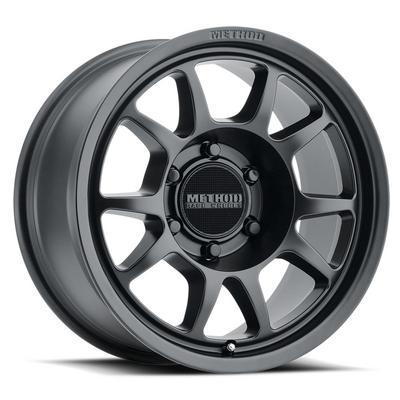

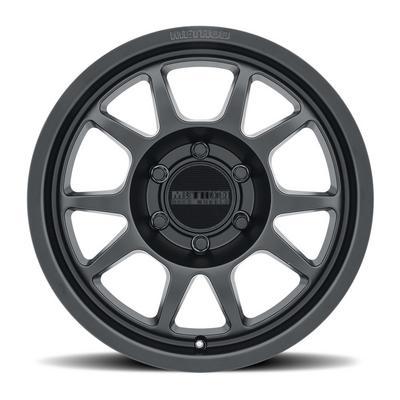

The Method Race Wheels 702 Series 16×8 with 6 on 5.5 bolt pattern and Matte Black finish, part number MRWMR70268060530, is a 16-inch aluminum spoke wheel for off-road builds. Its 30 offset and 5.6 backspacing separate it from the zero offset version of the same 702 Series wheel, so mounting position matters.
Method Race Wheels builds the 702 Series for off-road use. Each design goes through finite element analysis and field runs during development. The goal is a wheel that weighs less while staying strong. Compare the 106 center bore and bolt pattern with your hub before choosing it.
Key features
- Spoke style in Matte Black

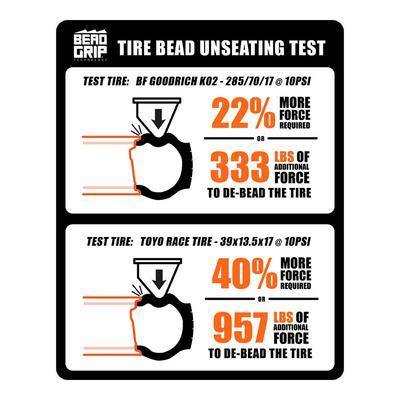

- MR702 Bead Grip series
- 16 inch diameter and 8 inch width
- 30 offset and 5.6 backspacing
- 106 center bore on a 6 on 5.5 bolt pattern
- Aluminum construction.
- Brand reports finite element analysis and field testing during design
Choosing the right offset
Offset decides how far the wheel sits inward or outward relative to the hub mounting face. On an off-road build, that position changes how the tire sits in the fender, how close it runs to suspension arms, and how much room the brake caliper has. A wheel with a different offset can look similar but behave differently once it is mounted.
Backspacing works alongside offset. It measures the distance from the mounting face to the inside lip of the wheel, which matters when a larger brake or a wider tire is planned. Before choosing a wheel for a build, compare both numbers with the existing wheel and with any spacers or lift components already installed.
Tire width and sidewall height also change how the wheel fills the fender. A wider tire on the same wheel can reduce clearance at full steering lock, so test fit the complete combination before committing to a final setup.
- Compare offset and backspacing with the wheel being replaced
- Check caliper and suspension clearance at full lock
- Test fit tire width before final mounting
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70268060530 |
| Series | MR702 Bead Grip |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | 30 |
| Backspacing | 5.6 |
| Style | Spoke |
| Finish | Matte Black |
| Construction | Aluminum |
Vehicle fitment
No specific vehicle is named for this wheel. Method gives Universal Fit, so hub and caliper compatibility must be verified on your own vehicle. Offset changes how far the wheel sits in the wheel well compared with a zero offset design, which can affect brake and fender room.
Owners with different hub or caliper layouts should compare the offset and backspacing numbers first. Confirm your vehicle’s year, model and trim before ordering.
What’s included
This entry covers the wheel only. Check the package contents against your installation before starting.
Not included: Tires and lug hardware are not included.
