Overview

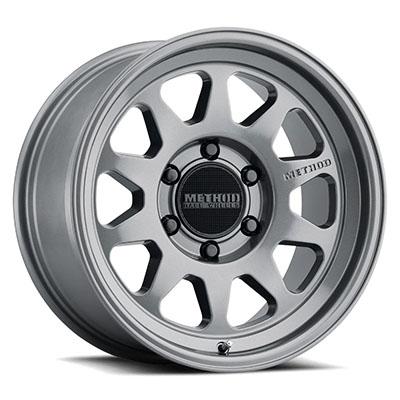

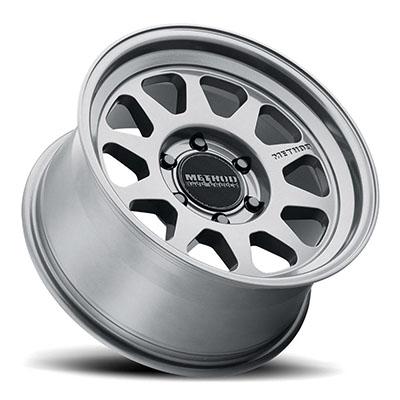

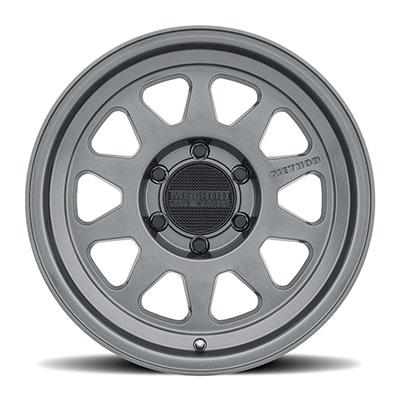

A titanium-finish Method Race Wheels MR316 at 17×8.5, this aluminum spoke wheel has a 5 on 5 bolt pattern and part number MRWMR31678550800. Its listed figures include a 72 center bore, 0 offset and 4.75 backspacing.
Method Race Wheels was set up to supply off-road racers with wheels designed around their sport. Its own description says every MR316 was refined through numerous Finite Element Analysis rounds and field tests, with the goal of cutting weight and raising strength.
Key features
- Titanium spoke wheel with aluminum construction
- 17-inch diameter and 8.5-inch width
- 5 on 5 bolt pattern, 72 center bore
- Zero offset, 4.75 backspacing
- Refined using Finite Element Analysis rounds and field tests
- Belongs to the MR316 series
Things to check
Start with the center bore, because it sets how the wheel centers on the hub and whether a centering ring is needed. Measure the hub’s pilot diameter and compare it with the bore before mounting. The five bolt holes must line up with the hub studs, and a pattern that is close but not exact will not seat correctly.
Offset and backspacing decide where the tire sits in the fender and against suspension parts. Turn the steering fully and check for contact, and look at any brake calipers. Tires are often replaced with the wheel, so confirm the tire’s overall size keeps clearance within the fender throughout its travel.
- Measure the center bore against the hub pilot
- Confirm the bolt pattern is an exact match
- Check clearance at full steering lock
- Inspect bolts and studs at each rotation
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR31678550800 |
| Series | MR316 |
| Style | Spoke |
| Finish | Titanium |
| Construction | Aluminum |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 72 |
| Offset | 0 |
| Backspacing | 4.75 |
| Fitment | Universal Fit |
Vehicle fitment
No make, model or year is attached to this wheel. Judge suitability from the 5 on 5 pattern, 72 center bore, 0 offset and 4.75 backspacing against your own vehicle.
No vehicle is confirmed for this wheel. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the 72 center bore with your hub before mounting the titanium wheel, because the 5 on 5 pattern alone does not confirm a match.
What’s included
No accessories are named with this wheel.
Not included: Tires are not supplied with the wheel and need to be arranged separately.
