Overview

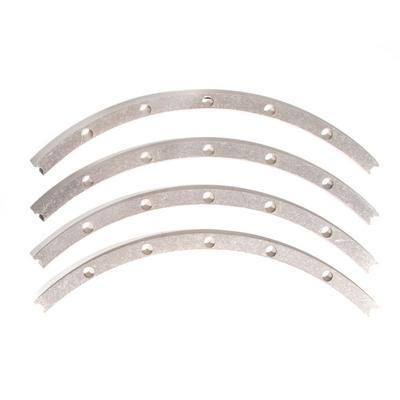

The Method Race Wheels 14-inch beadlock spacer kit (part number MRWSK-SPC1418-H) increases bead allowance by 1/8 inch (0.125 inch) on 14-inch beadlock wheels. Bead allowance is the room the wheel gives the tire bead, so a spacer is for tire beads that are too thick to seat.
Spacers are needed when an excessively thick bead causes assembly problems, such as bolt heads shearing off at low torque values. UTV beadlock wheels typically need spacer kits when mounting light truck tires. Truck wheels using the Method V.1 beadlock ring typically need them for tires 37 inches and up.
Key features
- 1/8 inch (0.125 inch) bead allowance increase on 14-inch wheels
- Addresses thick tire beads that cause assembly problems
- Covers the light truck tire mounting that Method says UTV beadlock wheels usually need
Checking the bead before mounting
Before mounting a tire on a beadlock wheel, check that the bead is not too thick for the bead allowance. A bead that is too thick can resist seating and push the clamping hardware beyond its limit, which is why the spacer exists.
Light truck tires on a UTV often have heavier beads than standard tires, so the wheel size alone is not the full picture. Compare the tire bead to the wheel’s bead seat, and take time to seat the bead evenly around the rim rather than forcing it.
Inspect the wheel, beadlock ring and spacer for cracks or wear before each mounting. Keep the hardware clean and use fresh fasteners when reassembling, since damaged bolts are a common cause of loose beadlock rings.
- Check bead thickness against the wheel before mounting
- Replace worn beadlock ring hardware
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWSK-SPC1418-H |
| Rim size | 14 inches |
| Bead allowance increase | 1/8 inch (0.125 inch) |
| Type | Beadlock spacer kit |
Vehicle fitment
Fit is matched by wheel size and beadlock design rather than by vehicle. Check the rim diameter and bead before ordering.
Method’s 15-inch and 17-inch spacers are a separate kit with a 3/16 inch (0.1875 inch) increase. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the tire bead and the wheel before mounting, and use the spacer only when the bead is too thick to seat.
What’s included
One spacer kit, as sold under this part number.
Not included: the wheel and tire.
