Overview

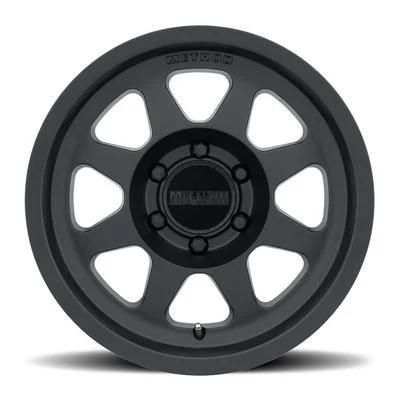

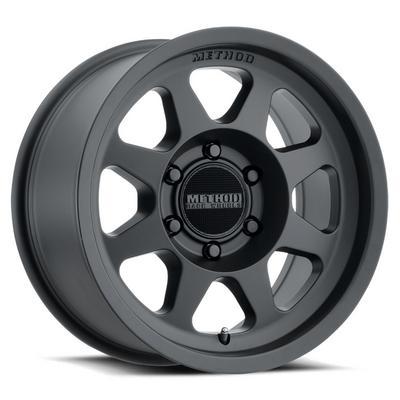

The Method Race Wheels 701 Trail Series 17×7.5 wheel, part number MRWMR70177556550, is a matte black windowed aluminum wheel with a 5 on 160 bolt pattern, center bore 65, offset 50 and backspacing 6.2. It is one of the MR701 Bead Grip wheels and is designed for off-road trail applications.

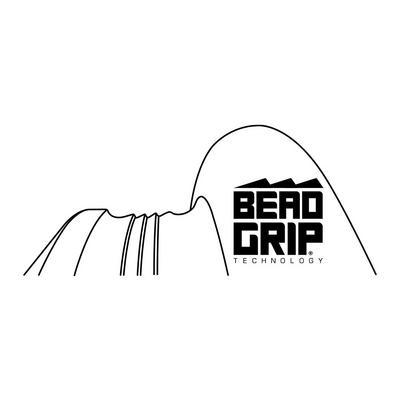

Method reports that the wheel is one-piece cast 356 aluminum, heat treated to T6. Its Bead Grip technology, which the company calls patent pending, is intended to help the tire bead bite into the bead seat at lower air pressures. A reinforced inner lip, which Method traces to race wheel engineering, works with a safety hump on both bead seats to keep the tire stable and resist de-beading. Method also says finite element analysis and field testing were used to lower weight while holding strength, and it positions the brand as focused on the off-road racing community.
Key features
- Cast 356 aluminum, one piece, T6 heat treated
- Patent pending Bead Grip tire seating design
- Reinforced inner lip based on race wheel design
- Safety humps on the inner and outer bead seat
- Matte black finish with windowed styling
- Engineered with finite element analysis and field tests
Trail wheel care and wear
Off-road wheels take repeated impacts from rocks, ledges and ruts, so a periodic look at the bead area and the inner lip is worthwhile. Bead seats can be scuffed or bent after a hard landing, and a slow leak that returns after reseating often points to a damaged bead seat rather than a bad valve. Ask a tire shop to check the seat when a tire keeps losing pressure.
Wheels that run lower pressures should be checked for seating every time the tire is aired back up. Because wheel offset changes where the tire sits relative to the fender and suspension, any change in tire width or lift height is worth a fresh clearance check before the next trip. Keep a note of the setup you tested so that later changes are easy to compare.
- Inspect bead seats after rock strikes
- Clean the inner lip to check for cracks
- Retorque lug nuts after the first drive
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70177556550 |
| Series | 701 Trail Series, MR701 Bead Grip |
| Wheel diameter | 17 inches |
| Wheel width | 7.5 inches |
| Bolt pattern | 5 on 160 |
| Center bore | 65 |
| Offset | 50 |
| Backspacing | 6.2 |
| Style | Windowed |
| Finish | Matte Black |
| Construction | Aluminum, one-piece cast 356, T6 heat treated |
Vehicle fitment
This is a Universal Fit wheel, so no make, model or year is tied to it. Whether it mounts to a hub depends on the 5 on 160 bolt pattern, center bore 65 and offset 50. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check brake caliper and suspension clearance with a test fit before mounting a tire, because a 50 offset changes how far the wheel sits inside the fender. Bead Grip is aimed at lower air pressures, so set pressures for the terrain with that in mind. A mounted wheel and tire is a safety-critical assembly and should be inspected for clearance and seating.
What’s included
The package covers one matte black wheel. Check the package contents against your installation before starting.
Not included: tire and any lug hardware. Check the package contents against your installation before starting.
