Method Race Wheels 306 Mesh, 17x8.5 with 5 on 5 Bolt Pattern – Matte Black – MR30678550500

Method Race Wheels

Shop Method Race Wheels 17x8.5 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR306 Mesh 17×8.5 wheel, part number MRWMR30678550500
  • 5 on 5 bolt pattern, 94 center bore, offset 0, backspacing 4.75
  • Matte black aluminum mesh face with 13mm decorative lip bolts
  • Black center cap included with the wheel

Description

Overview

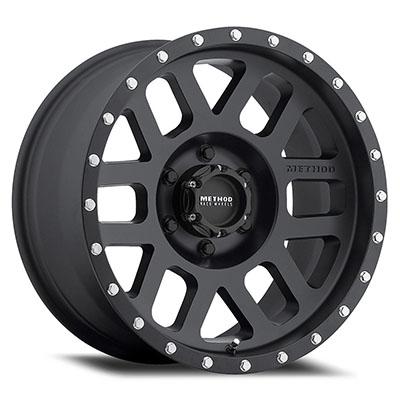

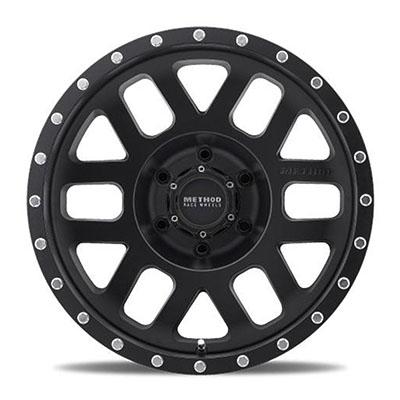

Method Race Wheels’ MR306 Mesh in 17×8.5 with a 5 on 5 bolt pattern is a matte black aluminum wheel, part number MRWMR30678550500. It measures 17 inches across and 8.5 inches wide, with a 94 center bore, 0 offset and 4.75 backspacing.

Method designs the mesh face as a nod to the original Standard. Decorative polished 13mm bolts run around the lip, and each one can be replaced. The MR306 family runs from 16 to 20 inches for trucks, Jeeps and SUVs, so each size needs its own measurement check.

Key features

  • Mesh face in a matte black aluminum finish
  • Decorative polished 13mm bolts around the lip, replaceable
  • Black center cap included with the wheel
  • Method name machined into one spoke
  • 5 on 5 bolt pattern with a 94 center bore
  • Offset 0 and backspacing 4.75
  • Designed for trucks, Jeeps and SUVs.

Mesh face cleaning and care

Mesh faces have more openings than spoke designs, so dirt and brake dust collect more easily between the bars. Use a soft brush and a mild cleaner, and rinse out the gaps before drying. Stiff brushes can scratch matte aluminum, and high-pressure washers can push grit into the lip seams.

Decorative lip bolts can be replaced if they corrode or lose their finish. Keep spare bolts of the same thread and head style, and check that each bolt sits flush. The center cap should be pressed in fully so it does not rattle, and it should be removed for cleaning around the hub.

  • Clean mesh gaps with a soft brush
  • Avoid abrasive pads on matte finish
  • Press center cap in fully

Specifications

Brand Method Race Wheels
Part number MRWMR30678550500
Series MR306 Mesh
Style Mesh
Finish Black (matte)
Construction Aluminum
Wheel diameter 17 Inches
Wheel width 8.5 Inches
Bolt pattern 5 on 5
Center bore 94
Offset 0
Backspacing 4.75
Lip bolts 13mm decorative polished, replaceable

Vehicle fitment

No make, model or year is attached, because the entry is Universal Fit. Measure your hub and compare the 5 on 5 pattern, 94 center bore and 0 offset with your vehicle before choosing this size.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 13mm lip bolts are decorative and do not replace lug nuts. Check the lug seat style before mounting. Measure the hub so the 94 center bore fits its diameter.

What’s included

A black center cap comes with the wheel.

Not included: No tire is part of this product.

SKU: MRWMR30678550500 Categories: ,

Questions & Answers

What bolt pattern and offset does this MR306 Mesh 17x8.5 use?

It uses a 5 on 5 bolt pattern with a 94 center bore, 0 offset and 4.75 backspacing. Compare those numbers with your hub and wheel well clearance before choosing this size.

Is this wheel made for a specific vehicle?

No. Fitment is Universal Fit, with no make, model or year attached. Most trucks, Jeeps and SUVs fall within the line's range, but the 5 on 5 bolt pattern and 94 center bore decide whether a given vehicle works.

Does the wheel come with a center cap?

Yes, a black center cap comes with the wheel. The Method name is machined into one spoke, and the 13mm lip bolts are decorative and replaceable.

Do decorative lip bolts affect how the wheel is secured?

No. Decorative lip bolts sit on the lip and do not hold the wheel to the hub. The lug nuts do that job. Keep the decorative bolts tight for appearance, and do not use them as a substitute for proper lug nut torque.
