Overview

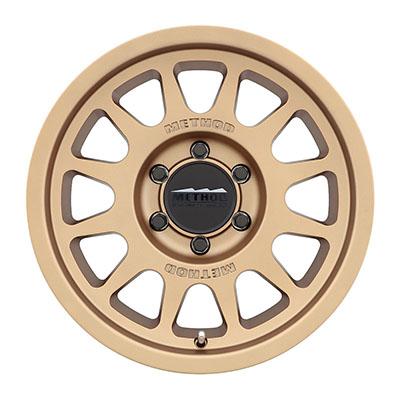

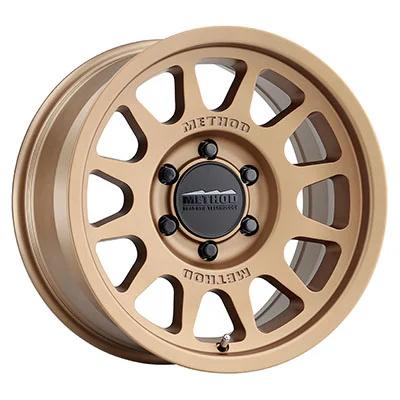

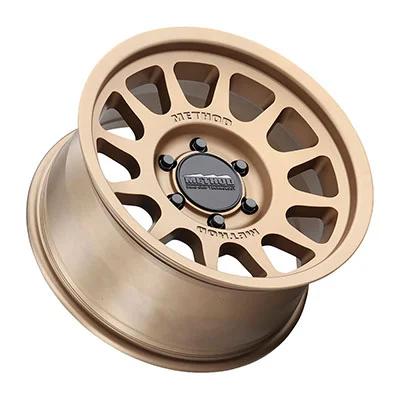

This Method Race Wheels MR703 17×8.5 in Bronze, part number MRWMR70378516900, is a windowed aluminum wheel with a 6 on 135 bolt pattern, an 87 center bore and 0 offset. It is part of the MR703 Bead Grip series. Anyone running a 6-lug hub on a 135 pattern should confirm that bolt pattern and center bore first.
This wheel line is built for off-road racing and trail use. Each design is developed with finite element analysis and field tested. The aim of the line is a wheel that weighs less while staying strong.
Key features
- Bronze finish
- Windowed style with 4.75 backspacing
- 6 on 135 bolt pattern
- Aluminum build in the MR703 Bead Grip series
- Design checked with finite element analysis and field testing, per the brand
Before you mount a wheel
Wheel fit is decided by several measurements working together. Bolt pattern sets whether the wheel can attach to the hub at all, center bore sets how the wheel centers on the hub, and offset and backspacing set how far the face sits from the mounting surface. Changing any one of them can move the wheel into contact with brake calipers, fenders or suspension parts, so it is worth checking all of them rather than only the diameter and width.
A windowed wheel is usually paired with tires chosen for the same use, and tire overall diameter affects speedometer reading and clearance. Lug nuts should match the seat style of the wheel, and a torque check after the first few drives is a sensible habit with any aluminum wheel. Inspect the bead area and the spoke windows after trail use for dents or cracks, and keep the valve stem area clean so the tire seals properly.
- Check caliper clearance with the tire fitted
- Match lug seat style to the wheel
- Re-torque lug nuts after the first few drives
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70378516900 |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 6 on 135 |
| Offset | 0 |
| Center bore | 87 |
| Backspacing | 4.75 |
| Style | Windowed |
| Finish | Bronze |
| Series | MR703 Bead Grip |
| Construction | Aluminum |
Vehicle fitment
Universal Fit is the only fitment designation. Compare the 6 on 135 pattern, 87 center bore and 0 offset with your hub and caliper clearance before mounting. Confirm your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The package is the wheel only. Check the package contents against your installation before starting.
Not included: Tires and lug nuts are needed separately.
