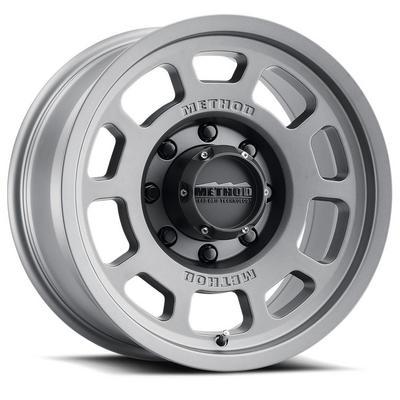

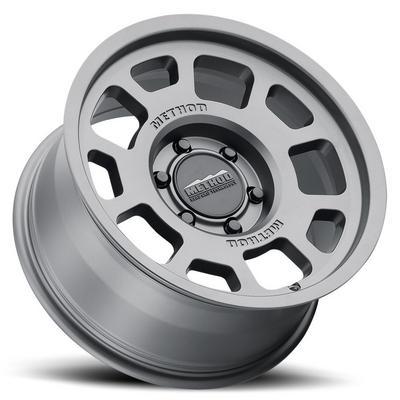

Method Race Wheels MR705, 17x8.5 with 5 on 5 Bolt Pattern – Matte Titanium – MR70578550800

Method Race Wheels

$578.97In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR705 17×8.5 split-spoke wheel, 5 on 5 bolt pattern, Matte Titanium finish.
  • Patented Bead Grip technology for grip at low tire pressures.
  • Solid A356 aluminum with T6 heat treatment; rated 2650 lbs. to 3640 lbs.
  • Universal Fit design; offset 0, center bore 72, backspacing 4.75.
  • Lifetime structural warranty stated by the manufacturer.

Description

Overview

The Method Race Wheels MR705 17×8.5 in Matte Titanium is a split-spoke aluminum wheel with a 5 on 5 bolt pattern, offset 0 and center bore 72. It is part number MRWMR70578550800 from the MR705 Bead Grip line, which Method builds around its patented bead retention design for running lower tire pressures off-road.

Method explains that lower tire pressure can widen the contact patch on loose surfaces and reduce the tire’s spring rate for a softer ride. The brand says its Bead Grip design keeps the bead engaged when pressure is low, so the tire stays on the rim. The wheel carries a Universal Fit designation, so the match to a given vehicle depends on bolt pattern and hub.

Key features

  • Patented Bead Grip technology that engages the tire bead for more grip at low tire pressures.
  • Solid A356 aluminum construction with T6 heat treatment.
  • Split 5-spoke design with 10 windows and a debossed METHOD logo on the face.
  • Aggressive safety hump on the bead seats to help prevent de-beading.
  • Reinforced inner lip, which Method says is taken from its MRW race wheel for added strength.
  • Snap-in center cap bearing an embossed METHOD Bead Grip logo.
  • Push-through center cap for 8-lug applications.
  • Load ratings of 2650 lbs. to 3640 lbs., and a lifetime structural warranty stated by the manufacturer.

Tire pressure and bead seating

Running a wheel at lower pressure changes how the tire sits on the rim. A bead that is not fully seated can let air escape or, in rough conditions, allow the tire to shift, so the first mount matters. Ask the installer to inflate slowly, check that the bead seats evenly on both sides, and confirm the valve stem is straight before driving.

Once the tire is on, lower pressure in small steps on the trail and watch how the sidewall responds. Lower pressure softens the ride and widens the footprint, but it also raises the chance of a sidewall pinch on rocks. Carry a tire gauge and a way to reinflate, and recheck pressure after each stop.

Bead retention designs work best when the tire and rim are matched. Keep tire size within the range your vehicle and wheel setup were planned around, and inspect the bead area after any hard hit.

Specifications

Brand Method Race Wheels
Part number MRWMR70578550800
Series MR705 Bead Grip
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 5 on 5
Offset 0
Center bore 72
Backspacing 4.75
Style Split Spoke
Finish Matte Titanium
Construction Solid A356 aluminum with T6 heat treatment
Load rating 2650 lbs. to 3640 lbs.

Vehicle fitment

Method marks this wheel Universal Fit and notes hub-centric fitments for common applications, so no single vehicle is named. Before ordering, compare the 5 on 5 bolt pattern, 0 offset, 4.75 backspacing and 72 center bore with your hub. A bore that does not match may need a hub-centric ring.

Before ordering, verify the year, model and trim that your vehicle needs.

Installation notes

Tire mounting on Bead Grip wheels is best left to a shop with experience seating the bead on this design. Once the tire is on, recheck clearance to brake parts and suspension, because backspacing and offset decide how the wheel sits.

What’s included

The wheel comes with a snap-in center cap bearing an embossed METHOD Bead Grip logo. Plan to source tires, lug nuts and valve stems separately if you need them.

SKU: MRWMR70578550800 Categories: ,

Questions & Answers

What does Bead Grip technology do on this MR705 wheel?

Bead Grip technology engages the tire bead for more grip at low tire pressures, helping the tire stay seated when pressure is reduced. This supports a larger contact patch on loose ground.

What load rating does part MRWMR70578550800 carry?

The load rating is 2650 lbs. to 3640 lbs. The wheel also carries a lifetime structural warranty, so confirm the warranty terms before ordering.

Will this 5 on 5 wheel fit my vehicle?

Fit depends on your hub. The wheel is Universal Fit, so match the 5 on 5 bolt pattern, 0 offset, 4.75 backspacing and 72 center bore to your vehicle before ordering. A 72 bore may need hub-centric rings.

How often should lug nuts be rechecked on this type of wheel?

Recheck lug nut torque after the first few drives and again after the first trail outing. Then check them periodically, especially after tire changes or heavy off-road use, since a loose nut can change how the wheel seats against the hub.
