Overview

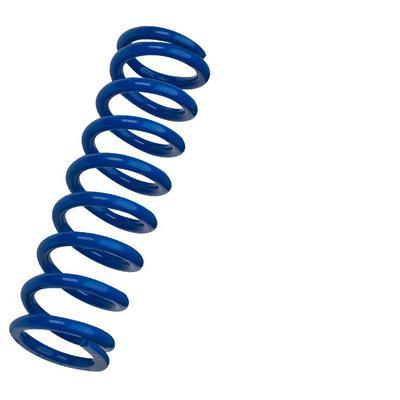

The King Shocks 3 x 18-inch 600 lb coil spring (part number SPR3-18-600) is an 18-inch long, 3-inch coil spring with a 600-pound rate for coilover shocks. It is made in the USA from chrome silicon wire.
King states its springs are wound for off-road use and are not repackaged car springs. Its spring rates, wire diameters and coil lengths were developed through testing on many types of terrain, and the company cites its designs used in Baja and Dakar racing.
Because the spring is 18 inches long, its rate and length need to match the shock travel and the vehicle’s load before it is fitted.
Key features
- 600-pound spring rate.
- 3 by 18-inch size
- Chrome silicon wire
- Made in the USA
- Wound for off-road use
Checking length and clearance
An 18-inch coil spring is longer than many shorter coilover springs, so its free length has to fit the shock body and the space around it without rubbing or binding. Check the spring perch position, the bump stop and the room the spring has when the suspension compresses, since a long spring can reach the frame or body sooner than expected.
Length also changes preload and the way the spring sits when the vehicle is loaded. Measure the installed height before and after the install, and make sure the spring stays seated square on both ends. A spring that tilts in its perch wears quickly and can load the shock unevenly.
- Confirm spring perch position before assembly
- Check travel against the bump stop
- Recheck seating after the first drive
Specifications
| Brand | King Shocks |
|---|---|
| Part number | SPR3-18-600 |
| Size | 3 x 18 inches |
| Rate | 600 pounds |
| Wire | Chrome silicon |
| Origin | Made in the USA |
Vehicle fitment
Fit depends on the shock body, spring length and the vehicle’s load. Confirm all three, and your vehicle’s year, model and trim, before ordering.
Confirm the length and rate against the shock and the vehicle before buying. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check that the 18-inch length fits the shock’s spring perch and the available space before the spring is installed. Use a proper spring compressor for a coilover spring.
What’s included
One coil spring, 3 by 18 inches, 600 pounds.
