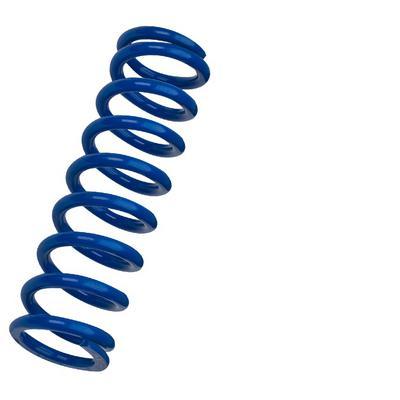

King Shocks 3 x 12″ 200Lbs Coil Spring for Coilover Shock – SPR3-12-200

King Shocks

Shop King Shocks Coil Springs on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • King coilover spring, 3 x 12 inches, 200 lb rating
  • Chrome silicon wire, made in the USA
  • Lifetime warranty to the original purchaser

Description

Overview

The King Shocks 3 x 12-inch 200 lb coil spring (part number SPR3-12-200) is a 3 by 12-inch coil spring rated at 200 pounds for use on coilover shock absorbers. It is made in the USA from chrome silicon wire.

King says its springs are wound for off-road work rather than repackaged from car springs. Its spring rates, wire diameters and coil lengths were developed through testing on many types of terrain, and King says its designs have been raced in Baja and Dakar.

Match the 200-pound rate and 12-inch length to the coilover shock and the vehicle’s load before ordering.

Key features

  • 200-pound spring rate
  • 3 by 12-inch size
  • Chrome silicon wire
  • Made in the USA

Setting the right rate

Spring rate describes how much force the spring needs to compress a set distance. A stiffer rate holds up more weight and resists sag under load, while a softer rate gives a more compliant ride on light loads. Picking the rate is a matter of matching the spring to the vehicle’s weight and how it is used, not choosing the heaviest option.

Length matters as much as rate. A coilover spring must fit the shock body and leave the right amount of preload and travel. A spring that is too short or too long changes how the shock works at the top and bottom of its stroke, so measure the installed length before the shock is closed up.

  • Compare spring rate with vehicle weight and load
  • Check the free length against the shock body
  • Use a spring compressor for every install step

Specifications

Brand King Shocks
Part number SPR3-12-200
Size 3 x 12 inches
Rate 200 pounds
Wire Chrome silicon
Origin Made in the USA

Vehicle fitment

Fit depends on the coilover shock body and the vehicle’s application, so confirm both before ordering.

Match the spring to the coilover shock body and the vehicle’s application before buying. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A coilover spring has to match the shock’s body and travel, so verify the length and rate before installing. Coil springs under load must be handled with a proper spring compressor.

What’s included

One coil spring, 3 by 12 inches, 200 pounds.

Questions & Answers

Does the King Shocks SPR3-12-200 fit my Jeep?

Fit depends on the coilover shock and the vehicle's application. Confirm both, and confirm your vehicle's year, model and trim, before buying.

What spring rate is the SPR3-12-200?

The spring is rated at 200 pounds and measures 3 by 12 inches. It is the lightest rate in this King group, so it suits lighter loads and shorter travel.

Are King springs made in the USA?

Yes. The spring is made in the USA from chrome silicon wire to King's own specifications. Those specifications are set for off-road coilover use, so the spring is wound for that work rather than repackaged from car springs.

Should the shock be serviced when the coil spring is changed?

It is a good time to inspect it. A new spring changes the load the shock sees, so check for leaks, worn bushings and loose mounts, and confirm the spring seats square before the first drive.

How can you tell a coil spring has lost its rate?

Look for a vehicle that sits lower than before, uneven ride height from side to side, or visible coil gaps and corrosion. Comparing the free length with a known good spring helps confirm sag.
