King Shocks 2.5 Series Wide Range Compression Adjuster Shock Kit – 25001-177A

King Shocks

Shop Jeep Wrangler TJ Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2004 to 2006 Jeep Wrangler LJ and 1997 to 2006 Jeep Wrangler TJ
  • Adjustable rear shocks with a billet compression knob
  • 20 positive clicks of compression adjustment
  • Large diameter micro-polished shafts
  • Sold as a pair

Description

Overview

The King Shocks 25001-177A is a 2.5 Series rear shock kit with a wide range compression adjuster, sold as a pair. It fits the 2004 to 2006 Jeep Wrangler LJ, including the Unlimited and Unlimited Rubicon versions, and the 1997 to 2006 Jeep Wrangler TJ.

Compression is set with a billet knob offering 20 positive clicks, so damping changes in measured steps. The shafts are large diameter and micro-polished. The remote reservoirs connect with Aeroquip high pressure hoses and are made of 6063 aluminum alloy. The damping curve and spring rate were developed through real-world testing for these vehicles.

Key features

  • Wide range compression adjuster with a billet knob
  • 20 positive clicks of adjustment
  • Large diameter micro-polished shafts
  • Aeroquip high pressure hoses on remote reservoirs
  • 6063 aluminum alloy reservoirs
  • Rear position, sold as a pair

Tuning rear compression

Rear shocks control how the axle moves over bumps and how quickly the body settles after a dip or landing. Compression damping sets the resistance when the shock is pushed in, which matters most when the rear wheels hit ruts, ledges and washouts on the trail. A firmer setting can keep a loaded Jeep steadier, while a softer setting can help the axle follow uneven ground. The right choice depends on tire size, payload and how often the vehicle leaves pavement.

Before changing anything, mark the knob position so you can return to a known baseline. Make small adjustments, drive the same stretch of road, and pay attention to how the body moves over each bump. Worn bushings or a leaking shock can hide the effect of any setting, so inspect the mounts and the shock body during routine service. After a lift or a tire change, re-check the setting because the shock works at a different length.

Specifications

Brand King Shocks
Part number 25001-177A
UPC 70000544992
Position Rear
Shock series Performance Series
Adjustment Wide range compression adjuster with billet knob
Adjustment clicks 20 positive clicks
Shaft Large diameter, micro-polished
Hoses Aeroquip high pressure, on remote reservoirs
Reservoir material 6063 aluminum alloy
Sold as Pair

Vehicle fitment

It fits the 2004 to 2006 Jeep Wrangler LJ, including the Unlimited and Unlimited Rubicon versions, and the 1997 to 2006 Jeep Wrangler TJ in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims.

Wrangler JK and JL models, and Wrangler years outside the ranges above, are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Count the clicks on the billet knob and write down your setting before removing the shock, so you can return to the same compression after installation. Confirm that the remote reservoir hoses route cleanly before tightening the mounts. Support the rear of the vehicle securely on stands during the work.

What’s included

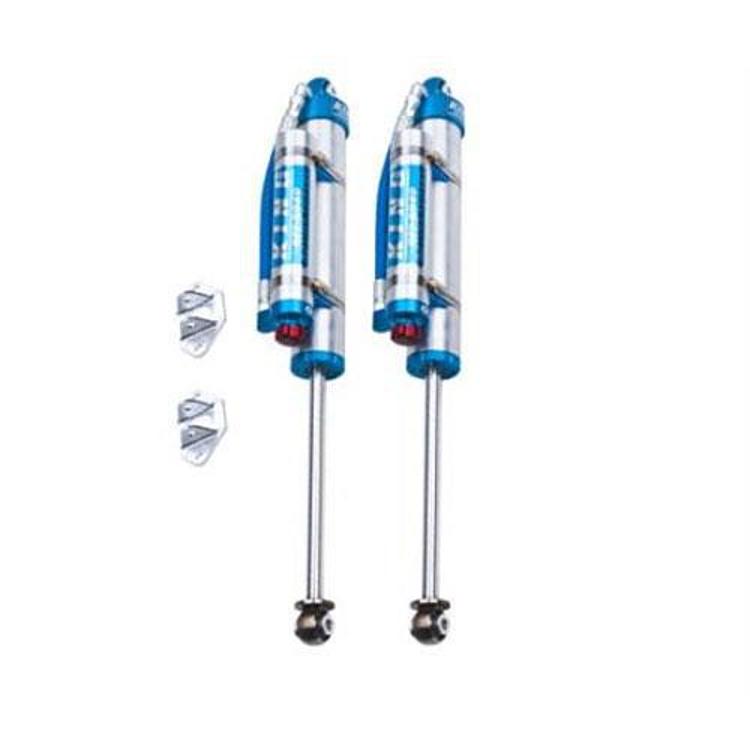

A pair of rear wide range compression adjuster shocks with billet knobs and remote reservoirs with Aeroquip high pressure hoses.

SKU: KST25001-177A Category:

Specification

Shipping weight 35.00 lbs
Package dimensions 39.00 × 17.00 × 8.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the King Shocks 25001-177A fit a 2004 Jeep Wrangler LJ?

Yes. It fits the 2004 to 2006 Jeep Wrangler LJ in the Unlimited and Unlimited Rubicon versions. Confirm your year and trim before ordering, since Wrangler models outside the covered years do not fit this kit.

How is the compression adjusted on this shock?

It uses a wide range compression adjuster with a billet knob offering 20 positive clicks. Because each click is a fixed step, you can set compression and return to a setting you have recorded.

Does this kit have a lift height rating?

Confirm lift compatibility for your setup before installing these rear shocks on a lifted Jeep. Measure your current rear ride height and compare it with your planned lift before ordering, so the shocks match the height you run.

What does 2.5 Series mean in the name?

2.5 Series is the name of the shock line this kit belongs to. Confirm the body diameter and overall dimensions against your installation before ordering, since the shock measurements should match your mounting points.

How often should rear shocks be inspected?

Inspect them at every oil change and after hard off road trips. Look for oil on the shock body, cracked or loose mounts, worn bushings, and a ride that keeps bouncing after a dip. Any of those signs means the shock needs service or replacement.
