G2 GM 10.5 Inch 14 Bolt Ball Milled Aluminum Cover – 40-2023MB

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • GM 14 bolt 10.5-inch rear axle
  • Cast lightweight aluminum with black powder coat
  • Filler, fill-level and drain plugs

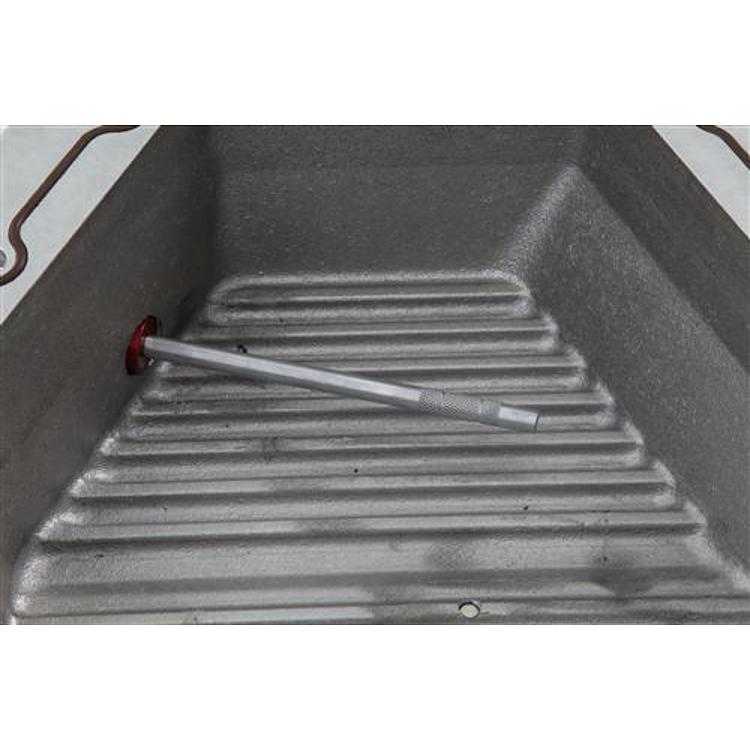

  • Easy-to-use dipstick

Description

Overview

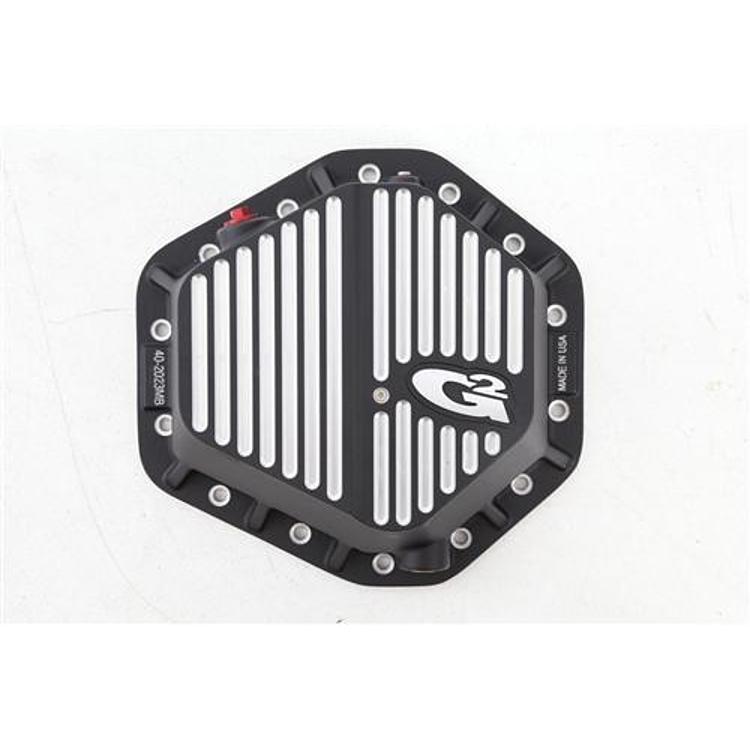

The G2 GM 14 bolt 10.5-inch ball milled aluminum cover (part number 40-2023MB) is a rear cover for GM 14 bolt 10.5-inch axles. It is cast from lightweight aluminum and finished in black powder coat.

The cover has ball milled reinforcing ribs, is heat treated and shot peened against direct hits, and has a fully machined seal surface. G2 says its design helps cool the gear oil, which the brand links to prolonged bearing life.

A 14-bolt GM rear housing is larger than the 10-bolt designs, so this cover is sized to the 10.5-inch axle. The plugs and dipstick are the service features that make routine gear oil checks possible.

Key features

  • Ball milled reinforcing ribs
  • Heat treated and shot peened
  • Fully machined seal surface
  • Convenient filler plug and fill-level plug
  • Drain plug for mess-free service
  • Easy-to-use dipstick

Keeping the rear axle sealed

A rear differential cover protects the gears from road debris and keeps the gear oil where it belongs. The gasket and bolts do most of the sealing work, so the mounting surface needs to be clean and flat before the cover goes back on. Torque bolts in a crisscross pattern to avoid warping the aluminum.

Rear axles often see the most water and mud on trail runs, which makes the seal important. Check the cover and fill plugs after water crossings, and look for oil on the housing or brake area. Early correction, like tightening bolts or replacing the gasket, is far cheaper than a dry axle.

  • Clean the housing flange before resealing
  • Use a new gasket when the cover is removed
  • Check plugs after water crossings
  • Look for oil seepage around the cover edge

Specifications

Brand G2 Axle and Gear
Part number 40-2023MB
Axle location Rear
Axle type GM 14 bolt 10.5 inches
Material Aluminum
Oil capacity Extra capacity
Finish Black powder coat

Vehicle fitment

This is an axle part for GM 14 bolt 10.5-inch rear axles. It is written for the axle, not a vehicle, so match the 14-bolt housing before ordering.

Installation notes

The drain plug is designed for mess-free service, and the fill-level plug gives an accurate fill level. Confirm the axle size before fitting, since the cover is made for the 10.5-inch housing only.

SKU: G/240-2023MB Category:

Specification

Shipping weight 8.00 lbs
Package dimensions 12.00 × 12.00 × 4.80 in
brands

Questions & Answers

Which GM axle is the 40-2023MB cover made for?

It is made for GM 14 bolt 10.5-inch rear axles. Check the axle size before ordering, since the cover is sized to fit that housing and not a vehicle.

Does the cover have a drain plug?

Yes. It has a drain plug for mess-free service, along with a filler plug, a fill-level plug for an accurate fill level and an easy-to-use dipstick for simple maintenance.

What finish does the cover have?

The cover is black powder coated over cast lightweight aluminum. It is heat treated and shot peened to handle direct impact, and the seal surface is fully machined.

Do I need to change the gear oil when the cover is removed?

Not always, but draining and refilling is a sensible step when the cover is off for service. Check the oil for metal particles or a burnt smell before refilling to the fill-level plug.

How should the drain and fill plugs be tightened?

Snug each plug to the value in your service instructions, then check for seepage after a short drive. Overtightening can strip threads in the aluminum cover, so avoid forcing the plug.
