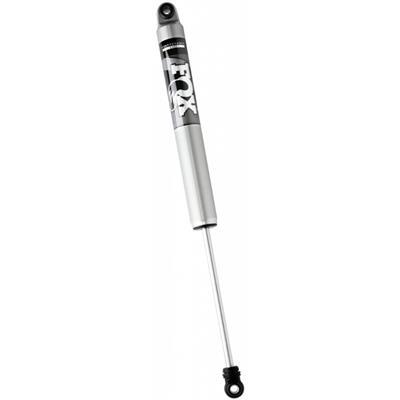

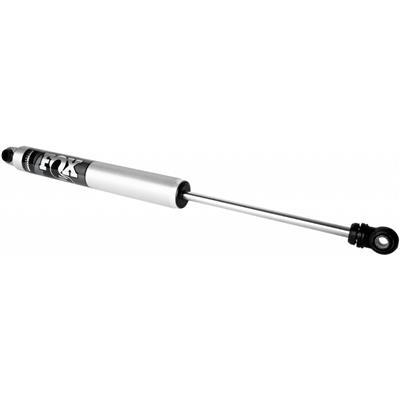

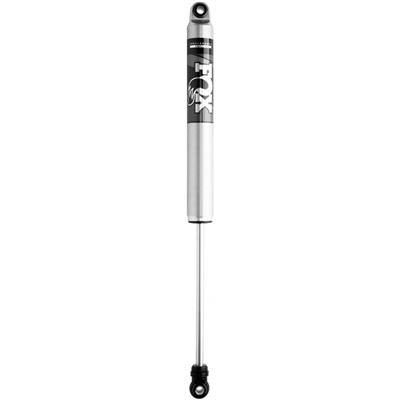

Fox Performance Series 2.0 Smooth Body IFP Shock – 985-24-151

FOX

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2017–2022 Ford F-250 and F-350 Super Duty trucks
  • Rear position, stem top and eyelet mounts, 2.0 in body diameter
  • Internal floating piston monotube design with a nitrogen gas charge
  • Metal-impacted aluminum body that resists rust and sheds heat
  • Part number FOX985-24-151

Description

Overview

The FOX Performance Series 2.0 Smooth Body IFP Shock, part number FOX985-24-151, is a rear monotube shock absorber for 2017–2022 Ford F-250 and F-350 Super Duty trucks. Its internal floating piston (IFP) keeps the shock oil apart from the nitrogen gas chamber, so the damping stays consistent as the shock works.

FOX builds the shock for a comfortable ride on pavement that still handles predictably on rough ground. The aluminum body is formed by metal impact, which adds cooling capacity and will not rust, and the damping piston uses high flow valving tuned to the application.

Key features

  • Internal floating piston design separates shock oil from the high-pressure nitrogen gas chamber.
  • The IFP layout eliminates oil aeration, so the factory-tuned valving performs as designed.
  • High flow damping piston matched with application-specific valving.
  • Metal-impacted aluminum body increases cooling capacity and resists rust.
  • Damping is set for comfortable on-road ride with predictable control off-road.

Before you buy a rear shock

A rear shock controls how the axle moves over bumps and under load, so it affects stability under braking and how the truck settles when carrying weight. Worn units often leak oil along the shaft, make knocking sounds over bumps, or let the body bounce after a dip. Inspect the body, seals and both mounts during routine service, and replace bushings that are cracked or loose.

When choosing a replacement, match the mounting style and body size to the existing shock before comparing damping features. Rear shocks are often replaced in pairs so both sides damp the same way. Heavier towing or a lift may call for a different setup, so confirm fit for your vehicle’s year, model and trim before ordering.

  • Check for oil seepage along the shaft
  • Listen for knocking over rough ground
  • Inspect mounts and bushings for wear

Specifications

Brand FOX
Part number FOX985-24-151
Shock series 2.0 Performance Series
Position Rear

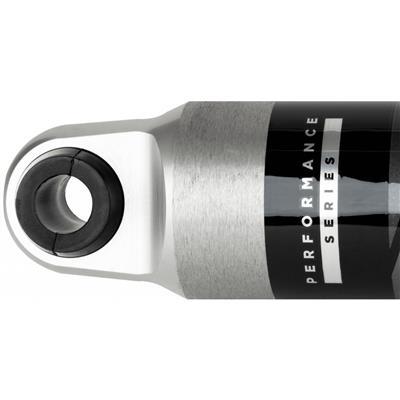

Top mount Stem top

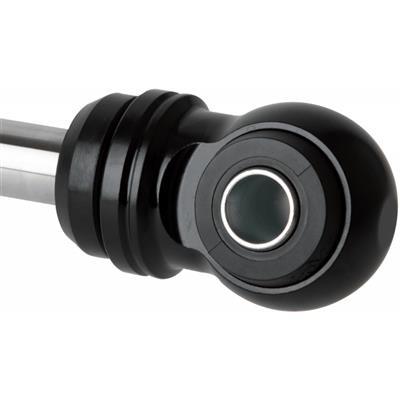

Bottom mount Eyelet
Body diameter 2.0 in
Shock type Monotube, IFP
Charge Gas charged

Vehicle fitment

It fits 2017–2022 Ford F-250 and F-350 Super Duty trucks across their trim levels. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

One rear shock absorber. Check the fastener kit against your installation before fitting.

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2017–2022King Ranch, Lariat, Limited, Platinum, XL, XLT
Ford F-350 Super Duty2017–2022King Ranch, Lariat, Limited, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the FOX985-24-151 fit a 2023 F-250?

The fitment listed stops at 2022, so a 2023 or later F-250 is not on the list. Check your model year against the 2017 to 2022 range before ordering, and confirm the mounts match your truck.

Is this shock for the rear axle?

Yes. It mounts at the rear, with a stem top upper mount, an eyelet lower mount and a 2.0 in body diameter. Measure your current shock's mounts before ordering.

What does the floating piston do?

The floating piston separates the shock oil from the nitrogen gas chamber. That separation limits oil aeration, so the factory-tuned valving performs as designed, even during long runs on rough ground.

What is the shock body made from?

The body is metal-impacted aluminum. The forming process adds cooling capacity and resists rust, which helps on trucks that run hot or see wet, salty roads.

How can I tell when a rear shock is worn?

Look for oil seepage along the shaft, a bouncy ride after bumps, or knocking noises over rough ground. Check the mounts for play too, and replace the pair if one side is worn.
