Fabtech 6 Inch RTS Lift Kit w/Stealth Shocks – K1045M

Fabtech

Shop GMC Sierra 2500 HD Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2001–2010 Silverado and Sierra 2500 HD and 3500 models, with Classic versions
  • 6-inch RTS system keeps the torsion bars in the stock location
  • Stealth monotube shocks included
  • Installation requires welding
  • Not for Quadrasteer models; some loss of turning radius

Description

Overview

The K1045M is a 6-inch RTS lift with Stealth monotube shocks for 2001–2010 Chevrolet Silverado and GMC Sierra 2500 HD and 3500 trucks, including the 2007 Classic versions. Its patent pending torsion bar brackets keep the bars raised in the stock location, which gives more ground clearance at the frame.

The high arched crossmembers are built from 1/4-inch thick steel with tubular cross braces, and a 1/4-inch steel front differential skid plate is included. The RTS brackets use unitized bracketry for strength and a shorter installation. Installation requires welding. The kit does not fit Quadrasteer models, and it can reduce turning radius.

Key features

  • 6-inch lift height, range 5 to 6.99 inches
  • Patent pending torsion bar brackets.
  • Unitized bracketry
  • 1/4-inch steel high arched crossmembers with tubular cross braces
  • 1/4-inch steel front differential skid plate
  • Stealth monotube shocks included

Choosing the right setup

A welded RTS installation changes the front end more than a bolt-on kit, so the work should be planned before the truck is taken apart. Tire choice matters here: taller tires increase the load on the drivetrain and can rub at full steering lock. Pick tire sizes and wheel backspacing together, and confirm clearance with the wheels mounted before the truck is driven on the road.

Steering geometry also shifts with a raised front. Expect a wheel alignment after installation and watch for steering wander or uneven tire wear in the first weeks of driving. Stealth monotube shocks are sized for the raised geometry, so replace them with the same design if they wear. Keep the crossmember welds and skid plate fasteners in view during regular inspections.

Specifications

Brand Fabtech
Part number K1045M
UPC 700007232781
Lift height 6 inches (range 5 to 6.99 inches)
Suspension type Knuckle, RTS torsion bar brackets
Rear lift method Lift blocks and U-bolts
Tire and wheel fit 315/75R16 on 16×8, 315/70R17 on 17×8, 325/65R18 on 18×8, 35/12.50R20 on 20×8.5; minor trimming
Shocks Stealth monotube shocks
Installation Requires welding

Vehicle fitment

It fits 2001–2010 Chevrolet Silverado 2500 HD, 2001–2006 Chevrolet Silverado 3500, 2007–2010 Chevrolet Silverado 3500 HD and 2001–2010 GMC Sierra 2500 HD, along with the Classic versions and the GMC 3500 models in the same years.

Quadrasteer models are not covered, and larger tires cannot be installed on OEM wheels. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires welding, so it is not a bolt-on job. Expect some loss of turning radius with these tire sizes, and plan on minor trimming with each tire and wheel combination.

What’s included

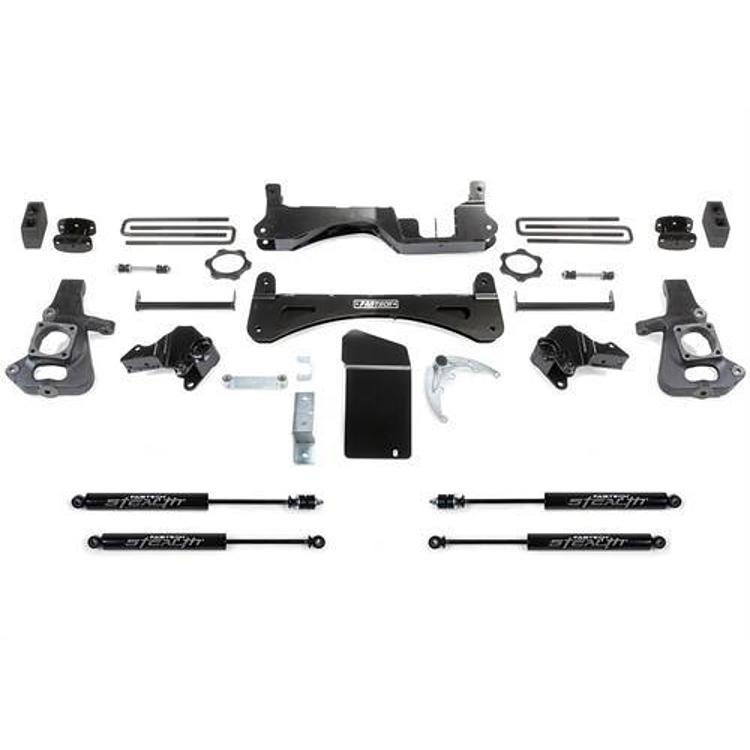

RTS torsion bar brackets, high arched crossmembers, the 1/4-inch steel front differential skid plate, the rear lift blocks with U-bolts and Stealth monotube shocks.

SKU: FABK1045M Category:

Specification

Shipping weight 260.30 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 2500 HD2001–2010Base, LS, LT, LTZ, WT
Chevrolet Silverado 2500 HD Classic2007LS, LT, WT
Chevrolet Silverado 35002001–2006Base, LS, LT, WT
Chevrolet Silverado 3500 Classic2007LS, LT, WT
Chevrolet Silverado 3500 HD2007–2010LT, LTZ, WT
GMC Sierra 2500 HD2001–2010Base, SL, SLE, SLT, WT
GMC Sierra 2500 HD Classic2007SL, SLE, SLT, WT
GMC Sierra 35002001–2006Base, SL, SLE, SLT, WT
GMC Sierra 3500 Classic2007SL, SLE, SLT, WT
GMC Sierra 3500 HD2007–2010SLE, SLT, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K1045M require welding?

Yes. Installation requires welding, so this is not a bolt-on system. Plan for the welding work and fit checks before the truck is driven.

Will the K1045M fit a Quadrasteer truck?

No. The kit does not fit models with Quadrasteer. Its fitment covers the 2001–2010 Silverado and Sierra 2500 HD and 3500 trucks.

What tire size works with the K1045M?

Fabtech lists 315/75R16 on 16x8, 315/70R17 on 17x8, 325/65R18 on 18x8 and 35/12.50R20 on 20x8.5 wheels, all with minor trimming.

Should a steering stabilizer be added to this lift?

Often, yes, on a lifted truck with larger tires. A steering stabilizer helps control steering feedback and wander at speed. It is a separate purchase and should be matched to the steering setup after the lift is complete.
