Overview
The Fabtech K2160 is a 4-inch budget lift with performance shocks for the 2008–2015 Ford F-250 and F-350 Super Duty. The front uses coil spring spacers with drop brackets, and the rear uses lift blocks with a U-bolt kit. The lift height range is 3 to 4.99 inches.
The kit is a budget option in the Fabtech range, which also includes crawler, radius arm and coilover conversion systems. Confirm tire sizes and installation steps for your vehicle before ordering.
Key features
- 4-inch budget lift
- Front coil spring spacers
- Drop brackets at the front
- Rear lift blocks with U-bolt kit
- Performance shocks included
Choosing the right setup
A spacer lift changes the height the springs and shocks work at, so the rest of the suspension has to adjust. Coil spring spacers raise the front without replacing the springs, and drop brackets keep the upper shock and sway bar mounts closer to their factory positions. Rear lift blocks work the same way on the leaf springs, with U-bolts holding the axle in its new position.
Before buying, consider how you plan to use the truck. Heavier loads and towing put more strain on the shocks and blocks, so check that the new hardware suits your payload. Tire size also matters, because a taller tire on a lifted truck can rub on fender edges and needs a fitment check.
- Re-torque U-bolts after the first few drives
- Inspect brake lines and sway bar links after installation
- Plan an alignment once the lift is complete
- Check ball joints and tie rod ends for play before lifting
- Watch for leaking shocks and worn bushings during routine checks
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K2160 |
| UPC | 70000585592 |
| Lift height | 4 inches (range 3 to 4.99 inches) |
| Suspension type | Spacer |
| Front lift | Coil spring spacers with drop brackets |
| Rear lift method | Lift blocks and U-bolts |
| Shocks | Performance shocks included |
Vehicle fitment
It fits the 2008–2015 Ford F-250 Super Duty and the 2008–2015 Ford F-350 Super Duty.
The list covers the Super Duty trucks in those years only, and the Ford F-150 and Ranger are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the tire fit and installation steps for your vehicle before starting the install.

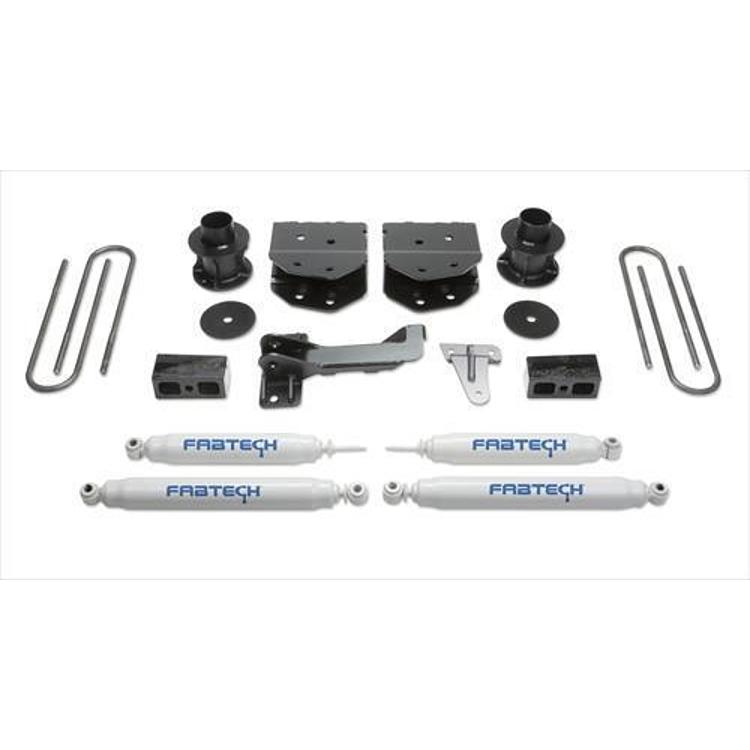

What’s included
Front coil spring spacers, drop brackets, rear lift blocks with a U-bolt kit and performance shocks.
