Fabtech 3.5 Inch Lift Kit w/Rear Block Kit & Rear Stealth Shocks – K1050M

Fabtech

Shop GMC Sierra 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Lists the 2007–2013 Chevrolet Silverado 1500 and GMC Sierra 1500
  • 3.5-inch spindle lift with direct-replacement spindles
  • Stealth monotube shocks and rear Stealth shocks
  • 1-inch rear block and U-bolt kit
  • Clearance for 33-inch tires

Description

Overview

The Fabtech K1050M is a 3.5-inch spindle lift with Stealth monotube shocks. It fits the 2007–2013 Chevrolet Silverado 1500 and the 2007–2013 GMC Sierra 1500. The spindles are direct replacements for the factory part and keep the stock ball joints in use.

The lift increases vehicle height and adds front ground clearance while keeping a ride close to stock. It has clearance for 33-inch tires. The rear is lifted with a 1-inch block and U-bolt kit. Recommended tires are 285/70R17 on 17×8, 325/60R18 on 18×9 and 325/50R20 on 20×9 wheels, each with 5-inch backspacing and minor trimming. Expect some loss of turning radius.

Key features

  • 3.5-inch lift height, range 2.5 to 3.5 inches
  • Direct-replacement spindles
  • Stock ball joints retained
  • 1-inch rear block and U-bolt kit
  • Stealth monotube shocks and rear Stealth shocks
  • Clearance for 33-inch tires

Steering and driveline notes

Any spindle lift changes the geometry at the front wheels, so steering feel and tire wear shift after installation. Taller spindles move the tire further from the hub and can change the scrub radius, which is why a loss of turning radius is common with large tires. A front-end alignment is needed once the kit is in, and the caster should be checked as well.

Lifting the rear with blocks and U-bolts changes pinion angle, so the driveshaft angles should be inspected. Worn or stiff ball joints, tie rod ends and steering stabilizer parts are often replaced together with a lift because they carry more load at the new height. Look for play at the wheels, uneven tread wear and clicks over bumps as signs the front end needs attention.

Recheck the lug nuts and all fasteners after the first few drives, since new components settle under load. Keep spare tire clearance in mind when turning at full lock, because contact with the fender can happen with larger tires.

Specifications

Brand Fabtech
Part number K1050M
UPC 700007232801
Lift height 3.5 inches (range 2.5 to 3.5 inches)
Suspension type Knuckle, spindle
Rear lift method 1-inch lift block and U-bolts
Tire and wheel fit 285/70R17 on 17×8, 325/60R18 on 18×9, 325/50R20 on 20×9; 5-inch backspacing
Shocks Stealth monotube shocks; rear Stealth shocks
Tire clearance Clearance is for 33-inch tires.

Vehicle fitment

It fits the 2007–2013 Chevrolet Silverado 1500 and the 2007–2013 GMC Sierra 1500.

The list covers the 1500 trucks in those years only, so the 2500 HD and 3500 HD models are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The spindles bolt in as direct replacements, and the stock ball joints remain in use. The kit causes some loss of turning radius.

What’s included

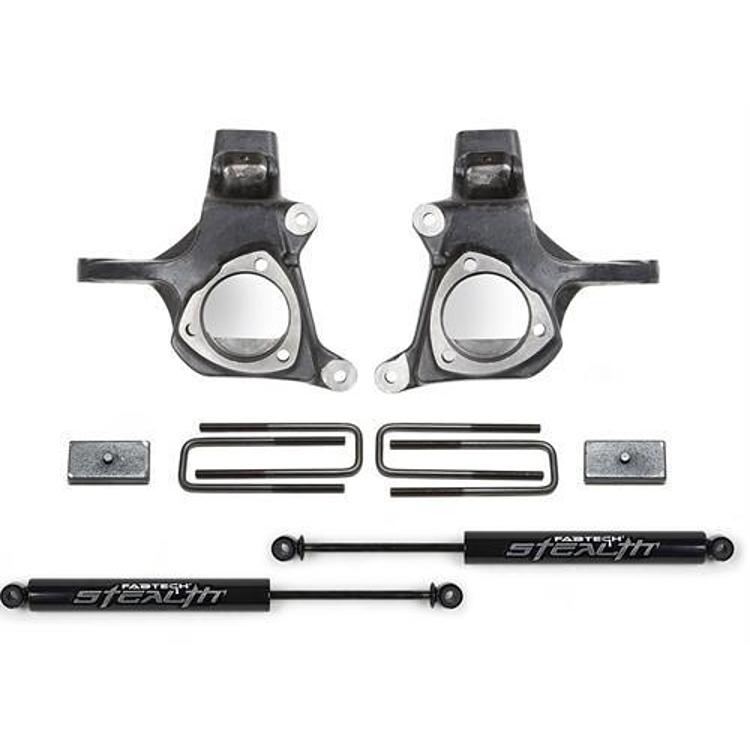

Front spindles, a 1-inch rear block and U-bolt kit, and Stealth monotube shocks plus rear Stealth shocks.

SKU: FABK1050M Category:

Specification

Shipping weight 84.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002007–2013Hybrid, LS, LT, LTZ, WT, XFE
GMC Sierra 15002007–2013Denali, Hybrid, SL, SLE, SLT, WT, XFE

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K1050M fit a 2009 Sierra 1500?

Yes. It fits the 2007–2013 GMC Sierra 1500, so a 2009 model falls within those years. Confirm fit for your vehicle's year, model and trim before ordering.

Does the K1050M change the ball joints?

No. The spindles are direct replacements for the factory part and keep the stock ball joints in use. A 1-inch rear block and U-bolt kit lifts the rear, and the Stealth shocks are included.

How much tire clearance does the K1050M give?

Yes, the kit has clearance for 33-inch tires. Recommended tire sizes are 285/70R17 on 17x8 wheels, 325/60R18 on 18x9 wheels and 325/50R20 on 20x9 wheels. Minor trimming may be needed, and a 5-inch backspacing applies.

Do the spindles need an alignment after installation?

Yes. Changing the spindles alters the front geometry, so have the alignment checked, including caster, before taking the vehicle on extended trips. Recheck the fasteners after the first few drives as well.
