Fab Fours Winch Front Bumper with Pre-Runner Guard (Black) – FF15-H3252-1

Fab Fours

Shop Ford F-150 Front Bumpers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pre-runner winch bumper for 2015 to 2017 Ford F-150
  • Winch mount for up to 12,000 lb winches
  • 3/4-inch D-rings plus fog and turn lights
  • 3/16-inch steel, matte black powder coat

Description

Overview

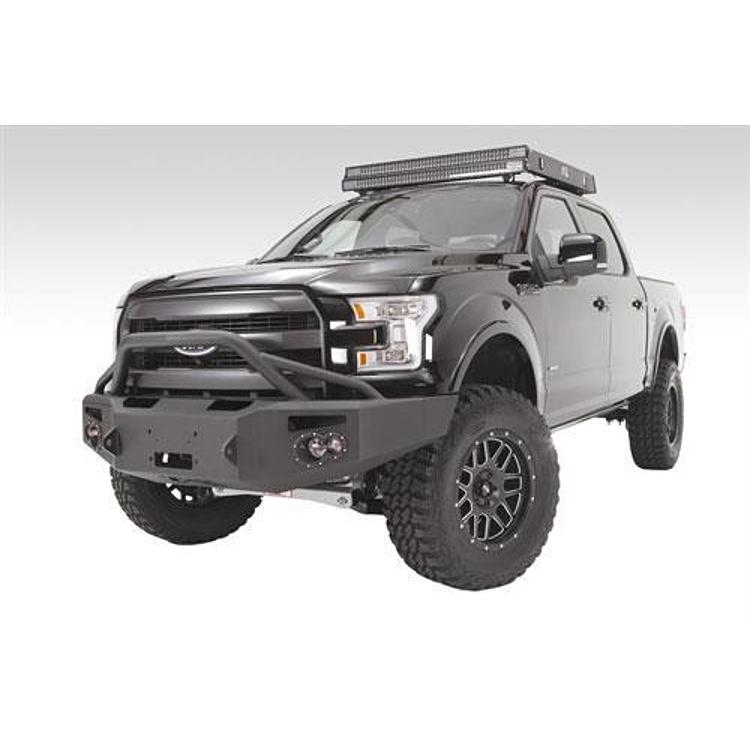

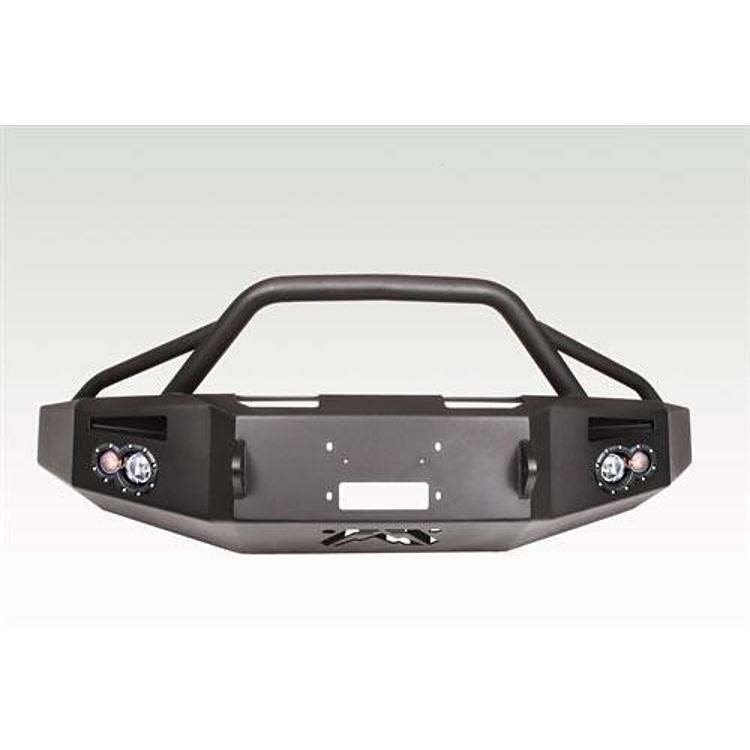

The Fab Fours FF15-H3252-1 is a winch front bumper with a pre-runner guard for 2015 to 2017 Ford F-150 trucks, in black powder coat and sized for winches up to 12,000 lb.

The pre-runner guard sits between the plain winch bumper and the full guard version, adding front protection without a full grill. It comes with 90mm fog lights and 60mm turn indicator lights, and the shape gives more tire clearance so the tires are less likely to rub.

The 1/4-inch boxed mounting system can be adjusted to fit Fab Fours’ injection molded light housings, which allows a custom fit. A full guard version and a base version are also available. The pre-runner guard suits owners who want a guard but not the full grill.

Key features

  • Pre-runner guard design
  • Winch ready for winches up to 12,000 lb or smaller
  • 3/4-inch D-ring mounts
  • Boxed 1/4-inch mounting system with adjustability
  • 90mm fog and 60mm turn indicator lights included
  • Two-stage matte black powder coat
  • 3/16-inch steel
  • Made in the USA

Winch bumper setup and upkeep

Mounting a winch to a bumper concentrates force at a few points, so the mount, bolts and frame brackets should be checked regularly. Tighten fasteners after the first few drives and again periodically, and look for any gap opening between the winch and its mount. A pre-runner guard adds front coverage, but it also adds weight to the nose, which is worth considering when the winch is installed.

Power is the other key item. A winch draws heavy current, so a fused feed sized for the winch and a solenoid placed close to the battery are standard practice. Lights should run through their own circuit so that a winch load does not dim them during a recovery. Route all wiring away from hot exhaust parts and moving suspension components.

Before a trail trip, check the winch cable for fraying, confirm the hook and fairlead are clean, and make sure the recovery gear is rated for the load. Tire clearance around a guard should also be checked after tire changes, since a larger tire can change how close the tread sits to the bumper.

  • Winch mount bolts checked after first drives
  • Fused feed and solenoid close to battery
  • Winch cable inspected for fraying before trips

Specifications

Brand Fab Fours
Part number FF15-H3252-1
UPC 5810109790
Type Winch front bumper with pre-runner guard
Position Front
Width Full
Material 3/16-inch steel
Finish Two-stage matte black powder coat
Fit type Direct fit
Winch mount Included (up to 12,000 lb winches)
D-ring mounts Included, 3/4-inch
Lights 90mm fog and 60mm turn indicator lights included

Vehicle fitment

Fab Fours lists FF15-H3252-1 for the 2015 to 2017 Ford F-150.

The list stops at 2017, so the 2018 F-150 is not covered, and the 2009 to 2014 trucks are not either. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The winch goes on the mount provided; use a fused power feed. The included lights are wired into the truck’s harness.

What’s included

  • Winch front bumper with pre-runner guard
  • Winch mount
  • 3/4-inch D-ring mounts
  • 90mm fog and 60mm turn indicator lights

Not included: The winch and its wiring.

SKU: FFIFF15-H3252-1 Category:

Specification

Shipping weight 320.00 lbs
Package dimensions 90.00 × 42.00 × 37.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1502015–2017King Ranch, Lariat, Limited, Platinum, SSV, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What guard does the FF15-H3252-1 have?

It has Fab Fours' pre-runner guard. The H3250 number is the full guard version and the H3251 number has no guard, in the same winch bumper family.

Can it carry a 12,000 lb winch?

Yes. The built-in winch mount accepts winches up to 12,000 lb or smaller. The winch is not included, so it is added separately.

Does the bumper include lights and D-rings?

Yes. It comes with 90mm fog lights, 60mm turn indicator lights and 3/4-inch D-ring mounts, all part of the same Fab Fours bumper.

Does the FF15-H3252-1 fit the 2016 F-150?

Yes. The bumper fits the 2015 to 2017 Ford F-150, which includes the 2016 model year, so a 2016 truck can use this pre-runner winch bumper. Confirm fit for your vehicle's year, model and trim before ordering.

How often should a winch bumper be inspected?

Check the mounts and fasteners before each trip where the winch will be used and after any hard recovery. Look at the winch cable, hook and fairlead for wear. A quick inspection of the wiring connections at the solenoid also helps catch corrosion before it causes a failed pull.
