Overview

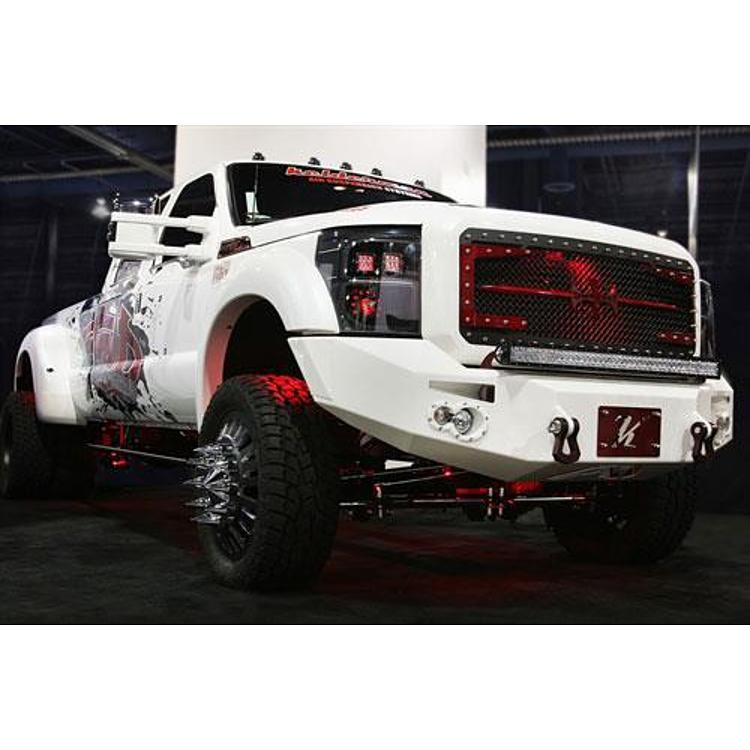

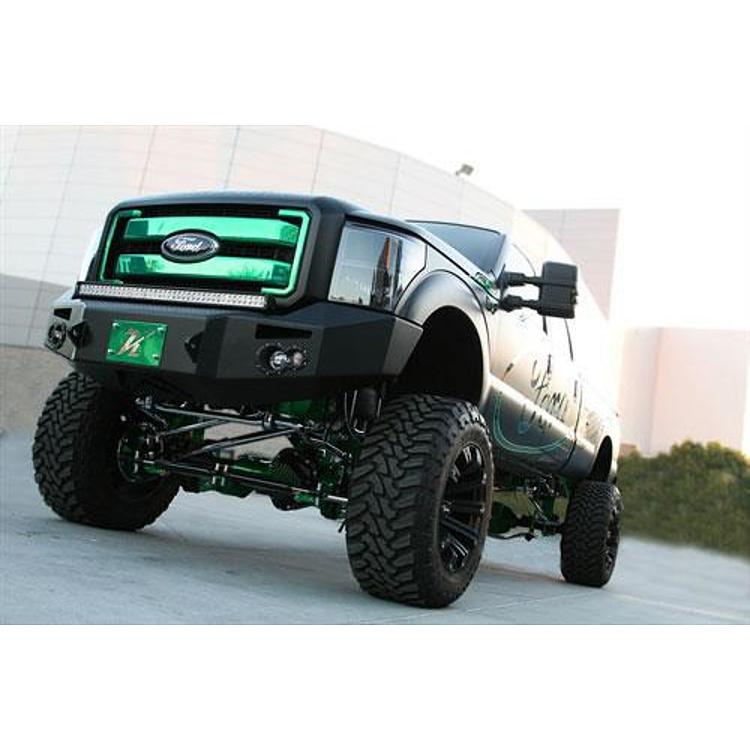

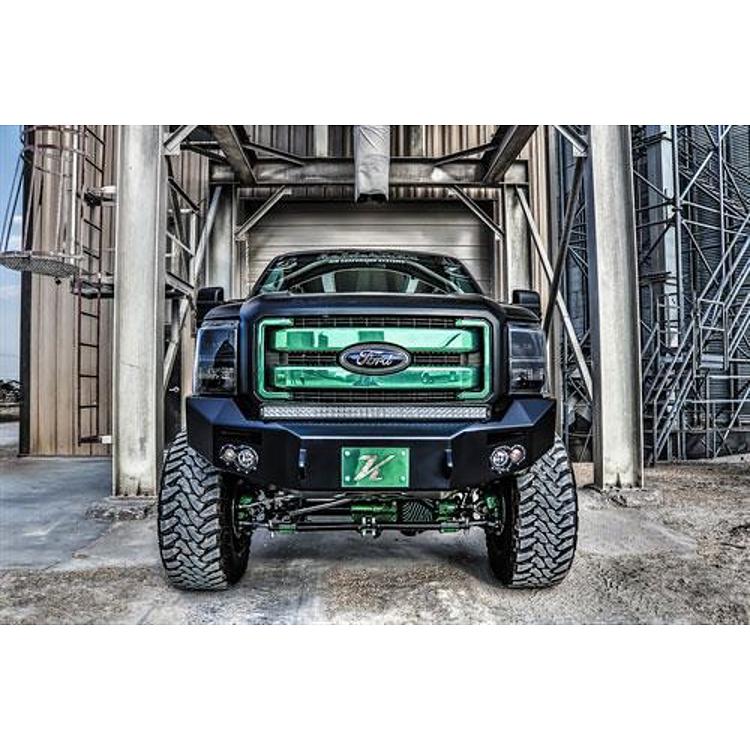

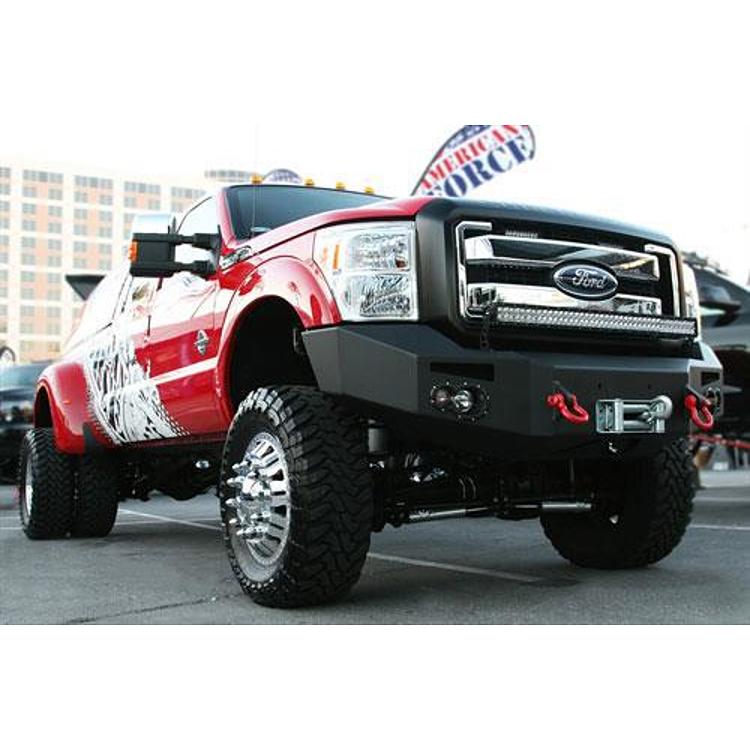

The Fab Fours FS11-A2551-1 is a heavy duty winch front bumper with lights and D-ring mounts for the 2011 to 2016 Ford F-250 Super Duty and F-350 Super Duty. It is steel with a black powder coat.
The Premium winch bumper is built for strength and durability and gives more tire clearance to reduce rubbing. It accepts winches of 16,500 lb or smaller and has 3/4-inch D-ring mounts, integrated fog and turn lights, and air ducts.
The 1/4-inch boxed mounting system is adjustable, so the bumper can be set up for a custom fit, and the light housings are injection molded.
Key features
- Winch bumper with lights and D-rings for 2011 to 2016 Ford F-250 and F-350 Super Duty
- Winch ready for winches of 16,500 lb or smaller
- 3/4-inch D-ring mounts included
- 90mm fog lights and 60mm turn indicators included
- Air ducts and injection molded light housings
- Adjustable 1/4-inch boxed mounting system
- Combination of 1/4-inch and 3/16-inch steel
- Matte black powder coat; -B in the part number means bare steel
- Made in the USA
Wiring the auxiliary lights
Fog lights and turn indicators on a winch bumper add useful light for trail and night driving, but they need a clean power supply and sensible aiming. Run the wiring through protected routes, use a fuse at the battery end and keep the connections sealed against water and mud. Mount the lights so they are not struck by brush, and check that the housings stay secure after rough trail use.
Aim the fog lights low so they light the surface ahead without throwing glare into oncoming traffic. Turn indicators with LED bulbs can cause the flash rate to speed up on some trucks, so confirm the turn signal works as expected after the wiring is complete.
- Fuse the lights close to the battery
- Seal connections against water and mud
- Aim fog lights low and level
- Confirm turn signal flash rate after wiring
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FS11-A2551-1 |
| UPC | 5810100636 |
| Product type | Heavy duty winch front bumper with lights and D-ring mounts |
| Position | Front |
| Width | Full |
| Material | Steel, 1/4-inch and 3/16-inch combination |
| Finish | 2 stage matte black powder coat |
| Winch capacity | 16,500 lb winch or smaller |
| D-ring mounts | 3/4-inch, included |
| Lights | 90mm fog lights and 60mm turn indicators, included |
| Winch mount | Included |
Vehicle fitment
The FS11-A2551-1 is listed by Fab Fours for the 2011 to 2016 Ford F-250 Super Duty and 2011 to 2016 Ford F-350 Super Duty.
Super Duty trucks from 2010 and earlier, and from 2017 on, are not covered by this part. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Adjust the boxed mounting system to get the fit you want. Mount the winch to the built-in tray and wire the fog and turn lights.
What’s included
- Front winch bumper without guard
- D-ring mounts
- 90mm fog lights
- 60mm turn indicator lights
- Winch mount
Not included: The winch and wiring.
