Overview

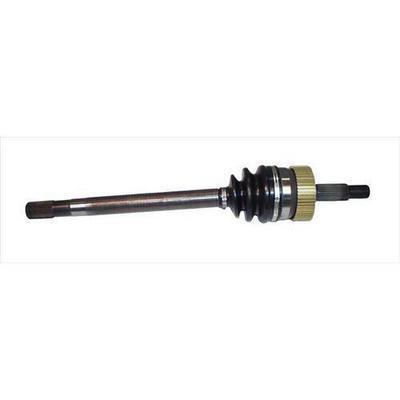

The Crown Automotive 4720381 is a CV-type front driver side axle shaft assembly for a Dana 30 reverse axle, with 27 splines. It fits the 1993–1998 Jeep Grand Cherokee (ZJ).
It is a Dana 30 driver axle shaft assembly.
Key features
- CV-type driver side shaft assembly
- Front left position
- Dana 30 reverse axle type
- 27 splines
How the axle shaft works
An axle shaft carries torque from the differential to the wheel hub, and on a vehicle with independent or solid axles it also has to handle the angle changes that come with suspension travel. CV-type shafts use constant-velocity joints at each end, which let the shaft transmit power through steering and suspension angles without the rotational speed varying. That is why CV-style shafts are common on vehicles that steer and articulate through trail obstacles.
Shafts usually wear at the joints first. Look for torn or split boots, grease leaking onto the wheel, clicking when turning under throttle, and vibration that increases with speed. Any of these signs suggest the shaft or its boot needs attention, and a damaged boot lets dirt into the joint, shortening its life.
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 4720381 |
| Axle maker | Dana |
| Axle location | Front |
| Position | Front left, driver side assembly |
| Axle type | Dana 30 Reverse |
| Axle spline | 27 splines |
| Joint type | CV |
Vehicle fitment
It fits the 1993–1998 Jeep Grand Cherokee (ZJ) in 5.9 Limited, Base, Laredo, Limited, Orvis, SE and TSi trim.
Compare the 27 splines and the Dana 30 reverse axle type with the shaft being replaced before fitting.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One Dana 30 driver side axle shaft assembly.
