Overview

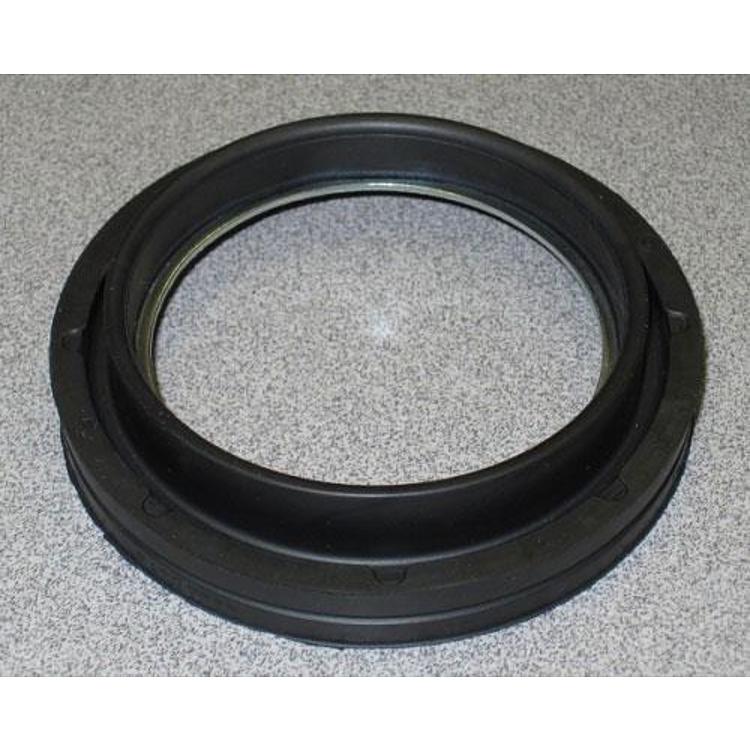

The Dana Spicer 50381 is a front spindle seal for Dana 60 axles, in a 1992-97 Ford-style design. It fits where the original style seal fits.
The seal fits where the original style seal fits, once the stub axle slinger is removed.
Key features
- Ford late model seal design
- Designed to keep water and grime out better than the V-lip style.
- Fits the original seal position on Dana 60 axles
- Stub axle slinger removal required
Spindle seal replacement
A front spindle seal keeps water, grit and lubricant where they belong at the wheel end. Over time the lip hardens or grooves, and moisture can work into the bearing area. Replacing the seal before a leak appears is a simpler job than repairing a contaminated bearing.
Before fitting, clean the seal bore and check the surface the lip rides on for grooves or rust. Keep the new seal square in the bore and avoid damaging the lip during install. Inspect the bearings and hub surfaces at the same time, since a wet seal often means water has already reached them.
- Clean the seal bore before fitting
- Check the lip surface for grooves
- Keep the seal square in the bore
- Inspect bearings when the seal is replaced
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 50381 |
| UPC | 23913145316 |
| Axle location | Front |
| Axle type | Dana 60 |
| Seal style | 1992-97 Ford-style, late model |
| Fits position of | Original style seal |
Vehicle fitment
Fitment is given by axle and seal style, not by vehicle. The Dana 60 front axle is the match, and no model or year range is named.
Installation notes
Remove the stub axle slinger before the seal is fitted.
What’s included
Only the seal is described; no other hardware is mentioned.
