Overview
The Dana Spicer spindle seal kit, part number 706527X, is a seal set for the front spindle on Dana 30 and Dana 44 axles, including the GM 10 bolt 8.5 inch axle type. It is meant to keep the spindle sealed from the elements, which helps protect the axle and bearings.

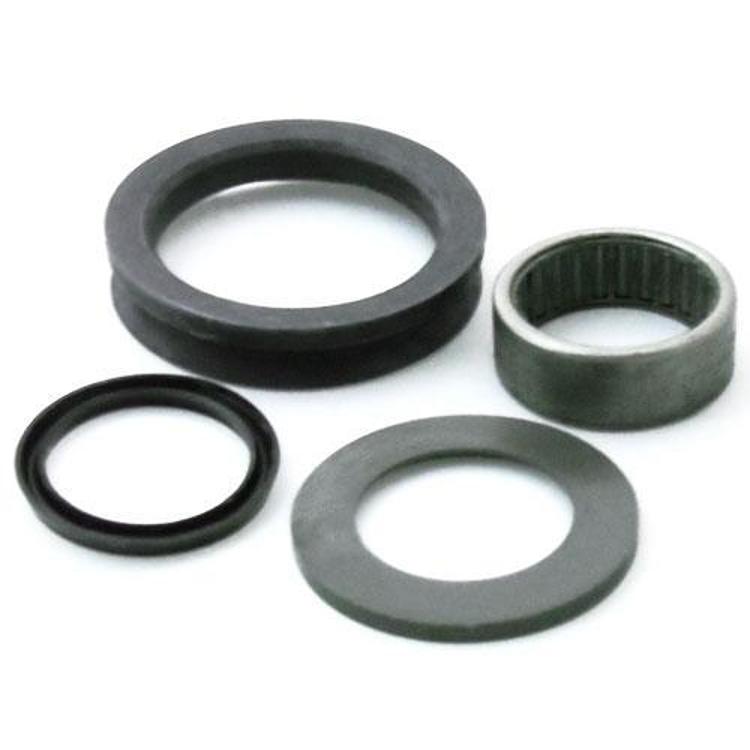

The kit contains an inner spindle bearing, a v-lip seal, a nylon thrust washer and a stub axle seal. These four parts are meant to keep the front spindle sealed.
Key features
- Inner spindle bearing included
- V-lip seal included
- Nylon thrust washer included
- Stub axle seal included
- Fits front Dana 30 Standard, Dana 44 and GM 10 bolt 8.5 inch axles.
Spindle seal kit service tips
A spindle seal kit is a set of wear parts, so it is usually replaced as a unit when the spindle is opened. The inner bearing carries the load of the hub, and the seals keep grit and water away from it. A kit replacement is most efficient when the hub, outer bearing and brake parts are already off the axle.
Before reassembly, inspect the stub axle, the thrust surface and the spindle bore for wear, since new seals will not hold against a grooved surface. Pack the bearing with grease as the installation requires, and keep the nylon thrust washer clean. Look for grease on the brake parts or inside the wheel as early signs of a seal leak.
- Inspect the stub axle surface
- Check the spindle bore for wear
- Replace worn hub or outer bearings with the kit
- Keep grit out of the bearing during assembly
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 706527X |
| UPC | 23913148492 |
| Kit contents | Inner spindle bearing, v-lip seal, nylon thrust washer, stub axle seal |
| Axle location | Front |
| Axle types | Dana 30 Standard, Dana 44, GM 10 Bolt 8.5 Inches |
| Fitment | Universal fit |
Vehicle fitment
Fit is by axle type, covering front Dana 30 Standard, Dana 44 and GM 10 bolt 8.5 inch axles. Fit is universal across those types.
Dana 30 Reverse, Dana 30 TJ and other axle types are not part of this fit. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Because the parts come as one kit, check all four components against the old spindle hardware before installing.
What’s included
The kit includes the inner spindle bearing, v-lip seal, nylon thrust washer and stub axle seal. Not included: Other spindle, hub and outer bearing parts are not in the kit, so check them before starting.
