Dana Spicer Dana 30 Spindle Oil Seal – 34783

Dana Spicer

Shop Dana Spicer Spindle Seals on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer Dana 30 spindle oil seal, part number 34783
  • Front axle location; Dana 30 standard axle type
  • UPC 23913138509
  • No vehicle fitment listed; check your axle and vehicle before ordering

Description

Overview

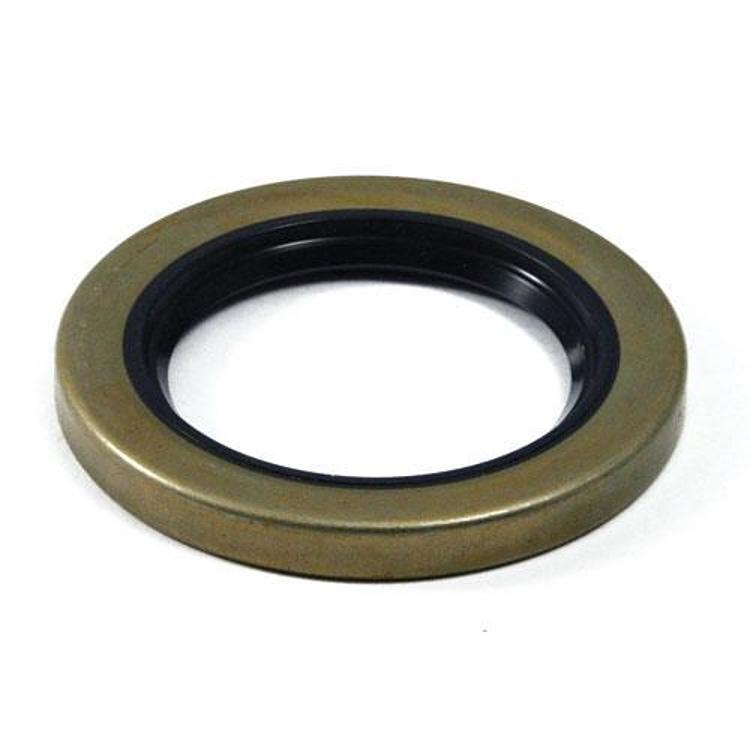

The Dana Spicer Dana 30 spindle oil seal, part number 34783, is a front seal for the Dana 30 standard axle type. A spindle seal sits at the wheel end of the axle, where it helps keep lubricant in and dirt out.

Dana Spicer describes its drivetrain parts as precision engineered. No test results or certifications are given for this seal.

Spindle seal basics

A spindle oil seal sits at the wheel end and keeps lubricant inside the axle while blocking dirt and water. When it wears, the first sign is often a light film of oil on the inside of the wheel or a rough, dry hub. Catching it early keeps the bearings from running dry or picking up grit.

Before replacing the seal, clean the seal bore and check the surface the lip rides on for grooves. Install the new seal square and avoid nicking the lip. Bearings and spindle surfaces should be looked at during the same job, since contamination often reaches them before the seal fails completely.

  • Look for oil film on the inside of the wheel
  • Clean the seal bore before fitting
  • Check the lip surface for grooves
  • Inspect bearings during the same job

Specifications

Brand Dana Spicer
Part number 34783
UPC 23913138509
Axle location Front
Axle type Dana 30 Standard

Vehicle fitment

Fitment is by axle: the Dana 30 standard front axle. Confirm your axle type before ordering.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

One oil seal is included. Check your axle and confirm your vehicle before ordering.

SKU: D/S34783 Category:

Specification

Shipping weight 0.10 lbs
Package dimensions 3.50 × 3.50 × 1.40 in
brands

Questions & Answers

What is Dana Spicer part number 34783?

Part number 34783 is a Dana Spicer Dana 30 spindle oil seal with UPC 23913138509. It is for the front axle location and the Dana 30 standard axle type.

Does this seal fit my vehicle?

Fit depends on the axle, so match your Dana 30 standard front axle before buying. Confirm the year, make, model and trim of your vehicle first.

What is the UPC for this seal?

The UPC is 23913138509, and part number 34783 is the main identifier. Compare the seal dimensions against your old seal before fitting.

How do I know the spindle oil seal needs replacing?

An oil film on the inside of the wheel, a dry or discolored hub, or water in the wheel end all point to a failing seal. Inspect the seal once the wheel is off and replace it if the lip shows wear.

Should the wheel bearings be checked when replacing the seal?

Yes. Contamination from a leaking seal often reaches the bearings, so check them for play, roughness and discoloration during the same job. Replace any bearing that shows wear.
