Overview

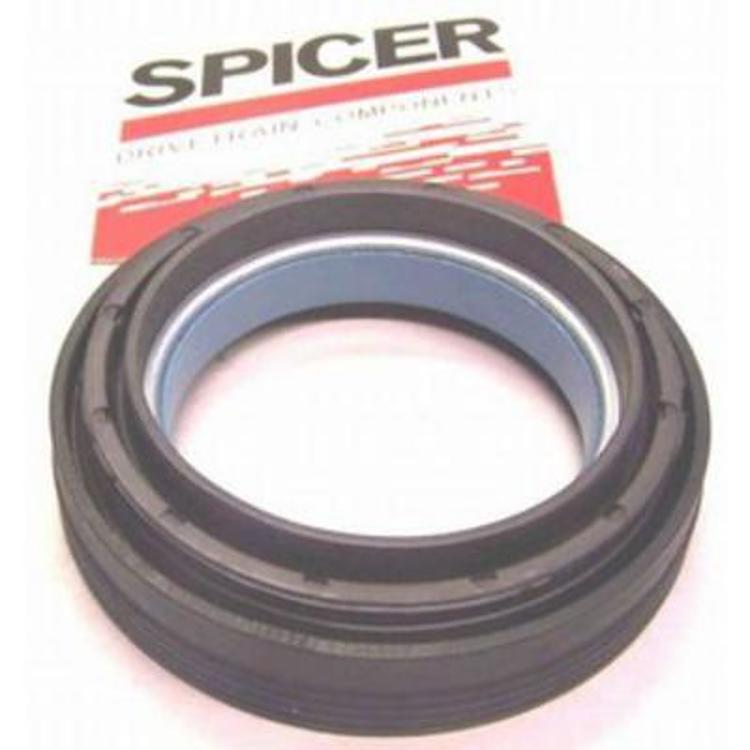

The Dana Spicer Dana 60 Spindle Seal, part number 50491, is a front spindle seal in the Ford late model style. It is for the Dana 60 axle, and the Dana 50 is also covered.
The Ford late model seal seals out water and grime better than the original V-lip style, which helps keep contamination out of the spindle. It fits where the original style seal fits once the stub axle slinger is removed.
Key features
- Dana 60 spindle seal
- Ford late model style, 1997–2010 Ford-style seal
- Described by Dana Spicer as sealing out water and grime better than the original V-lip style
- Fits where the original style seal fits, with removal of the stub axle slinger
- Front axle location; direct fit
Replacing a spindle seal
A spindle seal keeps water, dirt and grit away from the wheel bearings and the spindle bore. Once the seal is worn or hardened, contamination can work its way in and shorten bearing life. Replacing the seal while the hub is apart makes sense, since the access work is the same.
Before pulling the stub axle slinger, mark or note the position of the hub and bearing parts so the reassembly is correct. Clean the spindle surface, check for pitting or grooves, and install the new seal square and fully seated. Re-check the hub torque and look for leaks after the first drives.
- Inspect the spindle surface for grooves
- Clean old grease from the bore
- Install the seal square and fully seated
- Check for leaks after the first drives
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 50491 |
| UPC | 23913145392 |
| Product type | Spindle seal |
| Axle type | Dana 60 and Dana 50 front axles |
| Axle location | Front |
| Seal style | Ford late model, 1997-2010 Ford-style |
| Fitment type | Direct fit |
Vehicle fitment
Confirm fit for your axle assembly and vehicle before ordering, since the seal is matched by axle and seal style.
It fits where the original style seal fits after removing the stub axle slinger. Match the year, model and trim of your vehicle before buying.
Installation notes
Driveline and axle seal work is safety-critical and often needs special tools, so professional installation is a sound choice. Support the vehicle on rated jack stands, never on a jack alone. Tighten fasteners to the torque values in the service instructions, and re-check them after the first miles of driving and again after off-road use. Use fresh fluid at the correct level and check for leaks after the first miles.
What’s included
One spindle seal.
Not included: Wheel bearings, grease and gaskets are not part of this seal.
